1976 Kawasaki KD80 Gear Change Mechanism Diagram

← All diagrams

Find the part on the Gear Change Mechanism diagram for your 1976 Kawasaki KD80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

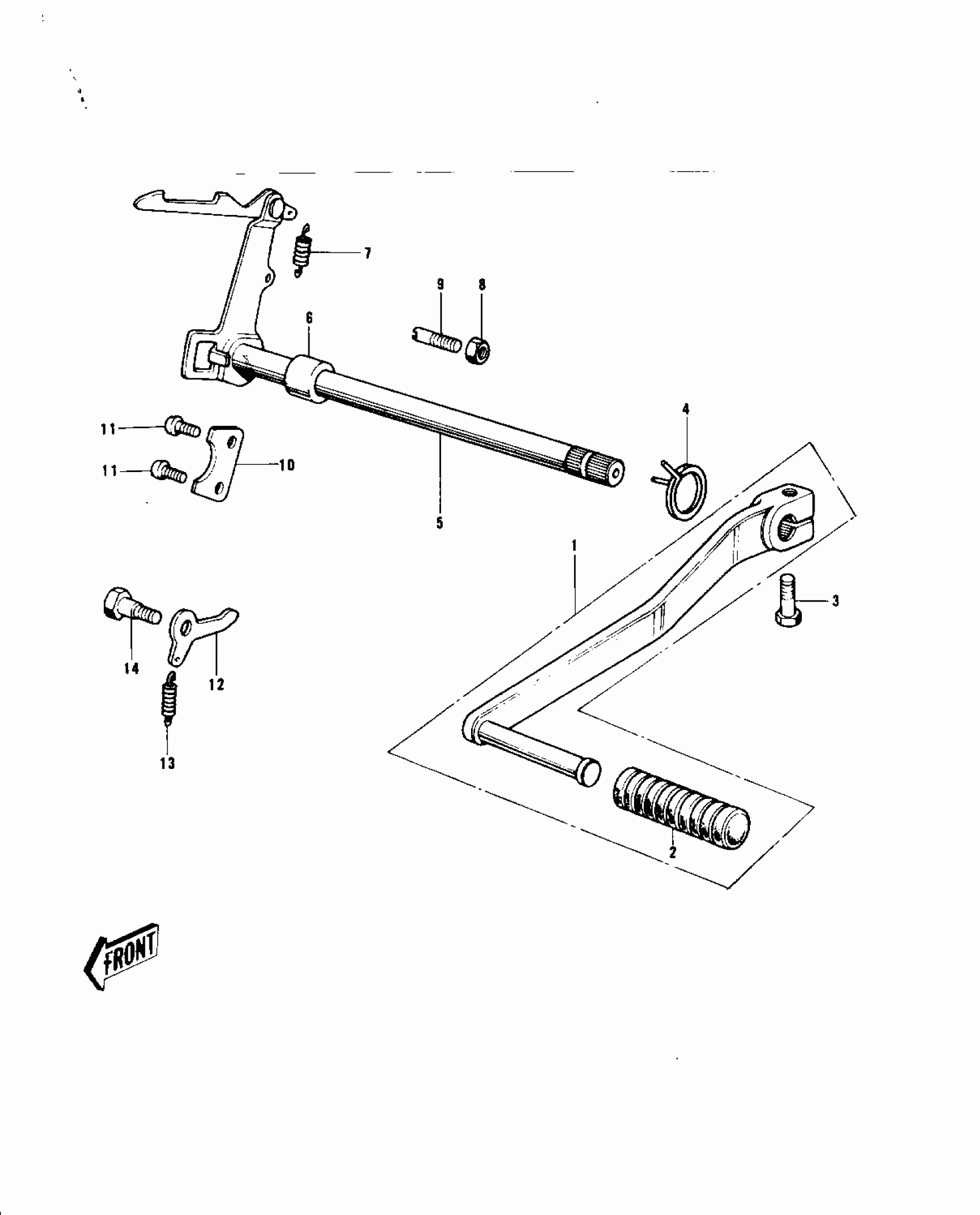

1976 Kawasaki KD80 Gear Change Mechanism Diagram

#

Description
Price
Status
Order Qty

1

LEVER-ASSY-CHANGE

13242-004

Out of stock

2

DAMPER,CHANGE PEDAL

13157-004

Out of stock

3

BOLT-UPSET,6X20

112G0620

Out of stock

4

SPRING,TENSION

92081-1129

$7.48

In stock

5

LEVER ASSY,GEAR CHNG

13161-1014

Out of stock

6

COLLAR,12X18X11.5

92027-121

Out of stock

7

SPRING,CHANGE LEVER

92144-1720

$4.32

In stock

8

NUT 8MM

312B0800

Out of stock

9

BOLT,RETURN SPRING

92001-1401

$4.17

In stock

10

PLATE CHNG DRUM PSTN

13169-002

Out of stock

11

$1.32

In stock

12

LEVER GEAR CHNG DRUM

13168-005

Out of stock

13

$3.69

In stock

14

$4.71

In stock
