1976 Kawasaki KD80 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1976 Kawasaki KD80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

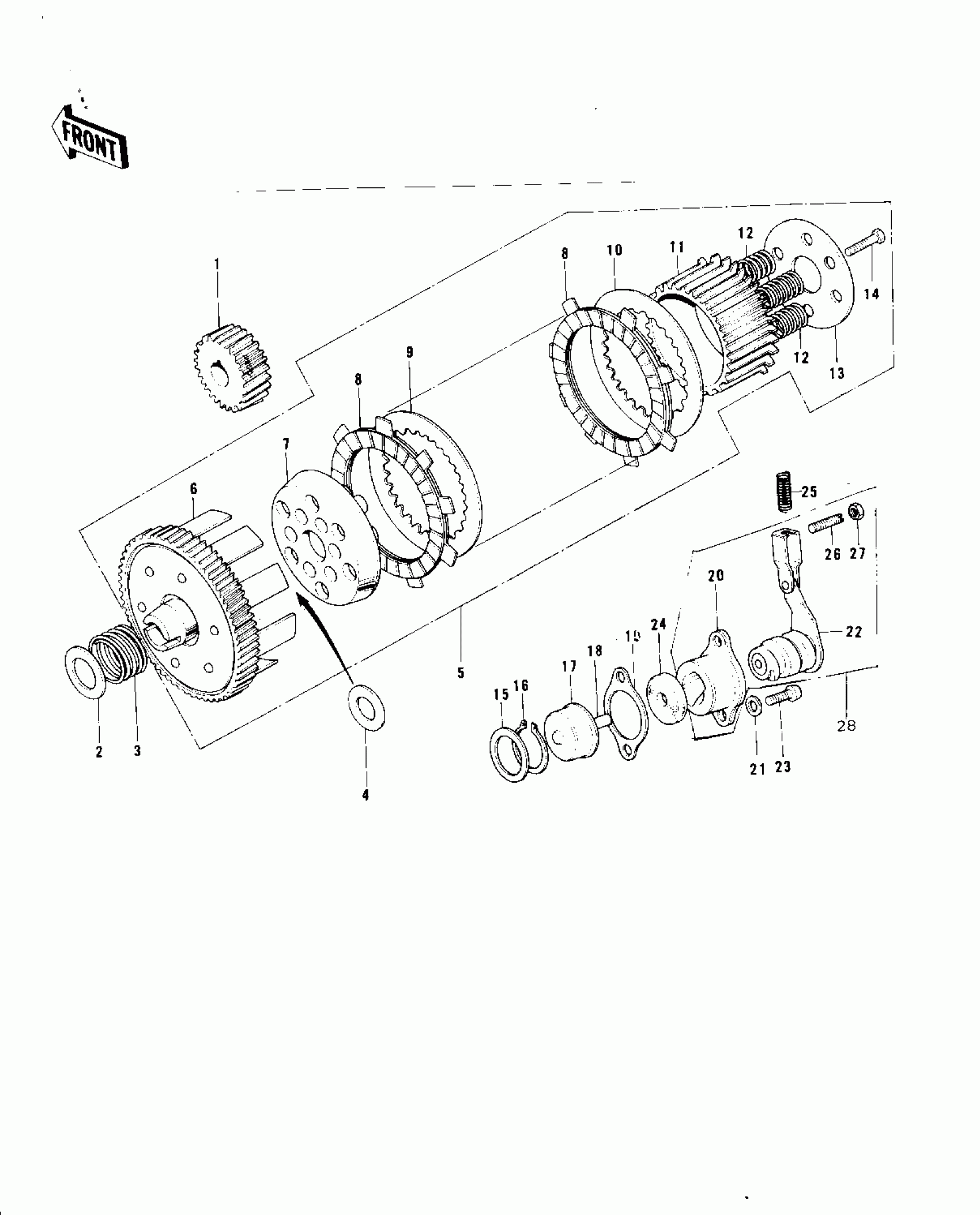

1976 Kawasaki KD80 Clutch Diagram

#

Description
Price
Status
Order Qty

1

PINION,PRIMARY

13121-032

$95.91

In stock

2

WASHER,25.5X36X1

92022-057

$3.92

In stock

3

SPRING,CLUTCH DAMPER

92081-015

Out of stock

4

WASHER,16.5X27X1.4

92022-054

$8.03

In stock

5

CLUTCH-ASSY

13081-028

Out of stock

6

HOUSING-COMP-CLUTCH

13095-022

Out of stock

7

WHEEL-CLUTCH

13086-1002

$45.84

In stock

8

PLATE-FRICTION

13088-1103

Out of stock

9

PLATE-CLUTCH,STEEL

13089-1009

$11.12

In stock

10

PLATE CLUTCH OUTER

13090-004

Out of stock

11

HUB-CLUTCH

13087-1011

$92.86

In stock

12

SPRING,CLUTCH

92081-012

$5.44

In stock

13

$17.20

In stock

14

BOLT-UPSET

112G0516

Out of stock

15

WASHER,THRUST,16.5X21X0.8

92022-053

Out of stock

16

$3.43

In stock

17

PUSHER-COMP-CLUTCH

13113-003

Out of stock

18

PIN,DOWEL,7X20

92042-043

$4.34

In stock

19

GASKET,CLUTCH RELEASE

11060-1197

Out of stock

20

RELEASE-ASSY-CLUTCH

13231-1008

$77.01

In stock

21

$1.19

In stock

22

RELEASE-ASSY-CLUTCH

13231-1008

$77.01

In stock

23

SCREW-PAN-CROS,6X16

220B0616

Out of stock

24

SEAL-OIL

92050-071

Out of stock

25

$4.51

In stock

26

SCREW-SET,6X16

291H0616

$7.42

In stock

27

NUT 6MM

312B0600

Out of stock

28

RELEASE-ASSY-CLUTCH

13231-1008

$77.01

In stock
