1990 Kawasaki KD80 Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 1990 Kawasaki KD80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

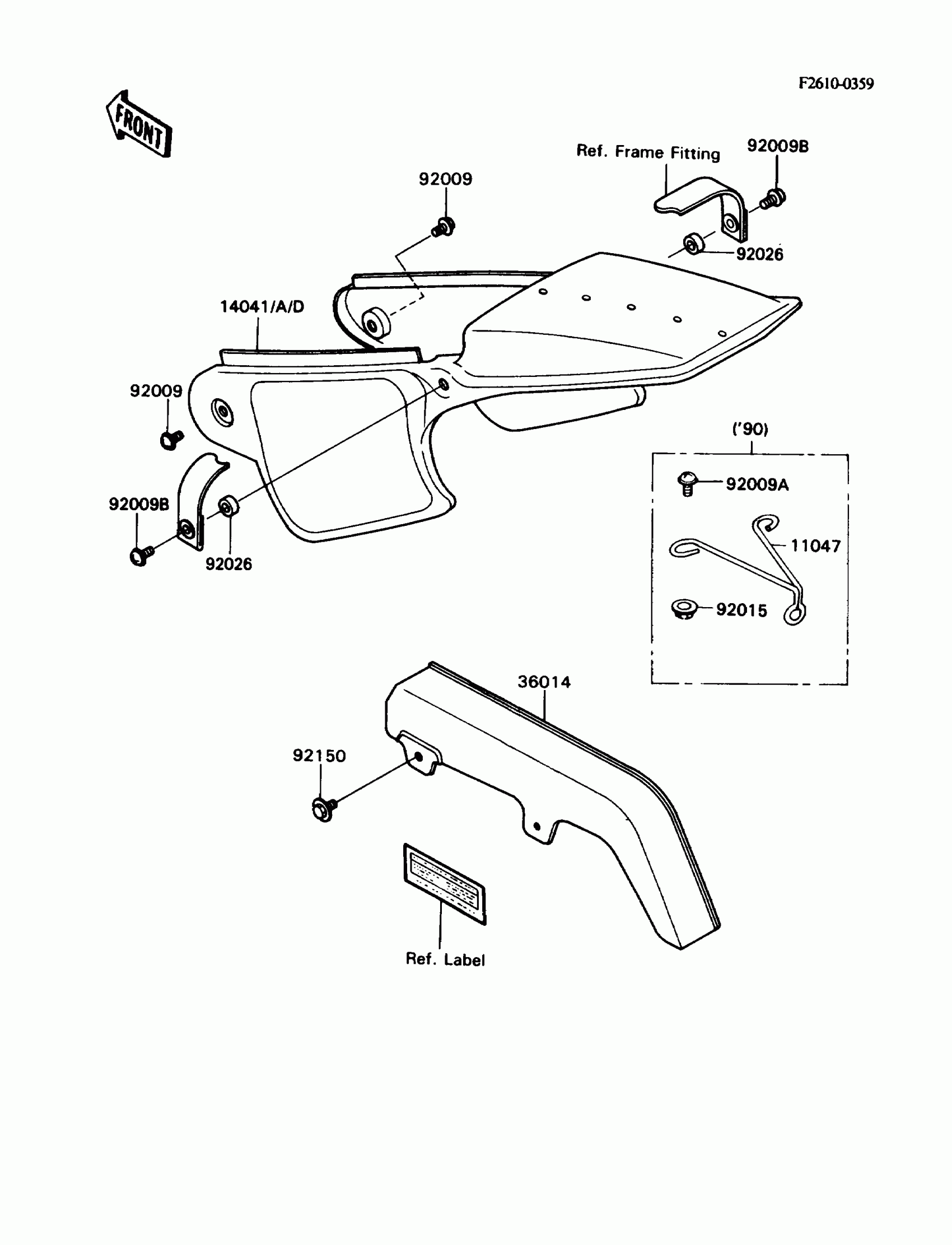

1990 Kawasaki KD80 Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11047

BRACKET,REFLECTOR

11046-1948

1
Out of stock

14041D

COVER-COMP,SIDE,L.GREEN

14041-5007-6W

1
Out of stock

36014

CASE-CHAIN

36014-1152

1

$43.08

In stock

92009

SCREW,6X10,WHITE

92009-1286

1
Out of stock

92009A

SCREW,6X14,WHITE

92009-1287

1
Out of stock

92009B

SCREW,6X22

92009-1441

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1699

1

$4.34

In stock

92026

SPACER,8X16X5.5

92026-1352

1

$4.22

In stock

92150

BOLT,6X14

92150-1133

1

$3.57

In stock
