1979 Kawasaki KD175-A4 Rotary Valve Cover Diagram

← All diagrams

Find the part on the Rotary Valve Cover diagram for your 1979 Kawasaki KD175-A4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

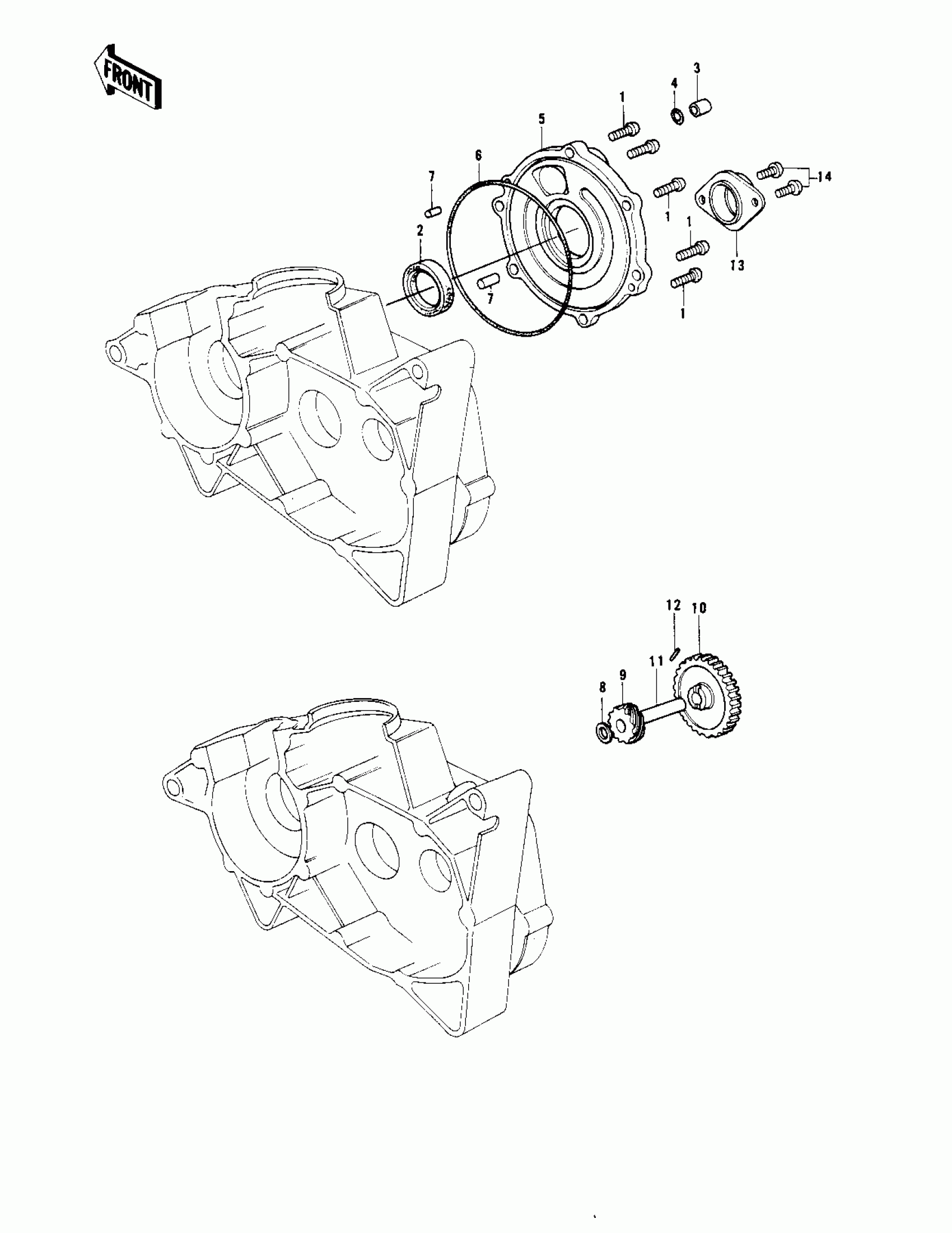

1979 Kawasaki KD175-A4 Rotary Valve Cover Diagram

#

Description
Price
Status
Order Qty

1

SCREW-PAN-CROS,6X20,WHITE

220B0620

Out of stock

2

OIL SEAL TB32457

653B324507

Out of stock

3

COLLAR,VALU COVER

92027-243

Out of stock

4

"0" RING,CHECK VALVE

92055-037

Out of stock

5

COVER,ROTARY DISC VL

14019-053

Out of stock

6

"0" RING,120MM

92055-019

Out of stock

7

ROLLER,5X12

610A0512

Out of stock

8

WASHER THRUST

92026-025

Out of stock

9

GEAR-TACHOMETER

13224-007

Out of stock

10

GEAR-OIL PUMP

16085-016

Out of stock

11

SHAFT-OIL PUMP

16086-002

Out of stock

12

PIN,DOWEL

92042-035

Out of stock

13

HOLDER,CARBURETOR

16065-026

Out of stock

14

SCREW PAN HEAD 6X12

220B0612

Out of stock
