1979 Kawasaki KD175-A4 Oil Pump Diagram

← All diagrams

Find the part on the Oil Pump diagram for your 1979 Kawasaki KD175-A4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

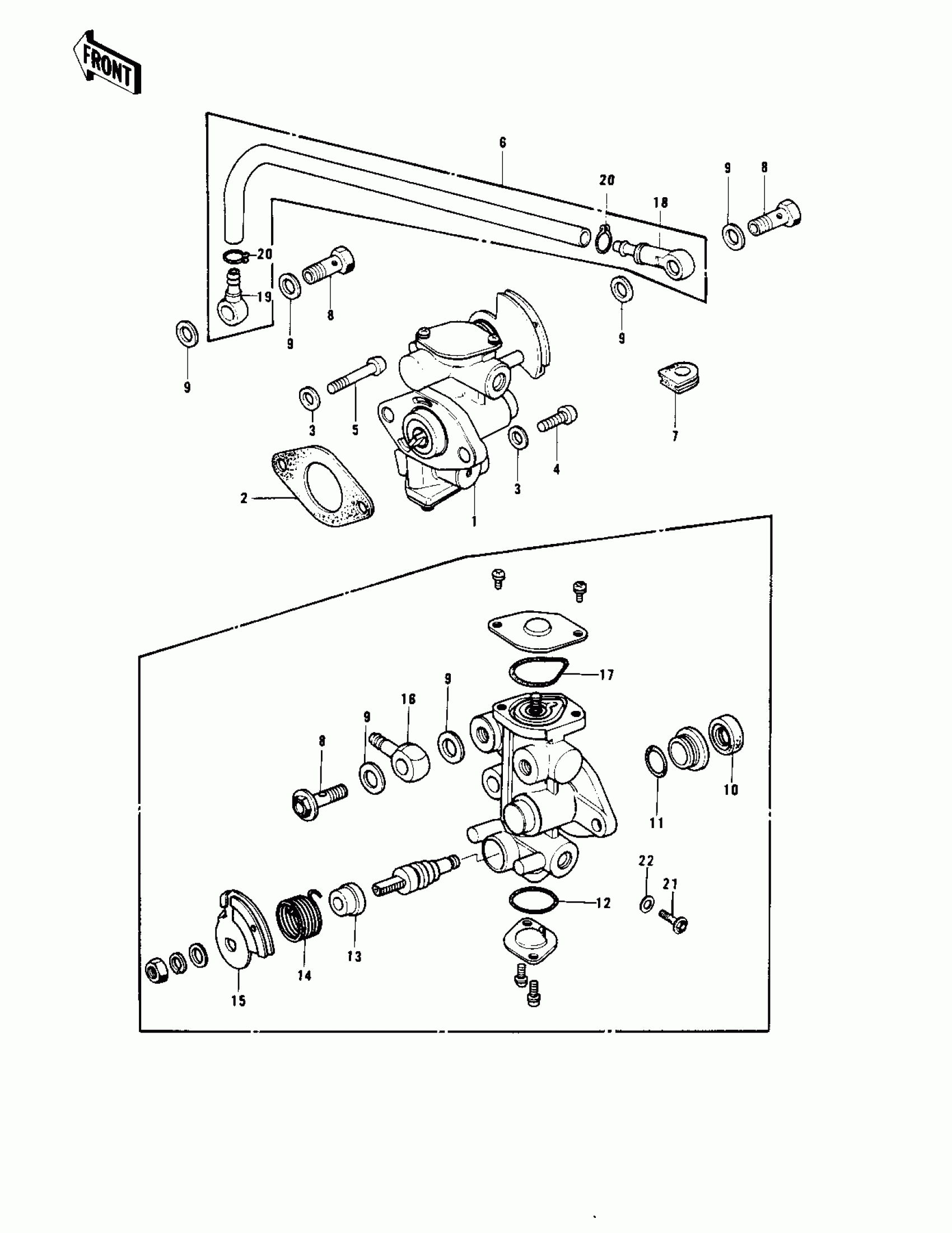

1979 Kawasaki KD175-A4 Oil Pump Diagram

#

Description
Price
Status
Order Qty

1

OIL PUMP ASSY

16082-068

$298.31

In stock

1

OIL PUMP ASSY

16082-068

$298.31

In stock

2

GASKET,OIL PUMP

11060-1160

$4.41

In stock

3

$3.12

In stock

4

SCREW-PAN-CROS

220B0514

Out of stock

5

SCREW-PAN-CROS

220B0528

$1.34

In stock

6

PIPE ASSY,OIL

16134-028

Out of stock

7

GROMMET,OIL PUMP

92071-091

Out of stock

8

BOLT,BANJO,L=16

92060-013

$5.16

In stock

9

$3.13

In stock

10

$5.76

In stock

11

$3.43

In stock

12

"0" RING,LOWER CAP

16090-003

Out of stock

12

RING-O,CAP,CAMSHAFT SIDE

16090-004

Out of stock

13

SEAL-OIL,CAMSHAFT,"X"TYPE

92049-1294

Out of stock

14

$9.95

In stock

15

$12.81

In stock

16

FITTING,BANJO

92061-009

Out of stock

17

$7.84

In stock

18

VALVE-CHECK

16128-009

$22.83

In stock

19

FITTING,BANJO

92061-018

$8.45

In stock

20

RING-SNAP

92036-022

Out of stock

21

BOLT,AIR VENT

92009-1010

Out of stock

22

WASHER

92022-1006

$5.14

In stock
