1979 Kawasaki KD175-A4 Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 1979 Kawasaki KD175-A4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

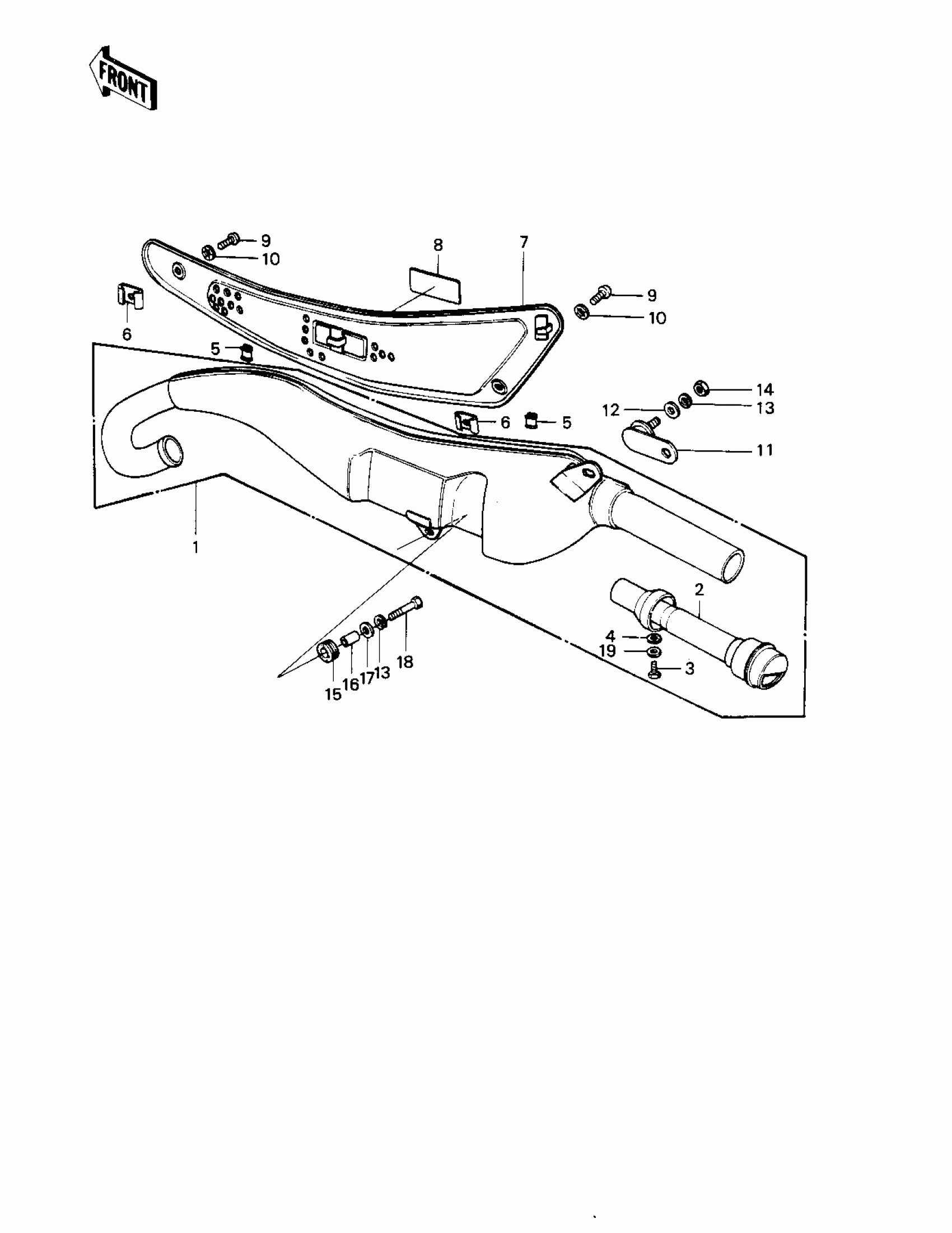

1979 Kawasaki KD175-A4 Muffler Diagram

#

Description
Price
Status
Order Qty

1

MUFFLER ASSY,BLACK

18001-150-21

Out of stock

2

BAFFLE TUBE

18033-091

Out of stock

3

BOLT-UPSET,6X12

112G0612

Out of stock

4

WASHER-PLAIN

92022-183

Out of stock

4

$3.13

In stock

5

INSULATOR

18065-007

Out of stock

6

INSULATOR,HEAT

18065-010

Out of stock

7

COVER,MUFFLER

18064-014

Out of stock

8

EMBLEM,SIDE COVER

56018-220

Out of stock

8

MARK,MUFFLER COVER

56018-1096

$6.66

In stock

9

$4.08

In stock

10

WASHER LOCK 6MM

463H0600

Out of stock

11

BRACKET,MUFFLER

18061-054

Out of stock

12

WASHER,8.5X20X1.6

92022-1561

$3.43

In stock

13

WASHER SPRING 8MM

461F0800

Out of stock

14

NUT,8MM

311B0800

Out of stock

15

DAMPER RUBBER-MUFFLER

18063-005

Out of stock

16

COLLAR

92027-102

$1.00

In stock

17

WASHER,8X26X2.3

92022-1564

$3.43

In stock

18

BOLT-SMALL-UPSET,8X30

115G0830

Out of stock

19

$1.19

In stock
