1979 Kawasaki KD175-A4 Kickstarter Mechanism Diagram

← All diagrams

Find the part on the Kickstarter Mechanism diagram for your 1979 Kawasaki KD175-A4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

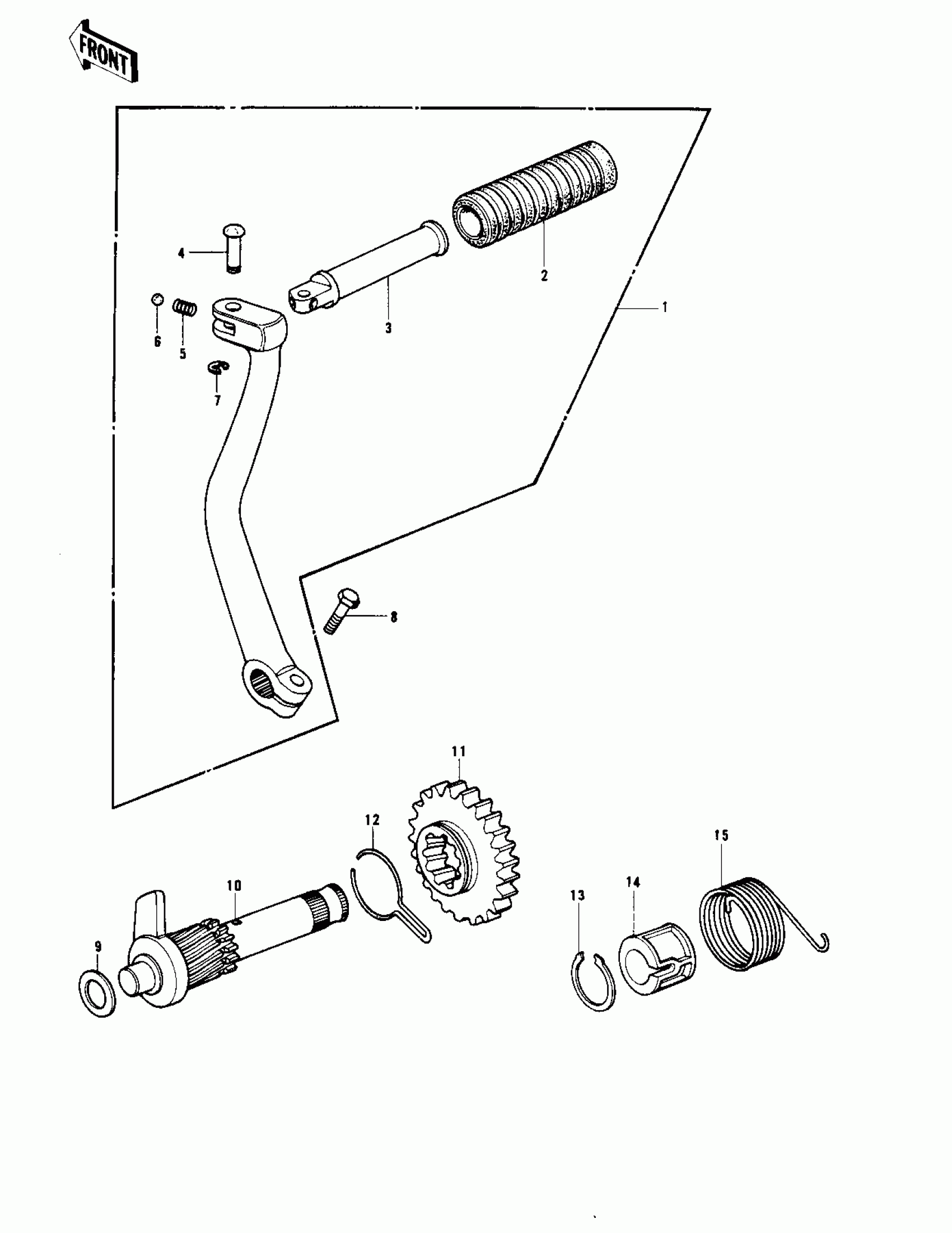

1979 Kawasaki KD175-A4 Kickstarter Mechanism Diagram

#

Description
Price
Status
Order Qty

1

PEDAL ASSY,KICK

13064-020

Out of stock

2

DAMPER,PEDAL

13063-002

$3.58

In stock

3

LEVER,KICK PEDAL

13060-003

Out of stock

4

PIN-KICK PEDAL

92043-088

Out of stock

5

SPRING-KICK STARTER

92081-049

Out of stock

6

$0.69

In stock

7

CIRCLIP 5MM

482K5000

Out of stock

8

BOLT-SMALL-UPSET 8X25

115G0825

Out of stock

9

SHIM-KICK SHAFT,0.5T

92022-150

Out of stock

10

SHAFT,KICK

13245-010

Out of stock

11

GEAR-KICKSTARTER

13068-026

Out of stock

12

HOLDER KICK GEAR

13077-002

Out of stock

13

CIRCLIP

92033-022

Out of stock

14

GUIDE,KICK SPRING

13070-010

Out of stock

15

SPRING,KICKSTARTER

92082-005

Out of stock
