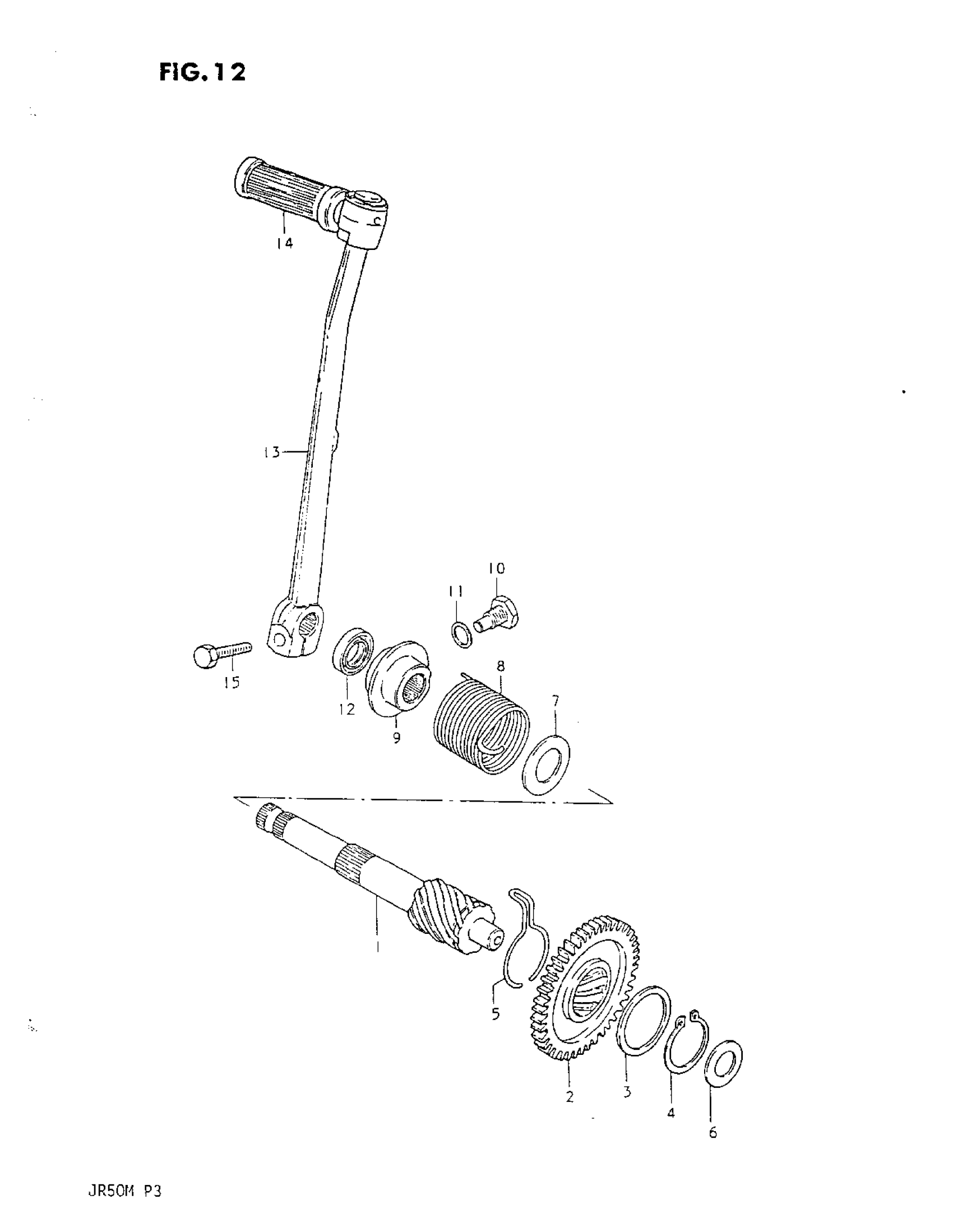

Find the part on the Kick Starter diagram for your 1987 Suzuki JR50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Suzuki JR50 Kick Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, KICK STARTER

26211-04000

1
Out of stock

2

GEAR, DRIVE (NT:43) This part replaces 26241-04001.

26241-04002

1
Out of stock

3

WASHER (25X32X1)

08211-25321

1

$3.24

In stock

4

CIRCLIP

09380-25009

1
Out of stock

5

RETAINER SPRING

09384-30001

1
Out of stock

6

WASHER

08211-12261

1
Out of stock

7

WASHER (16X30.5X1)

09160-16003

1
Out of stock

8

SPRING

09448-41001

1
Out of stock

9

STOPPER, KICK STARTER This part replaces 26232-04400.

26232-04401

1
Out of stock

10

BOLT

09135-10003

1
Out of stock

11

GASKET

09168-10002

1
Out of stock

12

OIL SEAL (14X24X6) This part replaces 09285-14001.

09285-14002

1
Out of stock

13

LEVER ASSY. KICK STARTER This part replaces 26300-04401.

26300-04402

1
Out of stock

14

RUBBER,KICK STA This part replaces 26352-01000.

26352-01020

1
Out of stock

15

BOLT This part replaces 01107-06207.

01500-06207

1
Out of stock
