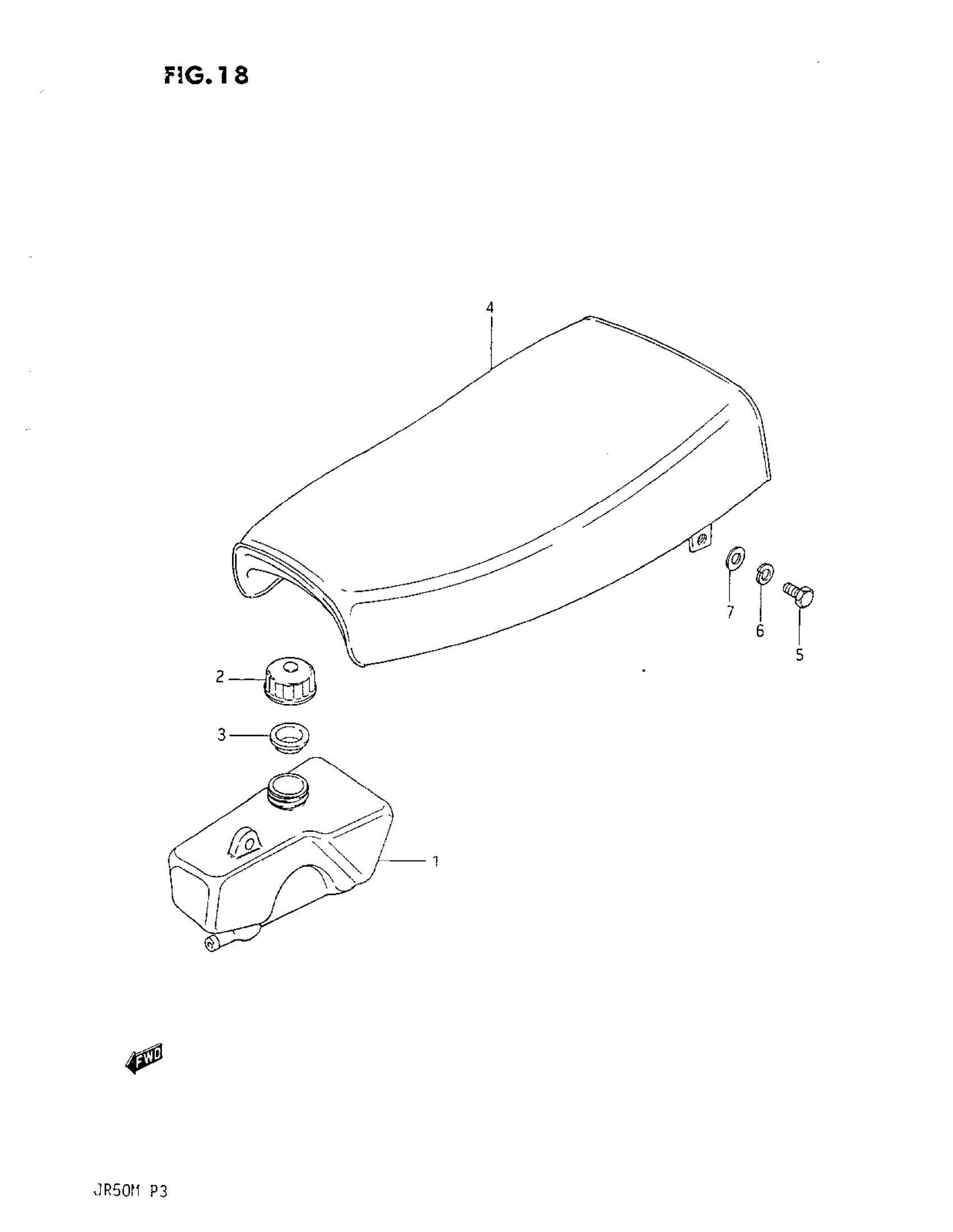

Suzuki JR50 (1987) OIL TANK-SEAT Diagram

#

Description

Price

1

TANK, OIL

44611-04410

$36.05

2

CAP, OIL TANK

44651-04410

$5.00

3

GASKET, OIL TANK CAP This part replaces 44661-32100.

51222-16500

$5.03

4

SEAT (BLUE) | MODEL F This part replaces 45100-04450-54G.

45100-04480-4UZ

Unavailable

4

SEAT (BLUE) | MODEL G

45100-04460-54G

Unavailable

4

SEAT (BLUE) | MODEL H/J This part replaces 45100-04460-4UZ.

45100-04480-4UZ

Unavailable

4

SEAT (BLUE) | MODEL K/L/M

45100-04480-4UZ

Unavailable

5

BOLT This part replaces 01107-06166.

01500-0616A

$1.82

6

LOCK WASHER This part replaces 08321-21067.

08321-01067

$1.89

7

WASHER This part replaces 08322-21067.

08322-01067

$1.93
