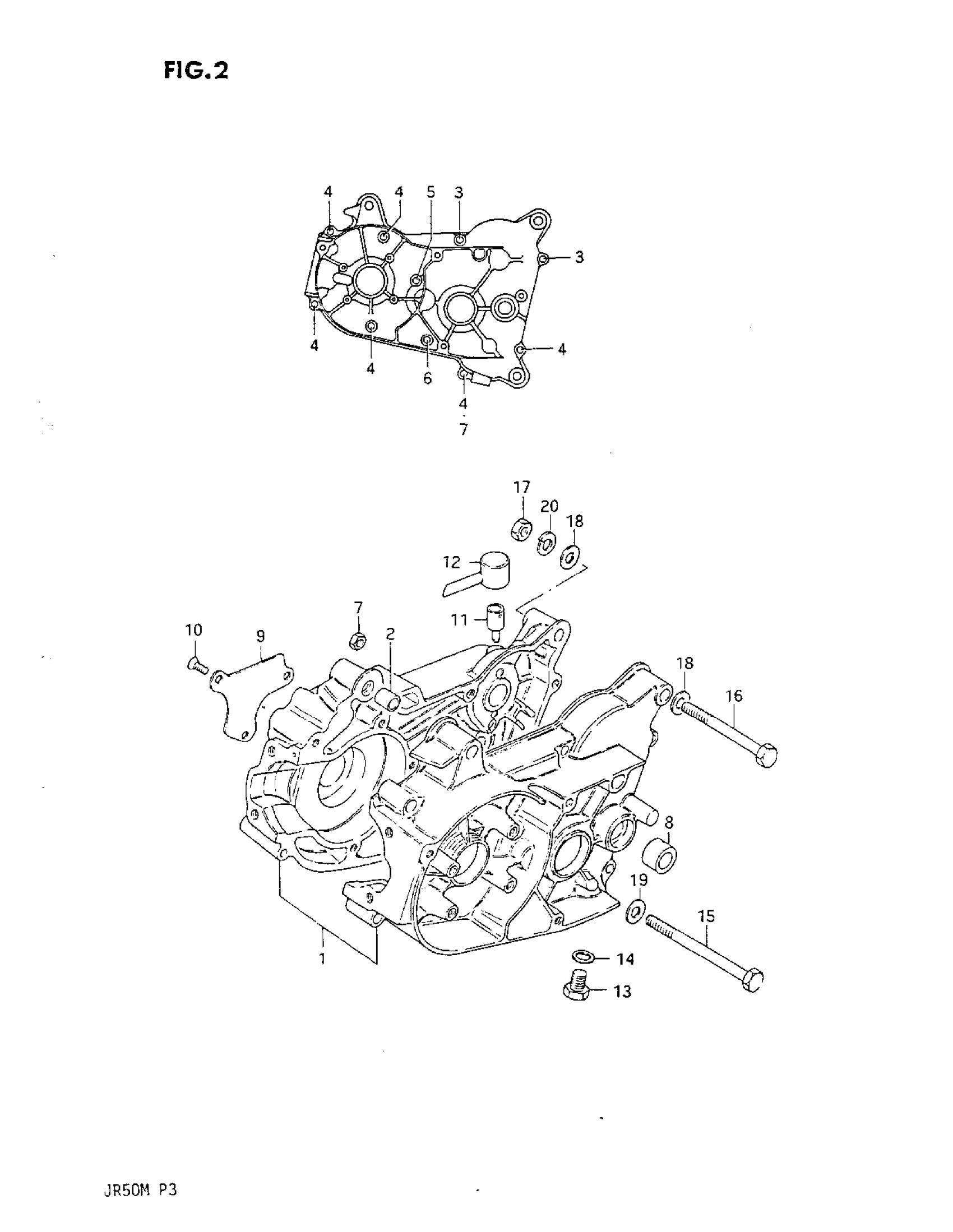

Suzuki JR50 (1987) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET This part replaces 11300-04840.

11300-04844

Unavailable

2

PIN

04211-11129

$1.77

3

SCREW This part replaces 02112-06308.

02112-06307

$1.99

4

SCREW (6X35)

02112-06357

$1.77

5

SCREW (6X40)

02112-06407

$1.80

6

SCREW This part replaces 02112-06558.

02112-06557

$2.55

7

.NUT This part replaces 08310-11067.

08310-00067

$1.83

8

BUSH, COUNTER SHAFT

09304-10005

$6.15

9

PLATE, OIL RESERVOIR

12521-04000

Unavailable

10

SCREW This part replaces 02122-04108.

02122-0410A

$1.22

11

PLUG, BREATHER

24821-09001

$10.25

12

BREATHER PLUG C This part replaces 24822-20000.

24822-20001

$4.18

13

PLUG, OIL DRAIN

09247-10001

$2.06

14

GASKET

09168-10002

$1.96

15

BOLT This part replaces 01107-08858.

01500-0885B

$4.62

16

BOLT This part replaces 01107-08708.

01500-0870B

$4.45

17

NUT This part replaces 08310-12088.

08310-00087

$1.83

18

WASHER This part replaces 08322-11088.

08322-01087

$1.86

19

WASHER This part replaces 09160-08030.

09160-08128

$3.05

20

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83
