1987 Suzuki JR50 Crankcase Cover Diagram

← All diagrams

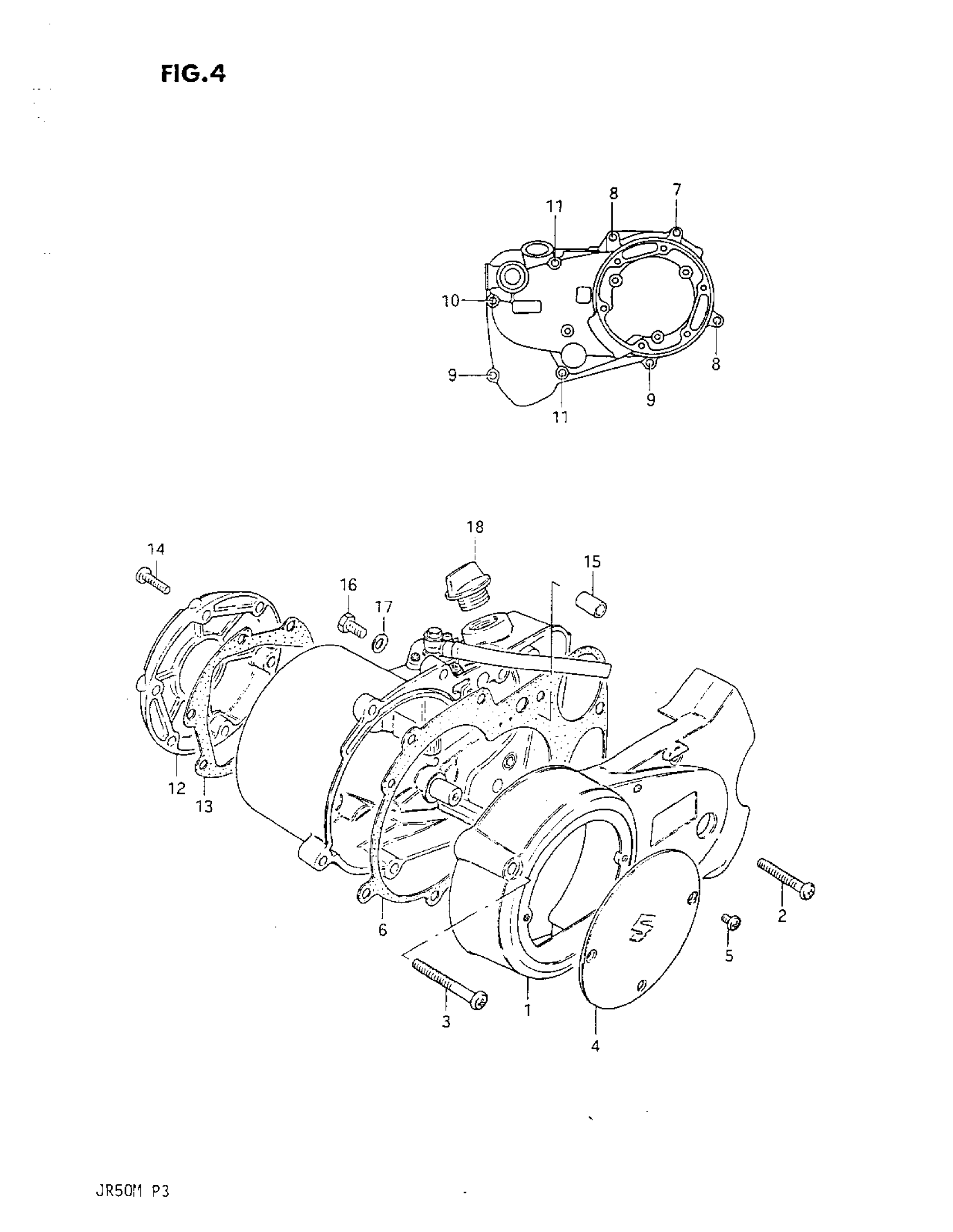

Find the part on the Crankcase Cover diagram for your 1987 Suzuki JR50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Suzuki JR50 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, MAGNETO

11351-04400

1
Out of stock

2

SCREW This part replaces 02112-06355.

02112-0635B

2
Out of stock

3

SCREW This part replaces 02112-06455.

02112-0645B

1
Out of stock

4

CAP, MAGNETO INSPECTION This part replaces 11381-04400.

11381-04401

1
Out of stock

5

2

$1.67

In stock

6

GASKET, CLUTCH COVER | MODEL F/G/H/J/K/L This part replaces 11482-04000.

11482-04010

1
Out of stock

6

GASKET, CLUTCH COVER (NA) | MODEL M

11482-04010

1
Out of stock

7

1

$1.55

In stock

8

SCREW This part replaces 02112-06255.

02112-0625A

2
Out of stock

9

SCREW, SEAT SUPPORT BRK This part replaces 02112-06305.

02112-0630A

2
Out of stock

10

SCREW This part replaces 02112-06455.

02112-0645B

1
Out of stock

11

SCREW This part replaces 02112-06504.

02112-0650B

2
Out of stock

12

CAP, CLUTCH RELEASE This part replaces 11387-04400.

11387-04401

1
Out of stock

13

GASKET, RELEASE CAP This part replaces 11495-04400.

11495-04410

1
Out of stock

14

6

$1.55

In stock

15

PIN

04211-09129

2
Out of stock

16

SCREW (6X10) This part replaces 09128-06004.

09128-06044

1
Out of stock

17

GASKET

09168-06001

1
Out of stock

18

PLUG SET This part replaces 09200-20810.

09200-20811

1
Out of stock
