1987 Suzuki JR50 Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 1987 Suzuki JR50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

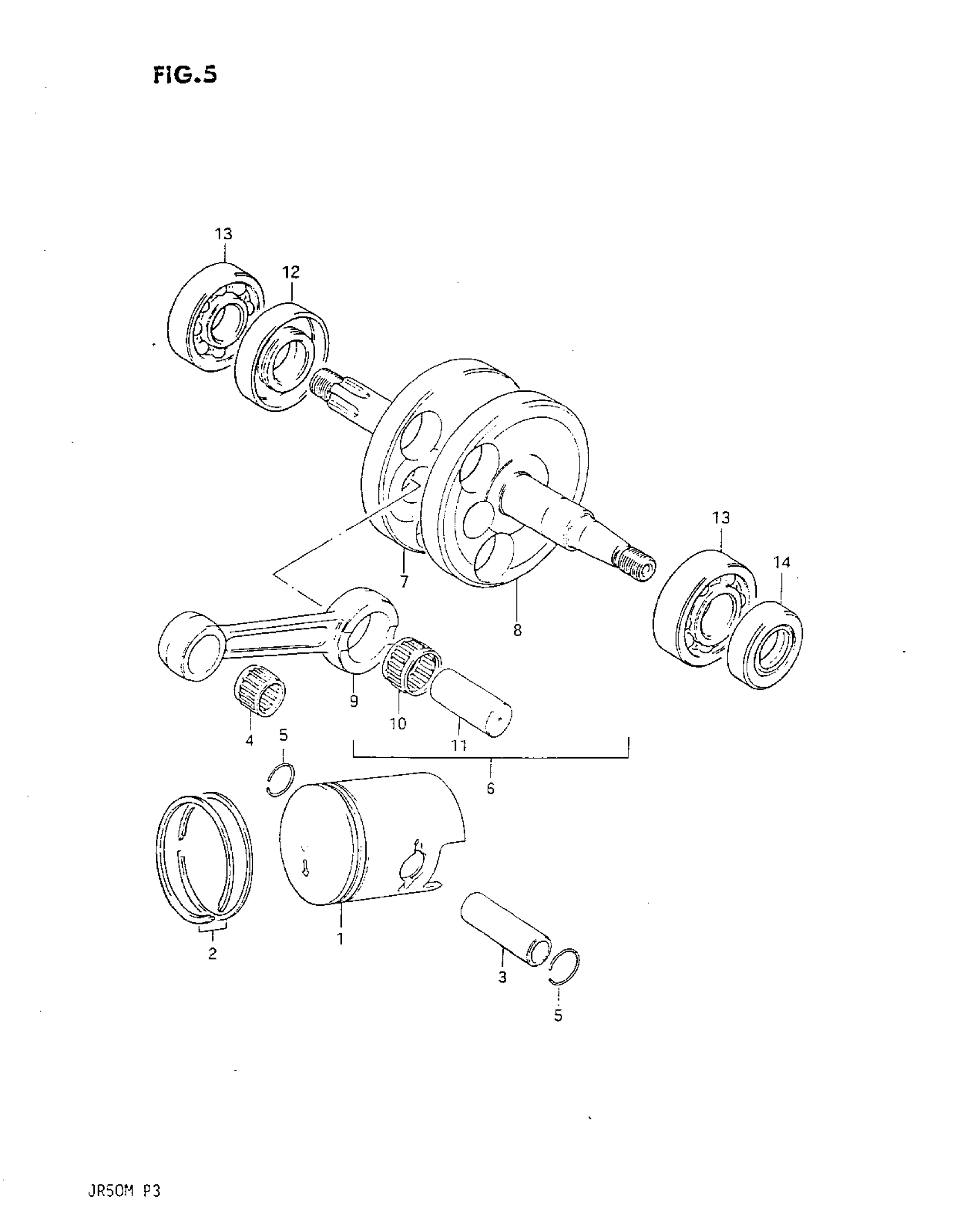

1987 Suzuki JR50 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PISTON This part replaces 12110-35613.

12110-43000

1
Out of stock

1

PISTON SET (OS:0.5) | OPT This part replaces 12110-35613-050.

12100-35611-050

1
Out of stock

1

PISTON SET (OS:1.0) | OPT This part replaces 12110-35613-100.

12100-35611-100

1
Out of stock

2

RING SET, PISTON (STD) This part replaces 12140-43000.

12140-16B10

1
Out of stock

2

RING SET, PISTON (OS:0.5) | OPT

12140-46110-050

1
Out of stock

2

RING SET, PISTON (OS:1.0) | OPT

12140-46110-100

1
Out of stock

3

PIN, PISTON

12151-04700

1
Out of stock

4

BEARING (12X16X16) This part replaces 09263-12020.

09263-12023

1
Out of stock

5

SNAP RING

09381-12001

2
Out of stock

6

CRANKSHAFT ASSY

12200-04401

1
Out of stock

7

CRANKSHAFT, RH

12221-04400

1
Out of stock

8

CRANKSHAFT, LH

12261-04000

1
Out of stock

9

ROD, CONNECTING

12161-04001

1
Out of stock

10

BEARING

09263-15014

1
Out of stock

11

PIN, CRANK

12211-04000

1
Out of stock

12

SEAL,OIL(22X40X This part replaces 09283-22001.

09283-22037

1
Out of stock

13

BEARING (17X40X12)

09262-17023

2
Out of stock

14

OIL SEAL CRANKS This part replaces 09283-17010.

09283-17012

1
Out of stock
