2020 Kawasaki Jet Ski® SX-R™ Intake Silencer Diagram

← All diagrams

Find the part on the Intake Silencer diagram for your 2020 Kawasaki Jet Ski® SX-R™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

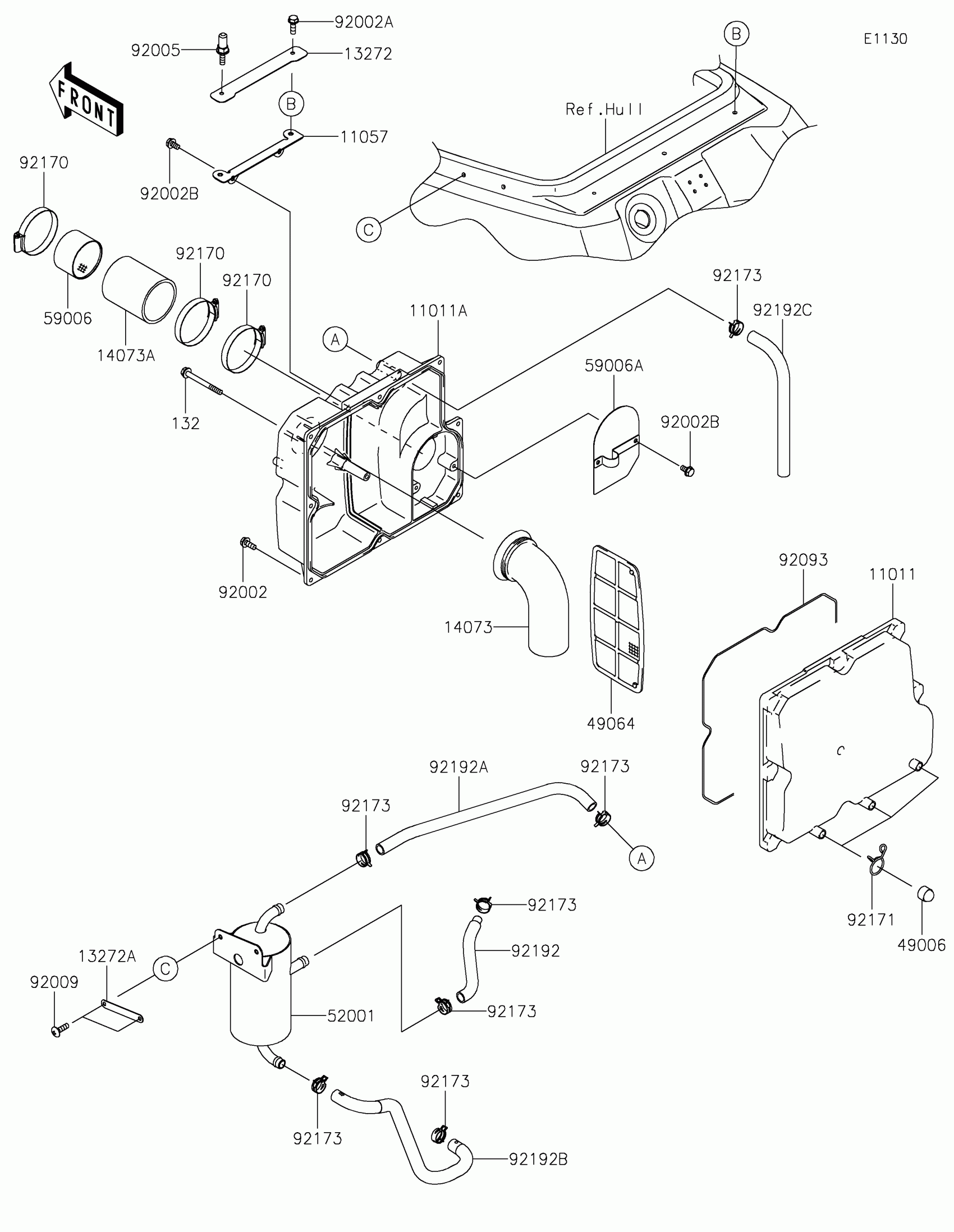

2020 Kawasaki Jet Ski® SX-R™ Intake Silencer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11011

CASE-AIR FILTER,RR

11011-3704

1
Out of stock

11011A

CASE-AIR FILTER,FR

11011-3706

1
Out of stock

11057

BRACKET

11057-0450

1
Out of stock

13272

PLATE

13272-2418

1
Out of stock

13272A

PLATE

13272-2419

1
Out of stock

14073

DUCT,AIR INLET

14073-3794

1
Out of stock

14073A

DUCT,AIR FILTER-THOROTTLE

14073-3795

1
Out of stock

49006

BOOT,DRAIN

49006-3718

1
Out of stock

49064

FILTER-AIR

49064-3702

1
Out of stock

52001

TANK-OIL

52001-0010

1
Out of stock

59006

ARRESTER-FLAME

59006-0019

1
Out of stock

59006A

ARRESTER-FLAME

59006-3720

1
Out of stock

92002

BOLT,6X16

92002-3728

1
Out of stock

92002A

BOLT,6X20

92002-3755

1
Out of stock

92002B

BOLT,6X12

92002-3763

1
Out of stock

92005

FITTING

92005-0877

1
Out of stock

92009

SCREW,6X20

92009-3870

1
Out of stock

92093

SEAL

92093-3766

1
Out of stock

92170

CLAMP

92170-3764

1
Out of stock

92171

CLAMP,BOOT

92171-3711

1
Out of stock

92173

CLAMP

92173-1039

1
Out of stock

92192

TUBE,CYLINDER HEAD-OIL TANK

92192-1704

1
Out of stock

92192A

TUBE,OIL TANK-AIR CLEANER

92192-1705

1
Out of stock

92192B

TUBE,OIL TANK-OIL PAN

92192-1776

1
Out of stock

92192C

TUBE,BLOWBY

92192-3725

1
Out of stock

132

BOLT-FLANGED-SMALL,6X60

132BD0660

1
Out of stock
