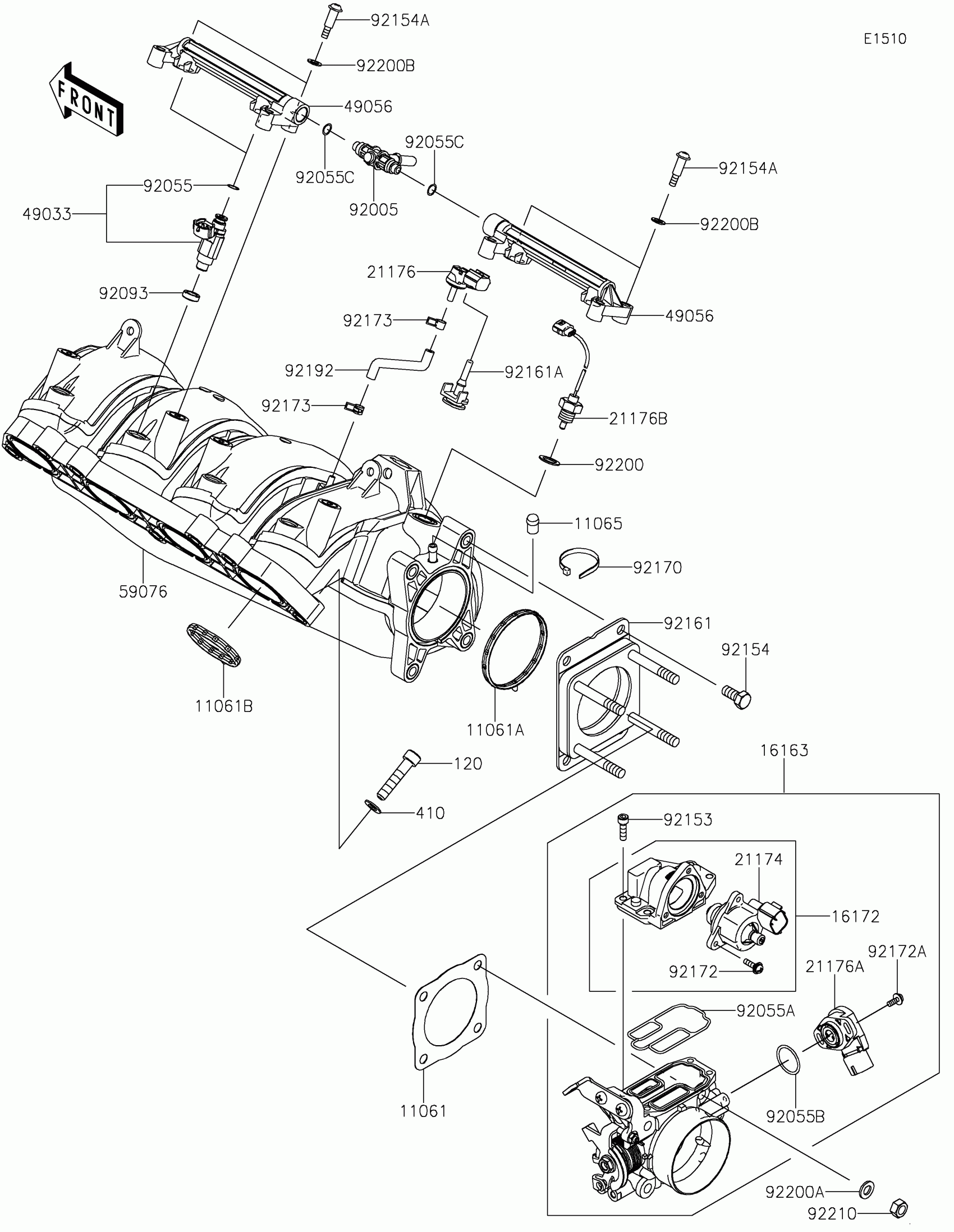

Kawasaki JET SKI® SX-R™ Throttle Diagram

#

Description
Price

11061

GASKET,THROTTLE

11061-0824

$56.44

11061A

GASKET,MANIFOLD

11061-3766

$14.25

11061B

GASKET,THROTTLE

11061-3767

$11.43

11065

CAP

11065-0764

$1.66

16163

THROTTLE-ASSY

16163-0919

$1,337.72

16172

ACTUATOR

16172-0561

$364.61

21174

MOTOR-ELECTRIC,STM

21174-0555

$224.24

21176

SENSOR,PRESSURE

21176-0111

$226.99

21176A

SENSOR,TPS

21176-3762

$83.52

21176B

SENSOR,AIR TEMPERATURE

21176-3767

$201.70

49033

NOZZLE-INJECTION

49033-3707

$104.76

49056

PIPE-INJECTION,FUEL

49056-3705

$67.75

59076

MANIFOLD-INTAKE

59076-0006

$556.57

92005

FITTING,FUEL PIPE

92005-3766

$33.87

92055

RING-O,INJECTION NOZZLE

92055-1622

$1.42

92055A

RING-O

92055-3773

Unavailable

92055B

RING-O

92055-3774

$12.79

92055C

RING-O

92055-3782

$8.92

92093

SEAL

92093-0127

$8.04

92153

BOLT,SOCKET,8X40

92153-0517

$2.12

92153A

BOLT

92153-3723

$3.51

92154

BOLT

92154-1389

$7.47

92154A

BOLT

92154-3713

$13.51

92161

DAMPER

92161-1942

$123.12

92161A

DAMPER

92161-3796

$13.61

92170

CLAMP

92170-3749

$3.15

92172

SCREW

92172-3710

$3.51

92172A

SCREW

92172-3711

$3.51

92173

CLAMP

92173-3702

$6.99

92192

TUBE

92192-1361

$3.71

92200

WASHER,12X18X1

92200-0712

$3.59

92200A

WASHER

92200-3806

$5.25

92200B

WASHER

92200-3807

$4.53

92210

NUT

92210-0897

$2.25

410

WASHER-PLAIN-SMALL,8MM

410S0800

$1.62
