2020 Kawasaki JET SKI® SX-R™ Fuel Pump Diagram

← All diagrams

Find the part on the Fuel Pump diagram for your 2020 Kawasaki JET SKI® SX-R™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

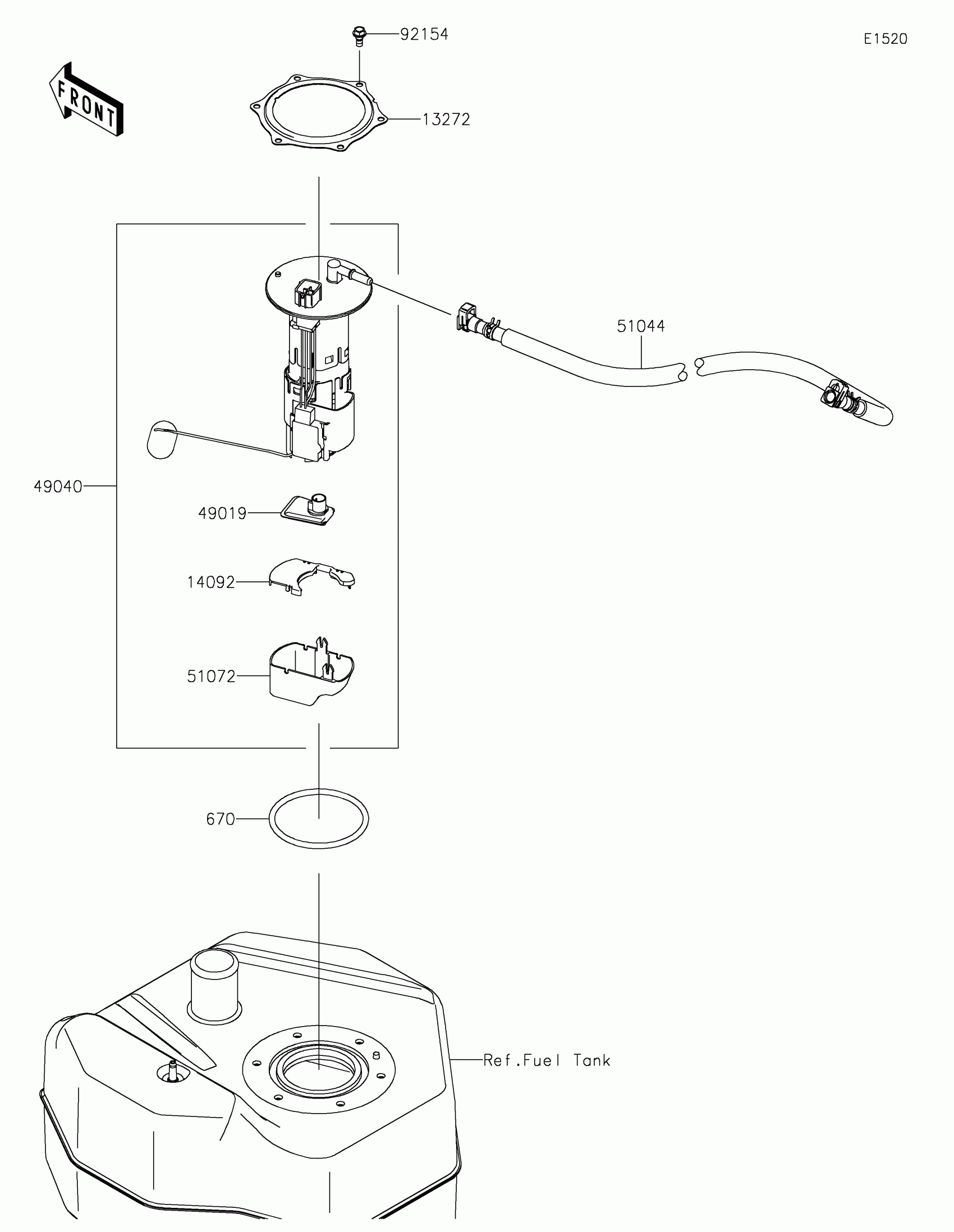

2020 Kawasaki JET SKI® SX-R™ Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13272

PLATE

13272-2589

1
Out of stock

14092

COVER

14092-1044

1
Out of stock

49019

FILTER-FUEL

49019-0013

1
Out of stock

49040

PUMP-FUEL

49040-0757

1
Out of stock

51044A

TUBE-ASSY,FUEL

51044-0842

1
Out of stock

51044B

TUBE-ASSY,FUEL

51044-0930

1
Out of stock

51072

CHAMBER-FUEL

51072-0003

1
Out of stock

92154

BOLT,FUEL PUMP

92154-3856

1
Out of stock

670

O RING

670E5090

1
Out of stock
← Fuel Injection Fuel Tank →
