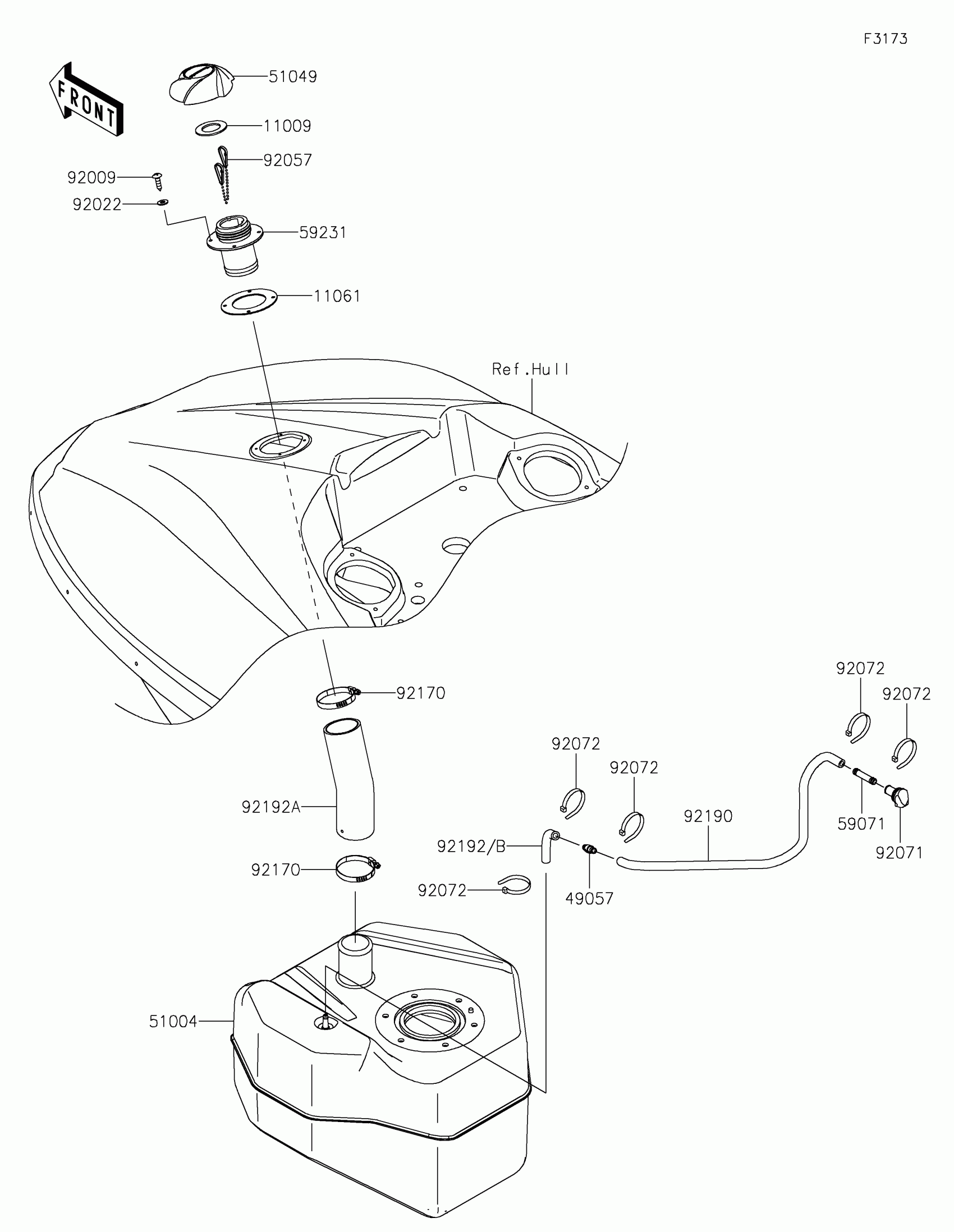

Kawasaki JET SKI® SX-R™ Fuel Tank Diagram

Description

Price

11009

GASKET,TANK CAP

11009-3020

$10.26

11061

GASKET

11061-3701

$13.46

49057

VALVE-RELIEF

49057-0002

$58.19

51004

TANK-FUEL

51004-0012

$303.72

51049

CAP-TANK,FUEL

51049-0712

$19.07

59071

JOINT

59071-3764

$7.51

59231

FILLER,FUEL TANK

59231-3734

$12.21

92009

SCREW,TAPPING,4X16

92009-3849

$1.20

92022

WASHER

92022-563

$0.90

92057

CHAIN,COVER,L=100

92057-3704

$14.56

92071

GROMMET

92071-3841

$7.22

92072

BAND,L=100.08

92072-3882

$1.71

92170

CLAMP

92170-1674

$8.94

92190

TUBE,5.8X10.8X500

92190-3846

$20.95

92192A

TUBE

92192-1707

$65.97

92192B

TUBE,5.8X11X100

92192-1795

$17.36
