2020 Kawasaki JET SKI® STX®160 Valve Diagram

← All diagrams

Find the part on the Valve diagram for your 2020 Kawasaki JET SKI® STX®160, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

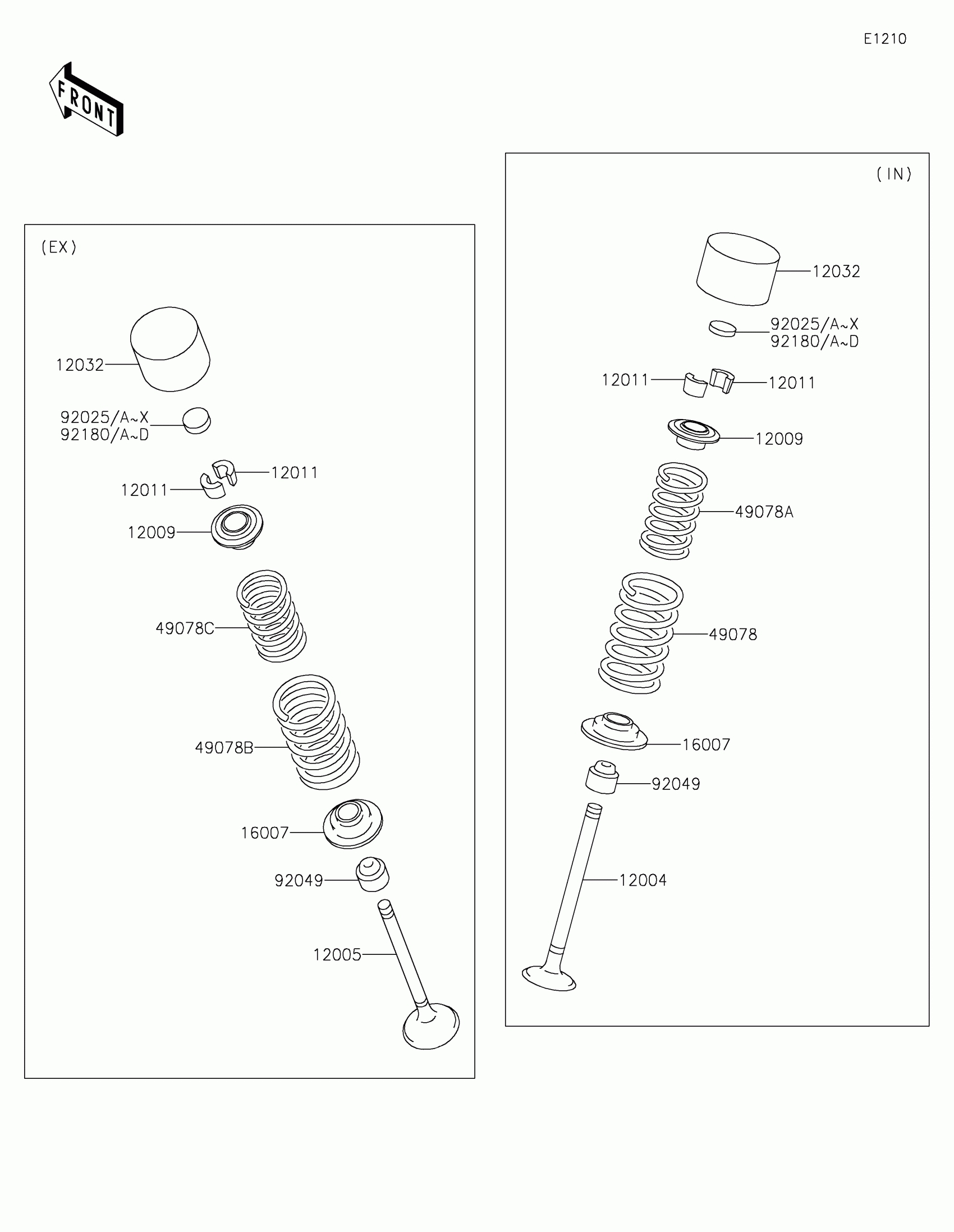

2020 Kawasaki JET SKI® STX®160 Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12004

VALVE-INTAKE

12004-1154

1
Out of stock

12005

VALVE-EXHAUST

12005-3703

1
Out of stock

12009

RETAINER-VALVE SPRING

12009-3701

1
Out of stock

12011

COLLET

12011-1051

1
Out of stock

12032

TAPPET

12032-3701

1
Out of stock

16007

SEAT-SPRING

16007-1163

1
Out of stock

49078

SPRING-VALVE,INTAKE,OUTER

49078-1194

1
Out of stock

49078A

SPRING-VALVE,INTAKE,INNER

49078-1195

1
Out of stock

49078B

SPRING-VALVE,EXHAUST,OUTER

49078-1197

1
Out of stock

49078C

SPRING-VALVE,EXHAUST,INNER

49078-1198

1
Out of stock

92025

SHIM,T=2.00

92025-1870

1
Out of stock

92025A

SHIM,T=2.05

92025-1871

—
Out of stock

92025B

SHIM,T=2.10

92025-1872

—
Out of stock

92025C

SHIM,T=2.15

92025-1873

—
Out of stock

92025D

SHIM,T=2.20

92025-1874

—
Out of stock

92025E

SHIM,T=2.25

92025-1875

—
Out of stock

92025F

SHIM,T=2.30

92025-1876

—
Out of stock

92025G

SHIM,T=2.35

92025-1877

—
Out of stock

92025H

SHIM,T=2.40

92025-1878

—
Out of stock

92025I

SHIM,T=2.45

92025-1879

—
Out of stock

92025J

SHIM,T=2.50

92025-1880

—
Out of stock

92025K

SHIM,T=2.55

92025-1881

—
Out of stock

92025L

SHIM,T=2.60

92025-1882

—
Out of stock

92025M

SHIM,T=2.65

92025-1883

—
Out of stock

92025N

SHIM,T=2.70

92025-1884

—
Out of stock

92025O

SHIM,T=2.75

92025-1885

—
Out of stock

92025P

SHIM,T=2.80

92025-1886

—
Out of stock

92025Q

SHIM,T=2.85

92025-1887

—
Out of stock

92025R

SHIM,T=2.90

92025-1888

—
Out of stock

92025S

SHIM,T=2.95

92025-1889

—
Out of stock

92025T

SHIM,T=3.00

92025-1890

—
Out of stock

92025U

SHIM,T=2.425

92025-1982

—
Out of stock

92025V

SHIM,T=2.475

92025-1983

—
Out of stock

92025W

SHIM,T=2.525

92025-1984

—
Out of stock

92025X

SHIM,T=2.575

92025-1985

—
Out of stock

92049

SEAL-OIL,RVCI 5X8.7X8

92049-1509

1
Out of stock

92180

SHIM,T=2.375

92180-1058

—
Out of stock

92180A

SHIM,T=2.625

92180-1059

—
Out of stock

92180B

SHIM,T=2.675

92180-1194

—
Out of stock

92180C

SHIM,T=2.725

92180-1195

—
Out of stock

92180D

SHIM,T=2.775

92180-1196

—
Out of stock
