2020 Kawasaki JET SKI® STX®160 Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 2020 Kawasaki JET SKI® STX®160, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

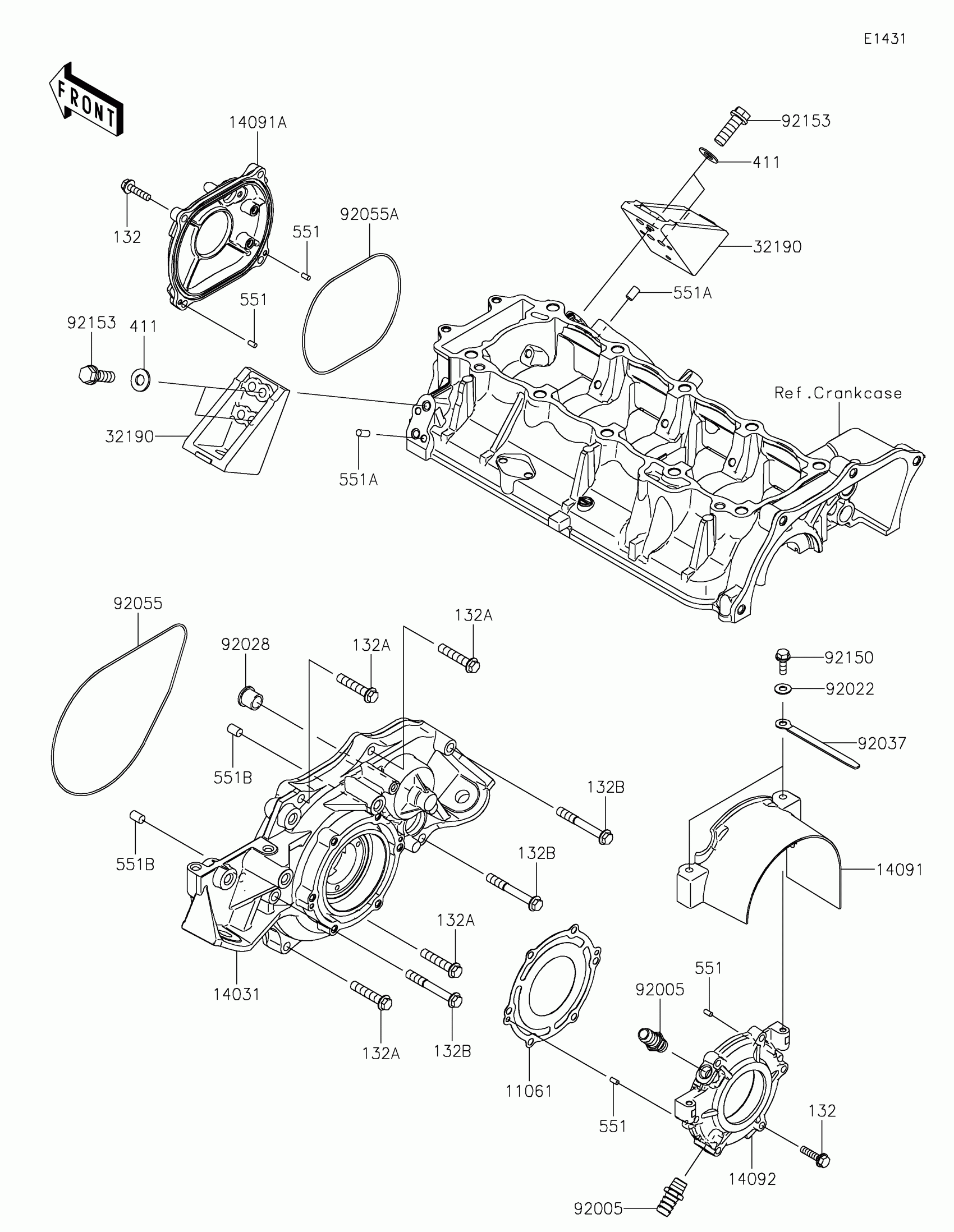

2020 Kawasaki JET SKI® STX®160 Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,OUTPUT COVER

11061-0812

1
Out of stock

132

1

$4.28

In stock

132A

1

$4.92

In stock

132B

1

$2.53

In stock

14031

COVER-GENERATOR

14031-3737

1

$228.95

In stock

14091

COVER,COUPLING

14091-3749

1
Out of stock

14091A

COVER,PULS

14091-3763

1
Out of stock

14092

COVER,OUTPUT

14092-1046

1
Out of stock

32190

BRACKET-ENGINE

32190-3703

1
Out of stock

411

WASHER-PLAIN,8MM

411S0800

1
Out of stock

551

PIN-DOWEL

551R0408

1
Out of stock

551A

PIN-DOWEL

551R0612

1
Out of stock

551B

PIN-DOWEL

551R0812

1
Out of stock

92005

FITTING

92005-3714

1
Out of stock

92022

WASHER,6.5X20X1.5

92022-3710

1
Out of stock

92028

BUSHING

92028-3718

1
Out of stock

92037

CLAMP,L=100

92037-3736

1
Out of stock

92055

RING-O,196X3

92055-3761

1
Out of stock

92055A

RING-O,120X3

92055-3762

1
Out of stock

92150

BOLT,6X18

92150-3729

1
Out of stock

92153

BOLT,FLANGED,8X30

92153-3722

1
Out of stock
