2020 Kawasaki JET SKI® STX®160 OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 2020 Kawasaki JET SKI® STX®160, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

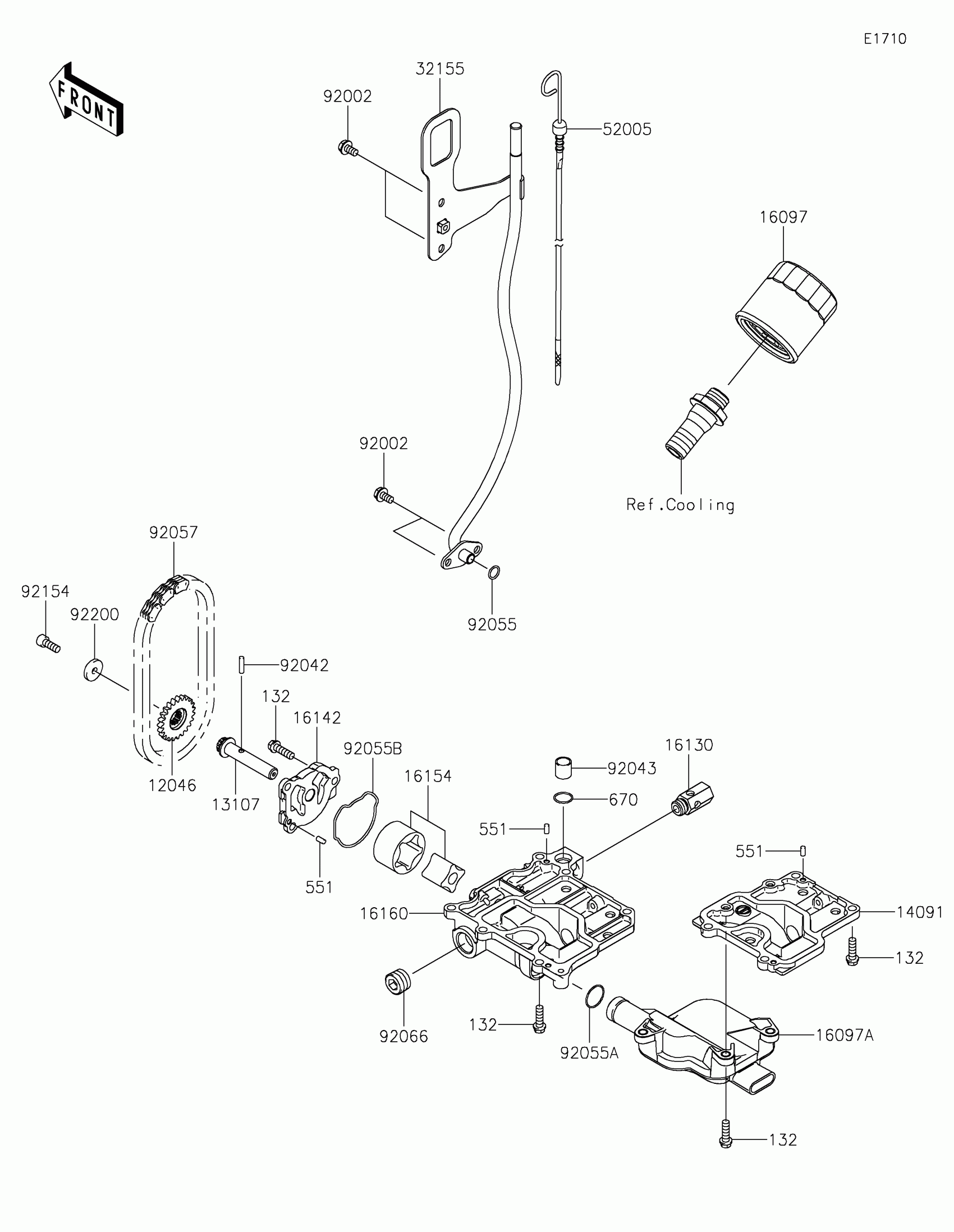

2020 Kawasaki JET SKI® STX®160 OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12046

SPROCKET,23T

12046-3708

1

$17.68

In stock

13107

SHAFT

13107-0730

1

$48.64

In stock

132

1

$3.28

In stock

14091

COVER

14091-3767

1

$78.59

In stock

16097

FILTER-ASSY-OIL

16097-0007

1

$12.25

In stock

16097A

FILTER-ASSY-OIL

16097-3702

1

$46.60

In stock

16130

VALVE-ASSY-RELIEF

16130-3701

1

$47.89

In stock

16142

COVER-PUMP

16142-3703

1

$38.28

In stock

16154

ROTOR-PUMP

16154-1124

1

$64.18

In stock

16160

BODY,OIL PUMP

16160-0705

1

$132.11

In stock

32155

PIPE,OIL LEVEL

32155-2149

1

$185.04

In stock

52005

GAUGE,OIL LEVEL

52005-3710

1

$67.94

In stock

551

PIN-DOWEL

551R0408

1

$4.27

In stock

670

O RING,14MM

670D2014

1

$4.37

In stock

92002

BOLT,6X12

92002-3763

1
Out of stock

92042

PIN,DOWEL,4X15.8

92042-014

1

$0.49

In stock

92043

PIN,11.5X14X14

92043-1279

1

$3.97

In stock

92055

RING-O,9.8X2.4

92055-1150

1

$6.44

In stock

92055A

RING-O,19.8X1.9

92055-1332

1

$3.72

In stock

92055B

RING-O

92055-3764

1

$5.21

In stock

92057

1

$26.44

In stock

92066

PLUG,PT1/2X12.5

92066-0002

1

$8.75

In stock

92154

BOLT,SOCKET,6X16

92154-3709

1

$1.66

In stock

92200

WASHER,6X20X3.2

92200-0120

1
Out of stock
