2020 Kawasaki Jet Ski® STX®160 Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2020 Kawasaki Jet Ski® STX®160, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

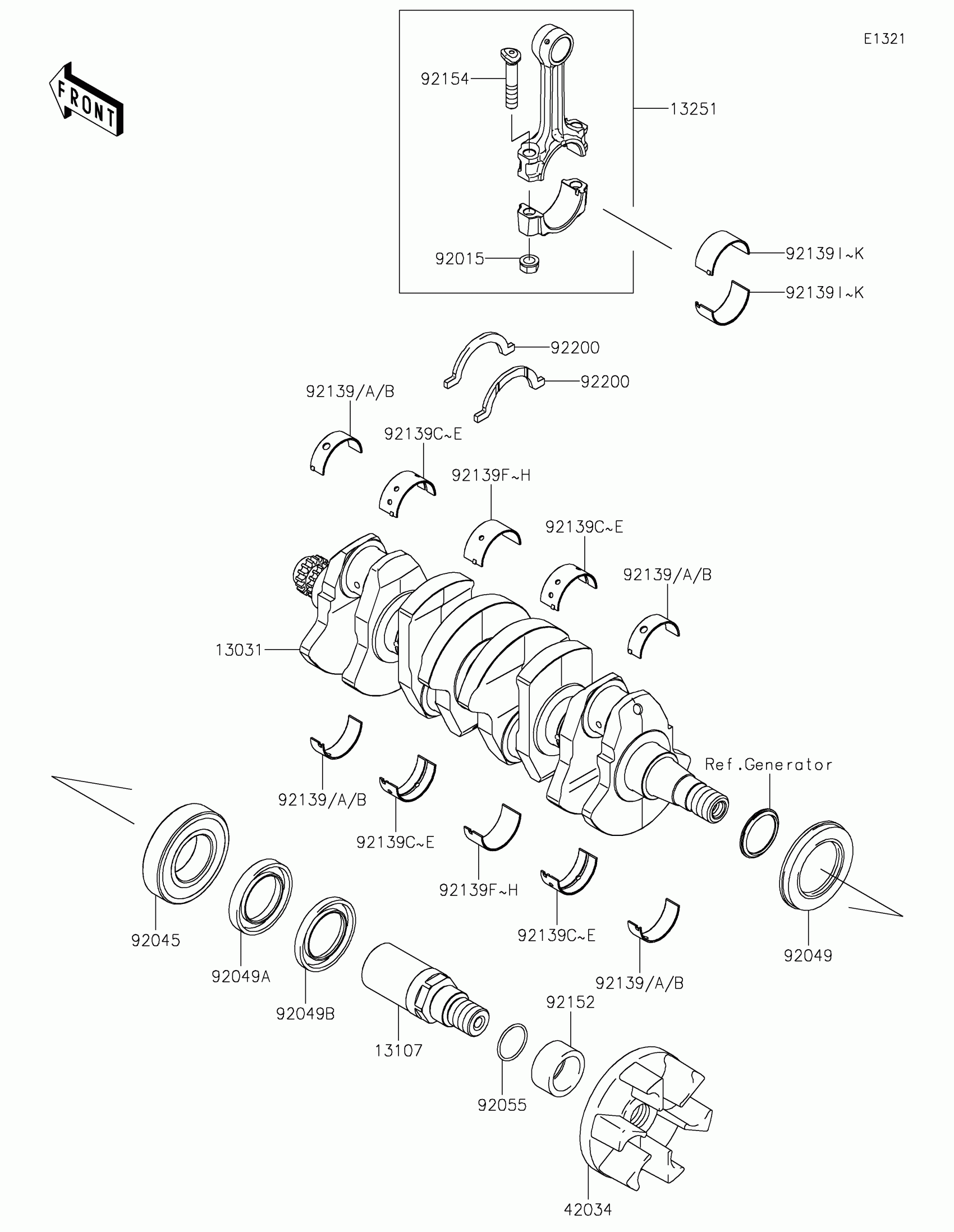

2020 Kawasaki Jet Ski® STX®160 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13031

CRANKSHAFT-COMP

13031-3742

1

$1,350.22

In stock

13107

SHAFT

13107-3785

1

$91.25

In stock

13251

ROD-ASSY-CONNECTING,I

13251-3703-II

1
Out of stock

42034

COUPLING

42034-3711

1

$51.45

In stock

92015

NUT,CONNECTING ROD

92015-1559

1

$4.93

In stock

92045

1

$51.98

In stock

92049

SEAL-OIL,SD347626LHS

92049-3736

1
Out of stock

92049A

SEAL-OIL,FPJ740628.5ZS

92049-3737

1
Out of stock

92049B

SEAL-OIL,S40626NS

92049-3738

1
Out of stock

92055

RING-O,27.7X2.4

92055-091

1

$4.93

In stock

92139

1

$8.58

In stock

92139A

—

$10.41

In stock

92139B

—

$8.58

In stock

92139C

1

$12.38

In stock

92139D

—

$12.38

In stock

92139E

—

$12.38

In stock

92139F

1

$11.75

In stock

92139G

—

$11.75

In stock

92139H

—

$11.75

In stock

92139I

1

$24.11

In stock

92139J

—

$24.11

In stock

92139K

—

$25.29

In stock

92152

COLLAR,OUTPUT RR,L=19.5

92152-3733

1
Out of stock

92154

1

$3.26

In stock

92200

WASHER

92200-3789

1
Out of stock
