SWING ARM

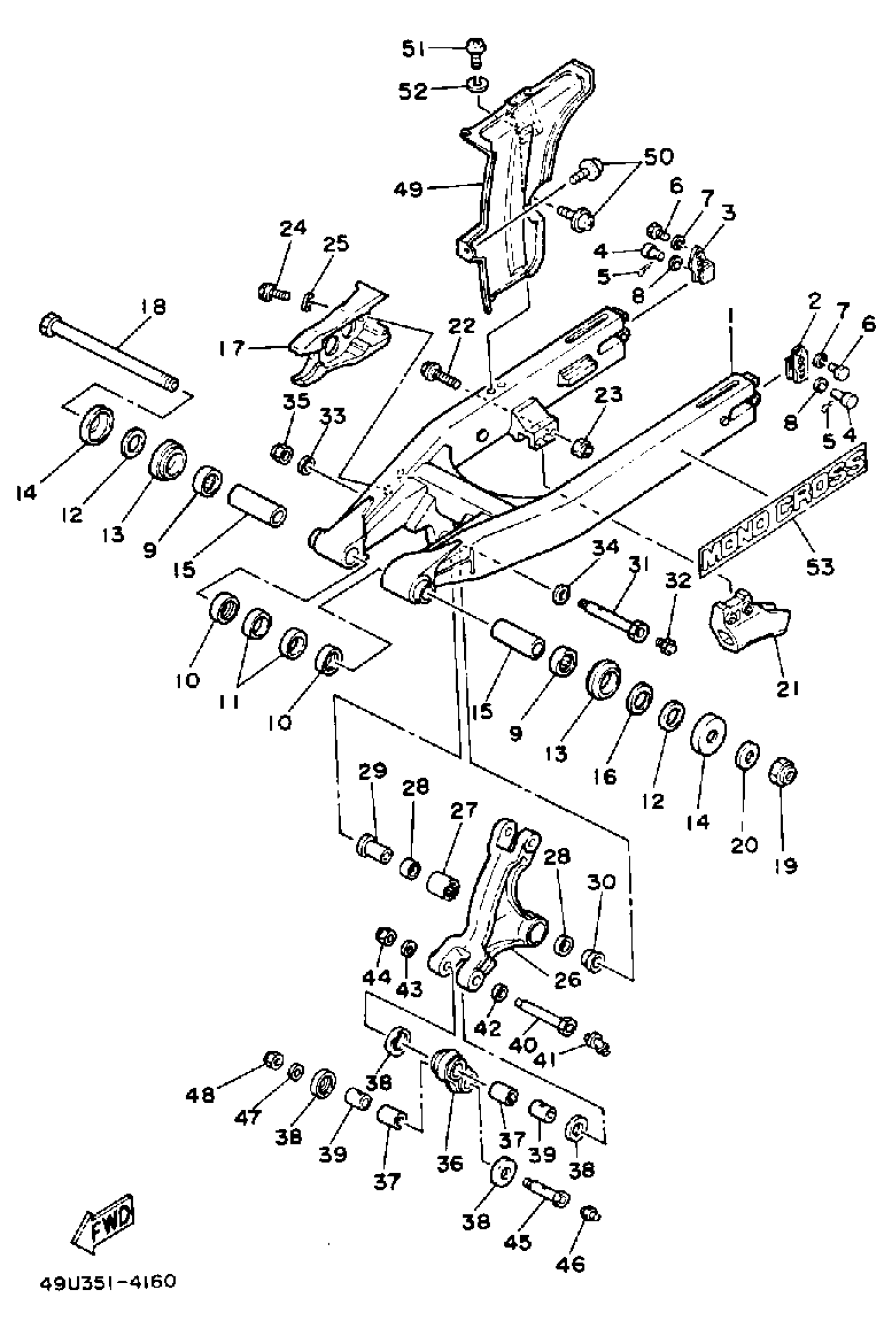

1986 Yamaha IT200 (IT200S) Swing ARM Diagram
Find the part on the Swing ARM diagram for your 1986 Yamaha IT200 (IT200S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
UNAVAILABLE IN PRICE BOOK
43-G2211-00-00
2
PLATE 1
43G-2539F-00-00
3
PLATE 2
43G-2539G-00-00
4
PIN, CLEVIS (682)
91790-05020-00
8
WASHER, PLAIN (646)
92990-05600-00
10
BUSH, SOLID (23X)
90380-22111-00
11
OIL SEAL (23X)
93106-22019-00
12
WASHER, PLATE
90201-22680-00
18
SHAFT, PIVOT
5X4-22141-01-00
19
NUT, SELF-LOCKING
90185-16002-00
20
WASHER, PLATE (5X6)
90201-160F6-00
26
ARM, RELAY
(43G-2217A-00-00)
28
OIL SEAL
93109-20076-00
29
COLLAR
90387-147G6-00
30
COLLAR (23X)
90387-147G7-00
31
BOLT
90109-12701-00
34
WASHER, PLATE(3FC)
90201-142M6-00
35
NUT, SELF LOCKING (23X)
90185-12119-00
36
ROD, CONNECTING 1
23X-2217F-00-00
40
BOLT
90109-10702-00
43
WASHER, PLATE(6TC)
90201-10M05-00
44
NUT, SELF LOCKING (23X)
90185-10120-00
45
BOLT
90109-10703-00
49
. CASE, CHAIN
5X8-W2231-01-00
50
SCREW, WITH WASHER (1W4)
90159-06016-00
53
EMBLEM, REAR ARM
1TY-2218A-00-00
