1986 Yamaha IT200 (IT200S) Electrical Diagram

← All diagrams

Find the part on the Electrical diagram for your 1986 Yamaha IT200 (IT200S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

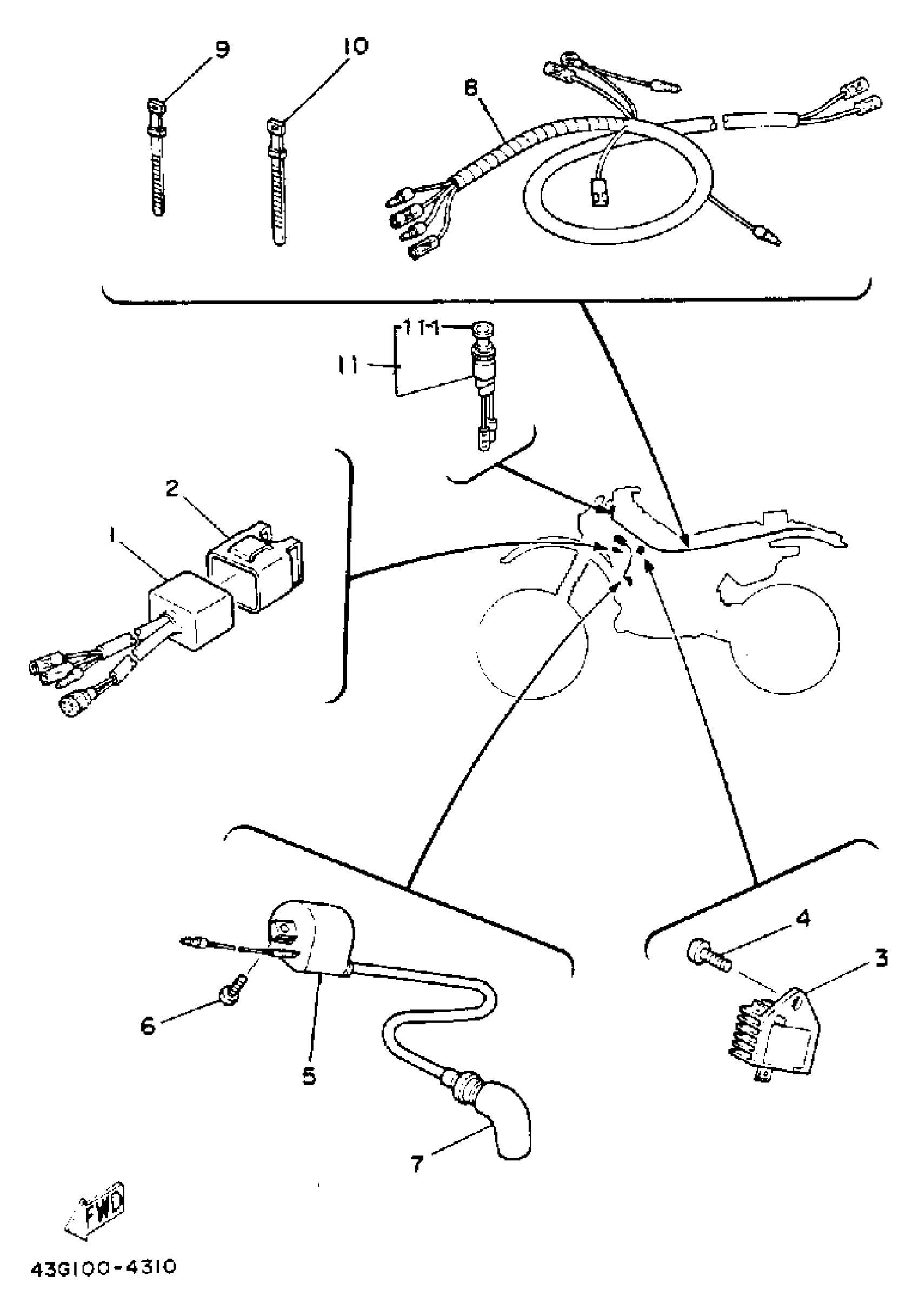

1986 Yamaha IT200 (IT200S) Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI UNIT ASSEMBLY

23X-85540-20-00

1
Out of stock

1

KNOB AND SCREW SET

(4V5-00000-00-XX)

1
Out of stock

2

BAND

2A7-85546-00-00

—

$20.40

In stock

3

VOLTAGE REGULATOR ASSY

4F4-81910-60-00

—

$159.49

In stock

4

SCREW, PAN

98507-06014-00

1

$6.18

In stock

5

IGNITION COIL ASSEMBLY

43G-82310-40-00

1
Out of stock

6

SCREW, PAN

98507-06014-00

1

$6.18

In stock

7

PLUG CAP ASSY

8DG-82370-00-00

1
Out of stock

7

PLUG CAP ASSY

8DG-82370-00-00

1
Out of stock

8

WIRE HARNESS ASSEMBLY

(43G-82590-00-00)

1
Out of stock

9

BAND, SWITCH CORD

25G-83936-01-00

1

$4.12

In stock

10

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock

11

LIGHT SWITCH ASSEMBLY

4V5-82520-00-00

1
Out of stock
