1986 Yamaha IT200 (IT200S) Steering Diagram

← All diagrams

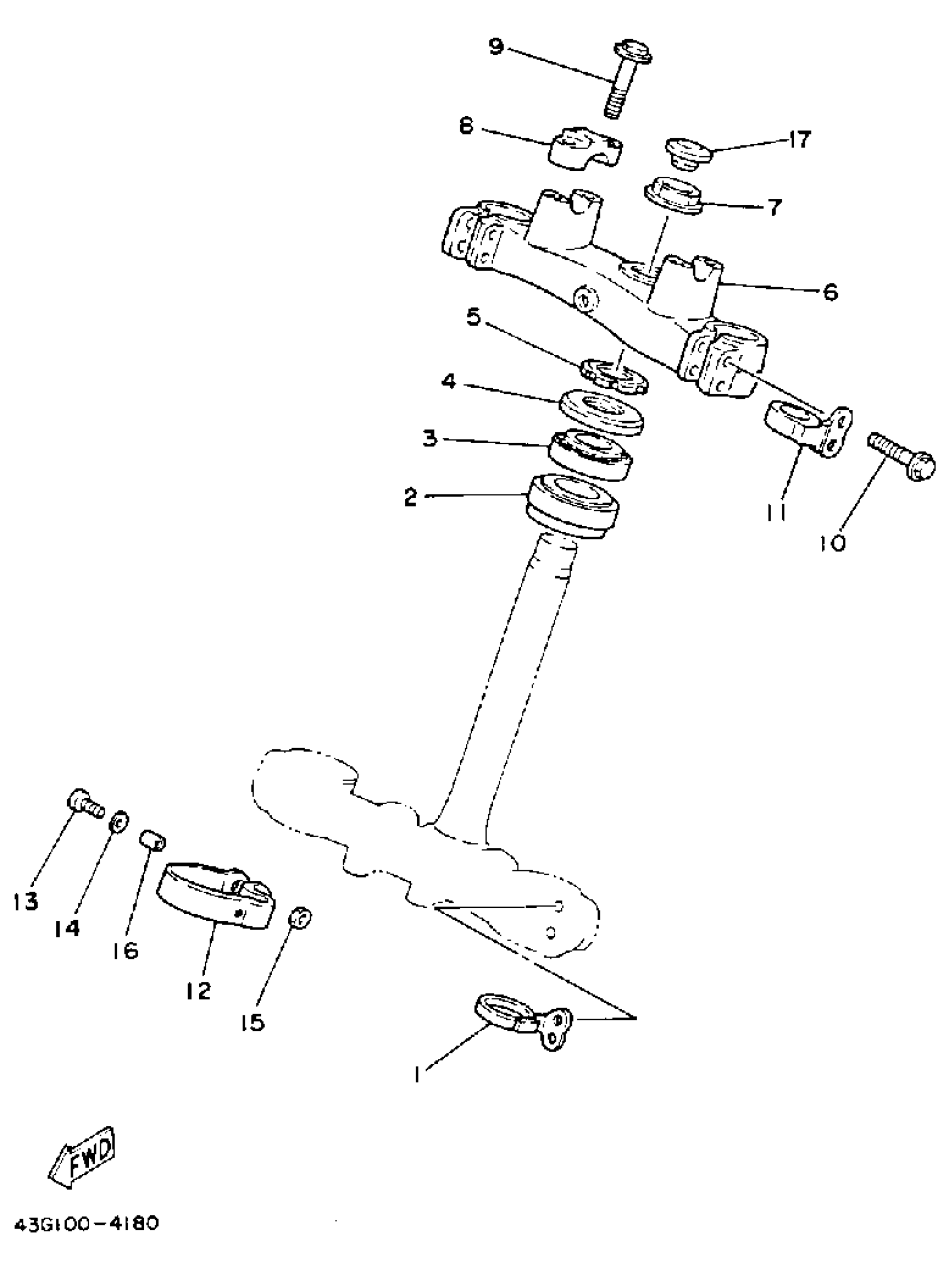

Find the part on the Steering diagram for your 1986 Yamaha IT200 (IT200S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha IT200 (IT200S) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GUIDE, WIRE

3R4-23389-00-00

1
Out of stock

2

1

$60.13

In stock

3

BRG, TAPERED ROLLER (409)

93332-00001-00

1
Out of stock

4

COVER, BALL RACE 2

1W1-23416-00-00

—

$25.83

In stock

5

NUT

90179-25004-00

1

$20.78

In stock

6

CROWN, HANDLE

39W-23435-01-98

1
Out of stock

7

NUT

90179-22330-00

1
Out of stock

8

HOLDER, HANDLE UPPER

1E6-23441-00-00

1

$22.38

In stock

9

BOLT, FLANGE

95817-08035-00

1

$6.68

In stock

10

BOLT, FLANGE

95814-08040-00

1

$3.15

In stock

11

HOLDER, WIRE

3R4-23317-00-00

1

$29.67

In stock

12

HOLDER, CABLE 1

26A-23318-00-00

1

$33.20

In stock

13

SCREW, PAN HEAD

98517-05030-00

1

$7.92

In stock

14

WASHER, PLAIN (646)

92990-05600-00

1
Out of stock

15

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

16

COLLAR(6E0)

90387-06M14-00

1

$5.46

In stock

17

CAP

34K-2319U-00-00

1
Out of stock
