1986 Yamaha IT200 (IT200S) Front Fork Diagram

← All diagrams

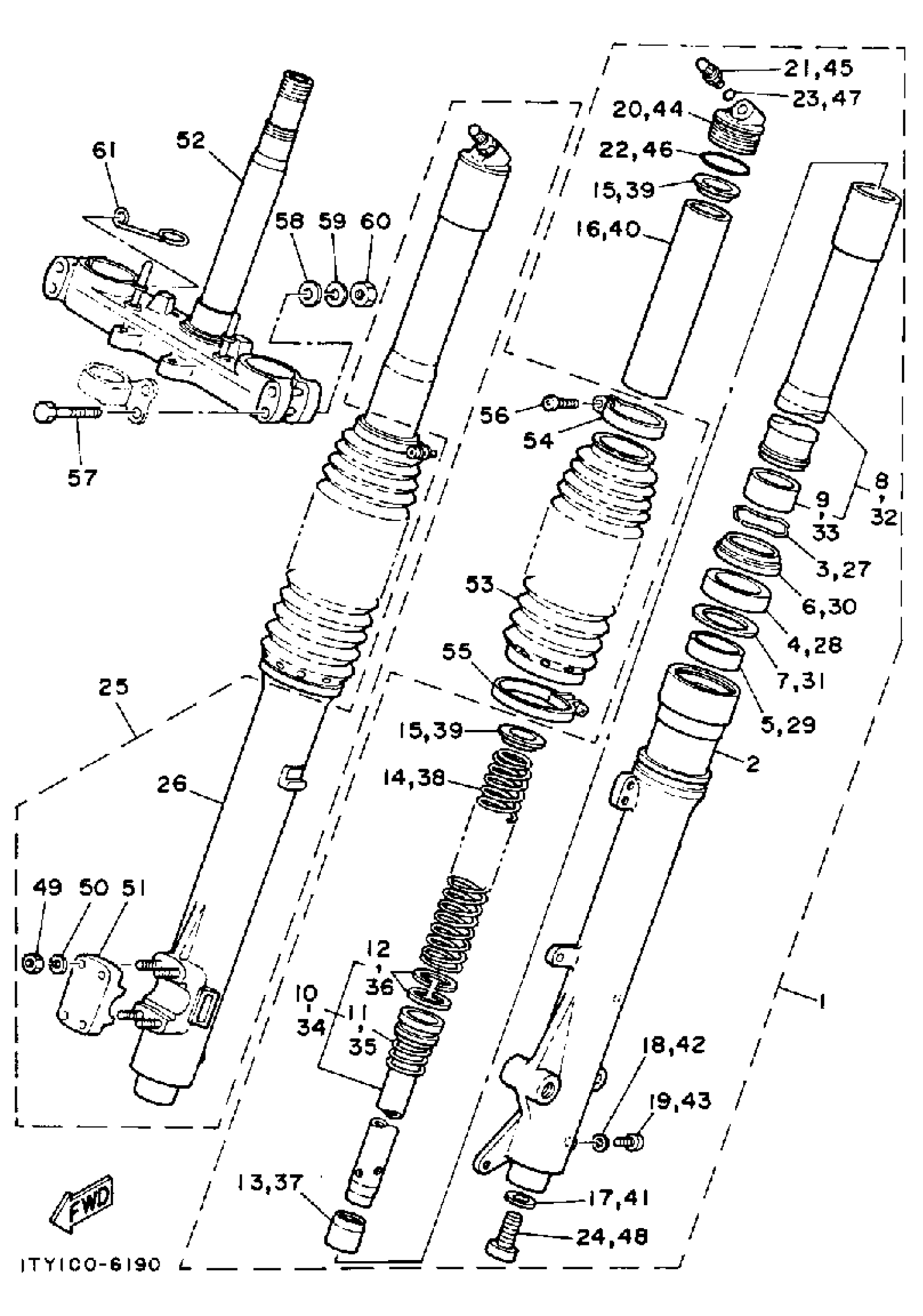

Find the part on the Front Fork diagram for your 1986 Yamaha IT200 (IT200S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha IT200 (IT200S) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRT. FORK ASSEMBLY LH

(1TY-23102-00-00)

1
Out of stock

2

. TUBE, OUTER LH

1TY-23126-00-00

1
Out of stock

3

RING, SNAP

4V4-23153-L0-00

1

$8.66

In stock

4

OIL SEAL

23X-23145-L0-00

1

$27.63

In stock

5

METAL, SLIDE 1

5EB-23125-00-00

1
Out of stock

6

SEAL, DUST

23X-23144-L0-00

1

$19.73

In stock

7

WASHER

4V4-23146-L0-00

1

$5.93

In stock

8

. INNER TUBE 1COMP 1

43M-23110-L0-00

1
Out of stock

9

. PISTON, FRONT FORK

4V4-23171-L0-00

1
Out of stock

10

CYLINDER, FRT.FORK

(1TY-23170-00-00)

1
Out of stock

11

.. SPRING, SUB

5X6-23152-L0-00

1
Out of stock

12

.. RING, PISTON FRONT FORK

4V4-23157-L0-00

1
Out of stock

13

. SPINDLE, TAPER

4V4-23173-L0-00

1
Out of stock

14

SPRING, FRTFRK SOFT

(43G-23141-10-00)

1
Out of stock

14

SPRING, FRTFRK HARD

(43G-23141-20-00)

1
Out of stock

14

. SPRING, FRTFRK STD (K=03)

43G-23141-L0-00

1
Out of stock

15

SEAT, SPRING UPPER

4V4-23142-L0-00

—
Out of stock

16

. UNAVAILABLE IN PRICE BOOK

43-G2311-8L-00

1
Out of stock

17

GASKET

4V4-23158-L0-00

—
Out of stock

18

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

19

. UNAVAILABLE IN PRICE BOOK (122-23119-01)

4H7-23119-01-00

1
Out of stock

20

BOLT,CAP

43M-23111-L0-00

1
Out of stock

21

AIR VALVE COMP.

23X-23190-L0-00

—
Out of stock

22

O-RING

4V4-23188-L1-00

—

$4.77

In stock

23

O-RING

3J2-23147-00-00

—
Out of stock

24

BOLT

4V4-23181-L0-00

—
Out of stock

25

UNAVAILABLE IN PRICE BOOK

1T-Y2310-30-00

1
Out of stock

26

. UNAVAILABLE IN PRICE BOOK

1T-Y2313-60-00

1
Out of stock

27

RING, SNAP

4V4-23153-L0-00

1

$8.66

In stock

28

OIL SEAL

23X-23145-L0-00

1

$27.63

In stock

29

METAL, SLIDE 1

5EB-23125-00-00

1
Out of stock

30

SEAL, DUST

23X-23144-L0-00

1

$19.73

In stock

31

WASHER

4V4-23146-L0-00

1

$5.93

In stock

32

. INNER TUBE 1COMP 1

43M-23110-L0-00

1
Out of stock

33

. PISTON, FRONT FORK

4V4-23171-L0-00

1
Out of stock

34

CYLINDER, FRT.FORK

(1TY-23170-00-00)

1
Out of stock

35

.. SPRING, SUB

5X6-23152-L0-00

1
Out of stock

36

.. RING, PISTON FRONT FORK

4V4-23157-L0-00

1
Out of stock

37

. SPINDLE, TAPER

4V4-23173-L0-00

1
Out of stock

38

SPRING, FRTFRK SOFT

(43G-23141-10-00)

1
Out of stock

38

SPRING, FRTFRK HARD

(43G-23141-20-00)

1
Out of stock

38

. SPRING, FRTFRK STD (K=03)

43G-23141-L0-00

1
Out of stock

39

SEAT, SPRING UPPER

4V4-23142-L0-00

—
Out of stock

40

SPACER

(43G-23118-L0-00)

1
Out of stock

41

GASKET

4V4-23158-L0-00

—
Out of stock

42

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

43

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

44

BOLT,CAP

43M-23111-L0-00

1
Out of stock

45

AIR VALVE COMP.

23X-23190-L0-00

—
Out of stock

46

O-RING

4V4-23188-L1-00

—

$4.77

In stock

47

O-RING

3J2-23147-00-00

—
Out of stock

48

BOLT

4V4-23181-L0-00

—
Out of stock

49

NUT(6TA)

95317-06600-00

—

$2.69

In stock

50

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

51

HOLDER, AXLE

1LX-23167-L0-00

1
Out of stock

52

UNDER BRACKETCOMP.

43G-23340-L0-00

1
Out of stock

53

BOOT, FRONT FORK

39X-23191-00-00

1
Out of stock

54

BAND

43M-23192-L0-00

—
Out of stock

55

BAND

3LD-23489-00-00

—

$26.00

In stock

56

SCREW, PAN HEAD

98507-04018-00

—
Out of stock

57

BOLT (1E6)

90101-08340-00

—

$2.72

In stock

58

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

59

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

60

NUT(6L2)

95333-08600-00

—

$3.20

In stock

61

GUIDE, CABLE

4V5-23389-00-00

—

$34.42

In stock
