1986 Yamaha IT200 (IT200S) Rear Shocks Diagram

← All diagrams

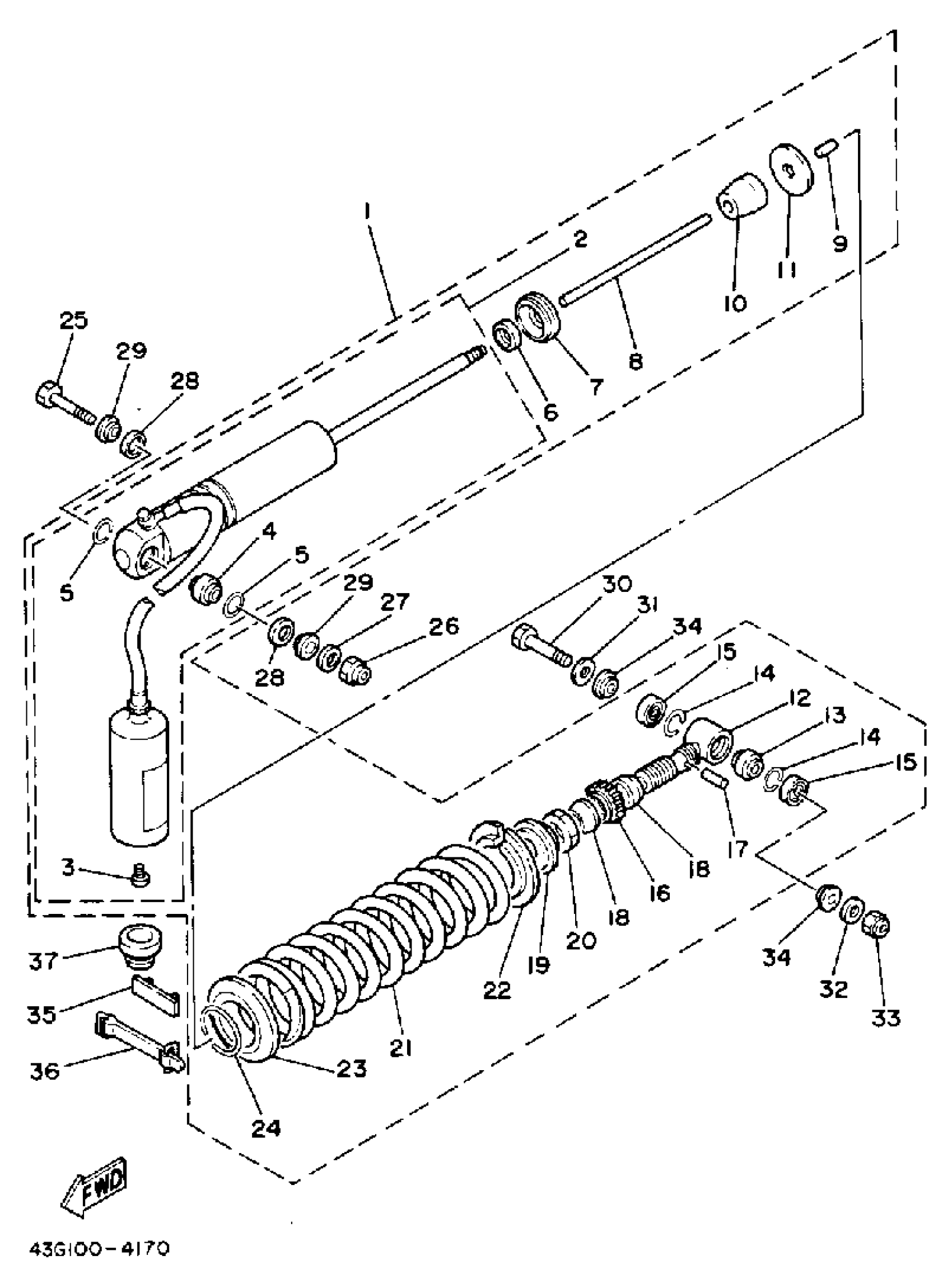

Find the part on the Rear Shocks diagram for your 1986 Yamaha IT200 (IT200S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha IT200 (IT200S) Rear Shocks Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHK/ABS ASSEMBLY, REARASSEMBLY, REAR

1TY-22210-00-26

1
Out of stock

2

. DAMPER SUB ASSEMBLY

1TY-22401-00-00

1
Out of stock

3

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

4

BEARING(4GG)

93399-999T3-00

1
Out of stock

5

CIRCLIP (23X)

93440-30113-00

1
Out of stock

6

. SEAL, DUST

29L-22475-00-00

1
Out of stock

7

. CAP, CASE

39K-22472-00-00

1
Out of stock

8

. ROD, PUSH

1TY-22489-00-00

1
Out of stock

9

. PIN, DOWEL

93604-21193-00

1
Out of stock

10

. BUMP, STOP

39X-22493-00-00

1
Out of stock

11

. SUPPORT, BUMP STOP

5X2-22228-00-00

1
Out of stock

12

UPPER BRACKET SUB ASSEMBLY

(39W-22409-00-00)

1
Out of stock

13

BEARING(4GG)

93399-999T3-00

1
Out of stock

14

CIRCLIP (23X)

93440-30113-00

1
Out of stock

15

OIL SEAL (23X)

93104-18077-00

1
Out of stock

16

. NUT, ADJUSTING

5X3-22497-00-00

1
Out of stock

17

. PIN, DOWEL

93604-26132-00

1
Out of stock

18

. COVER

3R4-22221-01-00

1
Out of stock

19

. SEAT, SPRING UPPER

3R4-22213-00-00

1
Out of stock

20

NUT, HEXAGON (29L)

90170-20320-00

—
Out of stock

21

. SPRING, MXS STD (K=55)

43G-22212-00-26

1
Out of stock

21

SPRING, MXS SOFT

(43G-22212-10-26)

1
Out of stock

21

SPRING, MXS HARD (K=6.0)

43G-22212-20-26

1
Out of stock

22

GUIDE, SPRING 1

3P6-22214-10-00

—
Out of stock

23

. SEAT, SPRING LOWER

38V-22223-00-00

1
Out of stock

24

CIRCLIP, OUTER

(93440-45135-00)

1
Out of stock

25

BOLT

90109-10704-00

1
Out of stock

26

NUT, SELF LOCKING (23X)

90185-10120-00

—
Out of stock

27

WASHER (7A9)

90201-100F7-00

—

$6.38

In stock

28

COVER

23X-22211-00-00

—
Out of stock

29

COLLAR (23X)

90387-127G8-00

—

$9.89

In stock

30

BOLT

90109-10700-00

1
Out of stock

31

WASHER, PLATE

90201-12027-00

—

$6.23

In stock

32

WASHER, PLATE(6TC)

90201-10M05-00

—
Out of stock

33

NUT, SELF LOCKING (23X)

90185-10120-00

—
Out of stock

34

COLLAR (23X)

90387-126H8-00

—
Out of stock

35

DAMPER, SUB TANK

24X-22261-00-00

—

$7.97

In stock

36

HOLDER, SUB TANK

24X-22262-00-00

1
Out of stock

37

GROMMET (3R4)

90480-22263-00

—

$3.78

In stock
