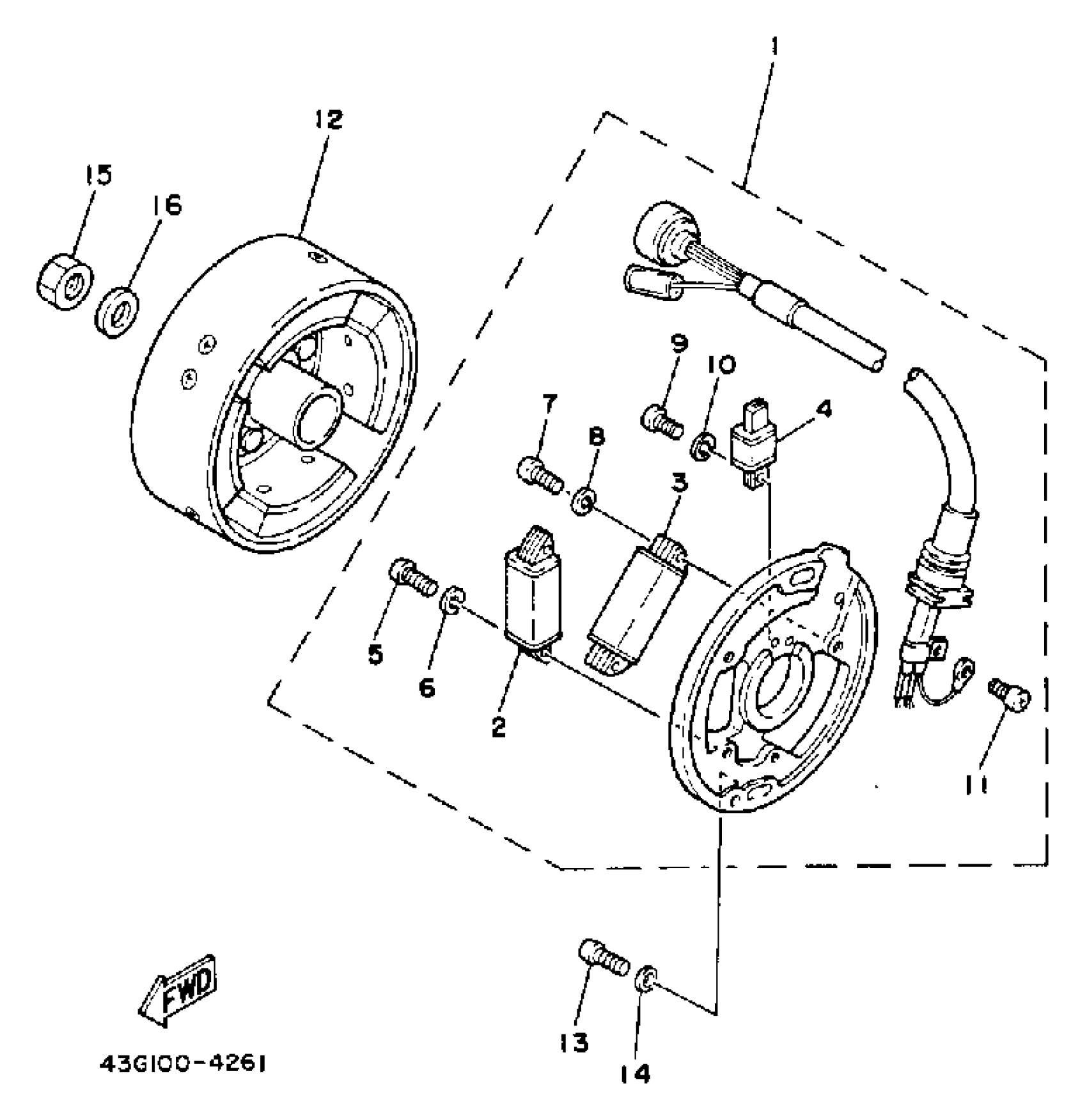

Yamaha IT200S (IT200) 1986 GENERATOR Diagram

#

Description
Price

1

STATOR ASSEMBLY

43G-85510-21-00

Unavailable

2

. COIL, CHARGE

23X-85520-21-00

Unavailable

3

. COIL, LIGHTING 1

43G-85513-20-00

Unavailable

4

. COIL, PULSER

43G-85580-21-00

Unavailable

5

SCREW, PAN HEAD(GA5)

98580-04014-00

$2.60

6

WASHER, PLAIN (646)

92990-04600-00

$0.91

7

SCREW, PAN

98507-04030-00

$1.64

8

WASHER, PLAIN (646)

92990-04600-00

$0.91

9

SCREW, PAN HEAD(GA5)

98580-04014-00

$2.60

10

WASHER, PLAIN (646)

92990-04600-00

$0.91

11

SCREW, PAN HEAD(3XP)

98517-04006-00

$3.86

12

ROTOR ASSEMBLY

43G-85550-21-00

Unavailable

13

SCREW, PAN

98507-06014-00

$5.76

14

WASHER, PLATE (4H7)

90201-061A5-00

$5.47

15

NUT(55K)

90170-12347-00

$7.88

16

WASHER, PLATE (583)

90201-12593-00

Unavailable
