1986 Yamaha IT200 (IT200S) Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1986 Yamaha IT200 (IT200S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

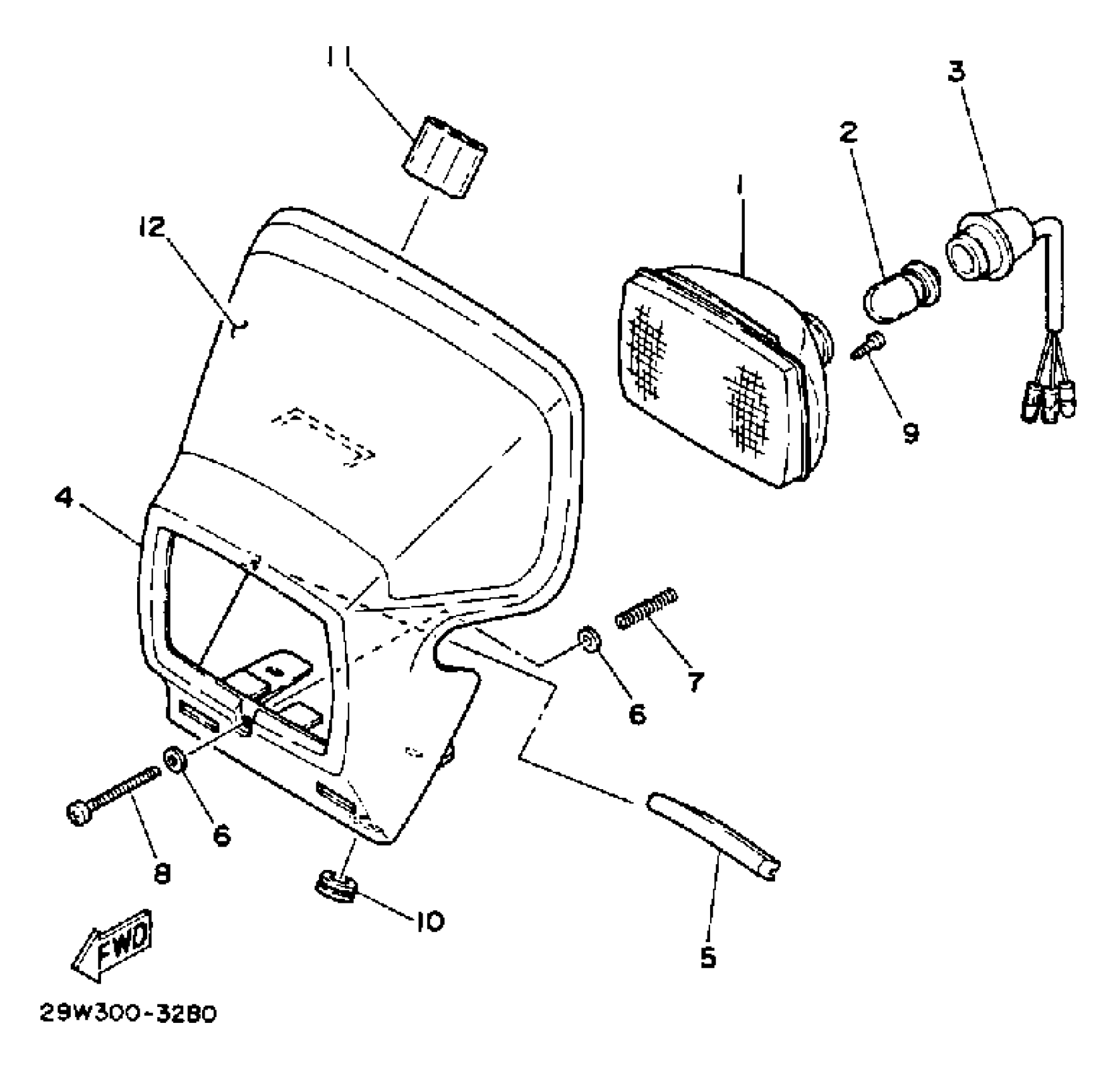

1986 Yamaha IT200 (IT200S) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LENS ASSY

18A-84120-00-00

—

$25.91

In stock

2

. BULB, HL 6V25/25W

527-84114-09-XX

1
Out of stock

3

SOCKET CORD ASSEMBLY

26A-84140-00-00

1
Out of stock

4

BODY, HEADLIGHT (26A-84111-00)

26A-84111-01-00

1
Out of stock

5

DAMPER, HEADLIGHT STAY

26A-84143-00-00

1
Out of stock

6

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

7

SPRING, SCREW

18A-84132-00-00

1
Out of stock

8

SCREW, RIM ADJUSTING

18A-84131-00-00

—
Out of stock

9

SCREW, PAN TAP.2 SLIT

97707-40610-00

1
Out of stock

10

DAMPER, SIDE COVER (437)

90480-12053-00

1

$5.78

In stock

11

DAMPER

4V5-83592-00-00

1
Out of stock

12

EMBLEM, HEADLIGHT

26A-84141-00-00

1
Out of stock
