1985 Suzuki GV700GL Starting Motor Diagram

← All diagrams

Find the part on the Starting Motor diagram for your 1985 Suzuki GV700GL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

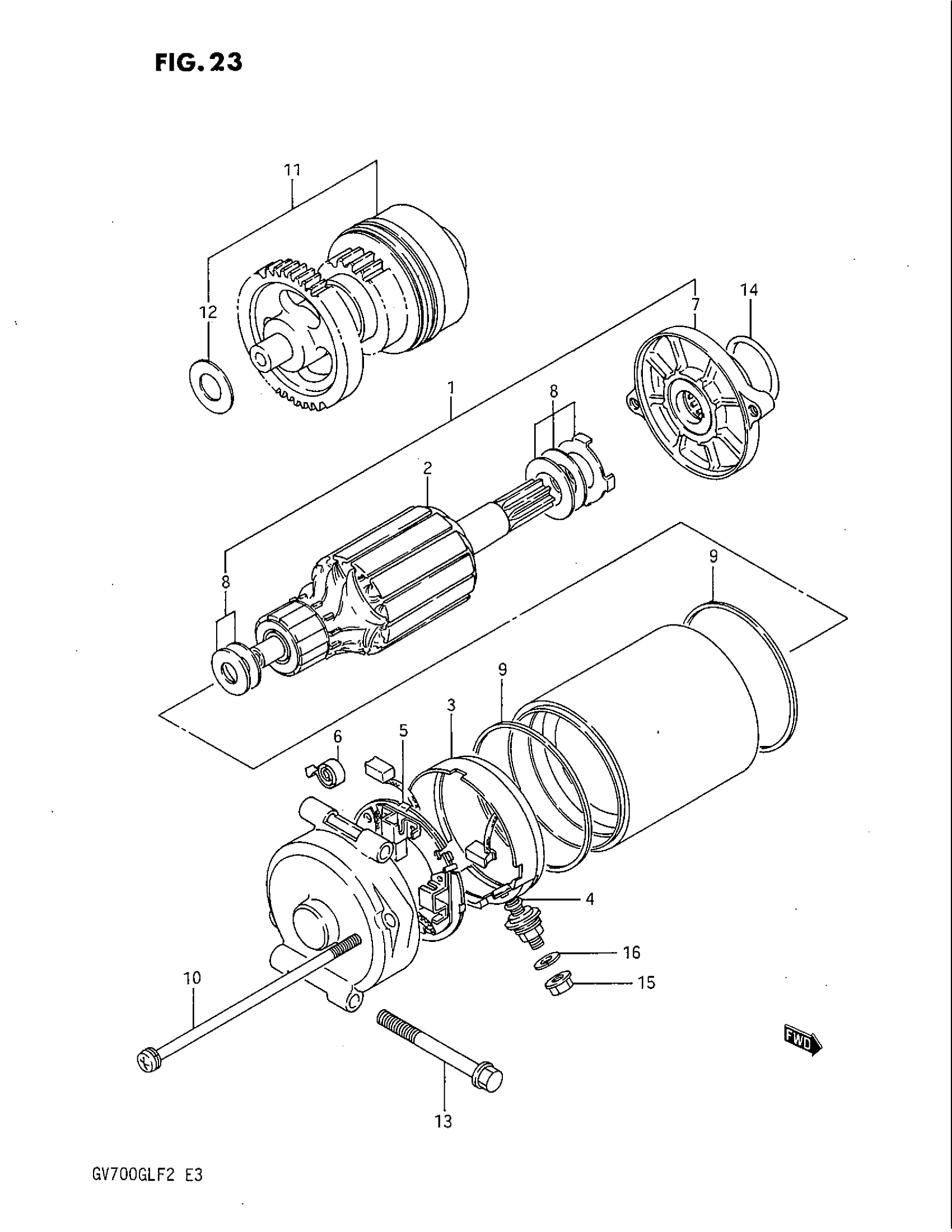

1985 Suzuki GV700GL Starting Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MOTOR ASSY, STARTING | Includes Item(s) 2 - 10

31100-05A00

1
Out of stock

2

ARMATURE

31311-05A00

1
Out of stock

3

TERMINAL SET, BRUSH (+) This part replaces 31130-05A00.

31130-06B00

1
Out of stock

4

O RING

31143-49040

1
Out of stock

5

HOLDER SET, BRUSH (-) This part replaces 31132-05A00.

31132-06B00

1
Out of stock

6

SPRING, BRUSH

31135-49040

4
Out of stock

7

BRACKET SET

31150-05A00

1
Out of stock

8

SHIM SET

31360-05A00

1
Out of stock

9

SEAL RING

31264-49040

2
Out of stock

10

BOLT This part replaces 31280-05A00.

31280-06B00

2
Out of stock

11

PINION, STARTING MOTOR | Includes Item(s) 12

31370-05A00

1
Out of stock

12

1

$2.23

In stock

13

BOLT This part replaces 01547-06605.

01547-0660B

2
Out of stock

14

.O-RING (D:3,ID:24.5)

09280-24003

1
Out of stock

15

NUT This part replaces 08310-11066.

08310-0006A

1
Out of stock

16

1

$1.97

In stock
