1985 Suzuki GV700GL Pilot Lamp BOX Diagram

← All diagrams

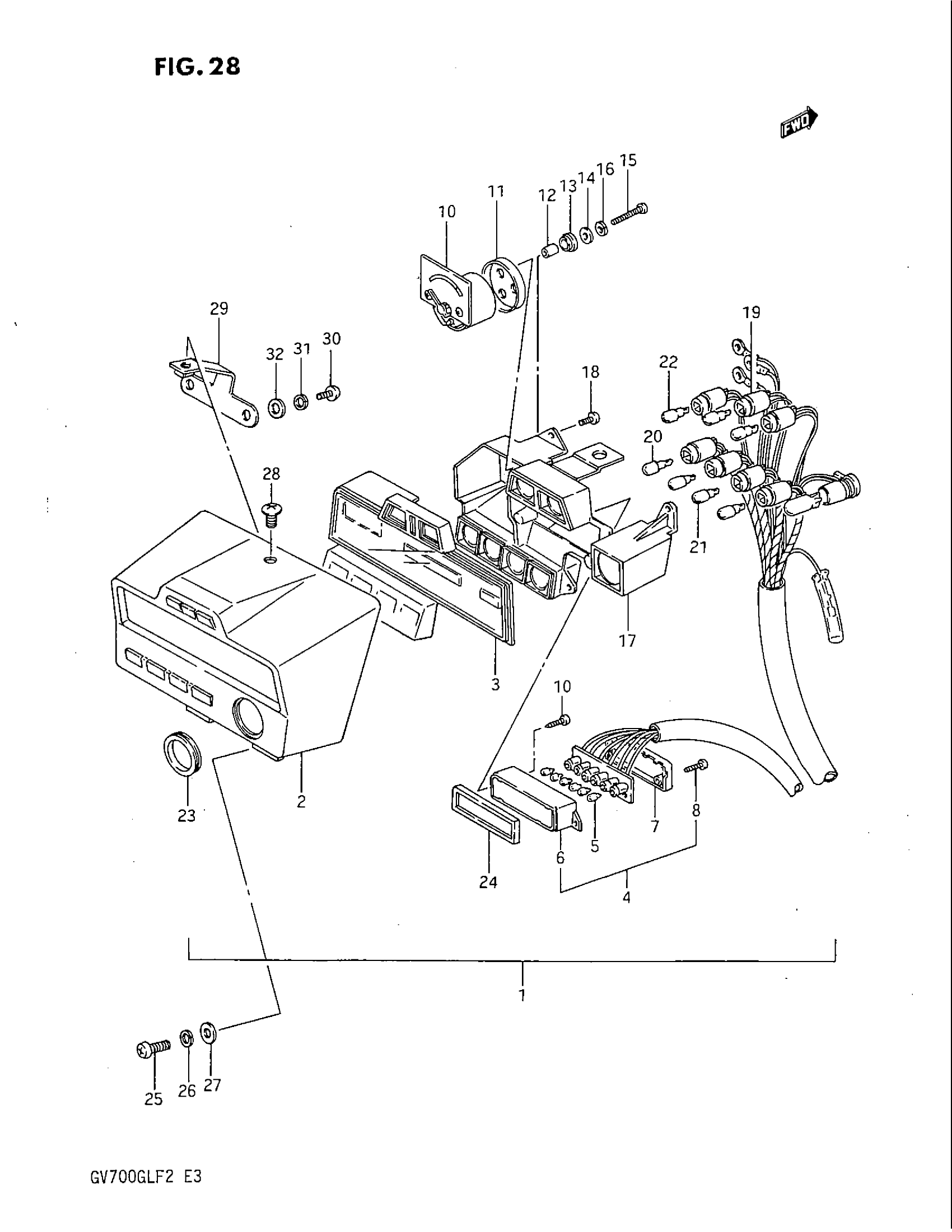

Find the part on the Pilot Lamp BOX diagram for your 1985 Suzuki GV700GL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Suzuki GV700GL Pilot Lamp BOX Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOX ASSY, PILOT LAMP | Includes Item(s) 2 - 24

36380-05A00

1
Out of stock

2

COVER SET, PILOT BOX This part replaces 36381-05A00.

36300-05850

1
Out of stock

3

COVER SET, PILOT BOX This part replaces 36382-05A00.

36300-05850

1
Out of stock

4

INDICATOR, GEAR POSITION

36450-05A00

1
Out of stock

5

BULB

09471-12071

6
Out of stock

6

CASE

36452-05A00

1
Out of stock

7

COVER

36454-45100

1
Out of stock

8

NO DESCRIPTION AVAILABLE This part replaces 36456-45100.

03511-03146

2
Out of stock

9

SCREW This part replaces 36456-33220.

35625-01A00

2
Out of stock

10

GAUGE, WATER TEMPERATURE

34420-05A00

1
Out of stock

11

PLATE

36391-05A00

1
Out of stock

12

SPACER

36397-05A00

3
Out of stock

13

CUSHION

36384-05A00

3
Out of stock

14

WASHER

34384-33220

3
Out of stock

15

SCREW

02112-03306

3
Out of stock

16

LOCK WASHER This part replaces 08321-21036.

08321-2103B

3
Out of stock

17

CASE, LOWER

36383-05A00

1
Out of stock

18

SCREW

02142-03126

5
Out of stock

19

SOCKET

36394-05A00

1
Out of stock

20

BULB (12V,3W)

09471-12103

6
Out of stock

21

.BULB (12V1.7W)

09471-12108

1
Out of stock

22

BULB (12V,3.4W)

09471-12028

1
Out of stock

23

CUSHION, IGNITION SWITCH

36395-05A00

1
Out of stock

24

GASKET

36396-05A00

1
Out of stock

25

SCREW This part replaces 02112-06165.

02112-0616A

2
Out of stock

26

2

$1.97

In stock

27

.WASHER This part replaces 08322-21065.

08322-0106B

2
Out of stock

28

SCREW This part replaces 02142-06125.

02142-0612A

1
Out of stock

29

BRACKET, PILOT BOX

36398-05A00

1
Out of stock

30

2

$1.55

In stock

31

LOCK WASHER This part replaces 08321-21055.

08321-0105A

2
Out of stock

32

2

$1.97

In stock
