Description

Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 13

35100-05A30-999

Unavailable

2

RIM

35111-15530

Unavailable

3

UNIT

35121-05A30

Unavailable

4

SCREW

09125-05102

$1.61

5

NUT

35155-48510

$2.58

6

CUSHION

35139-45230

$2.25

7

SPACER

35133-45230

$3.72

8

WASHER (5.5X18X1) This part replaces 35138-45230.

09160-05045

$1.95

9

SCREW This part replaces 35151-15510.

09125-04020

$2.72

10

SPRING

35154-27630

Unavailable

11

WASHER

35157-27630

$3.67

12

NUT

35135-45600

$4.12

13

COVER, SOCKET

35173-45200

Unavailable

14

BULB (12V,60/55W,H4) | EXECUTED LOCALLY

09471-12060

$22.69

15

SCREW

09127-05013

$1.38

16

REFLEX REFLCTOR, FRONT SIDE

35950-43431

$20.13

17

NUT This part replaces 08316-16056.

08316-1005A

$2.19

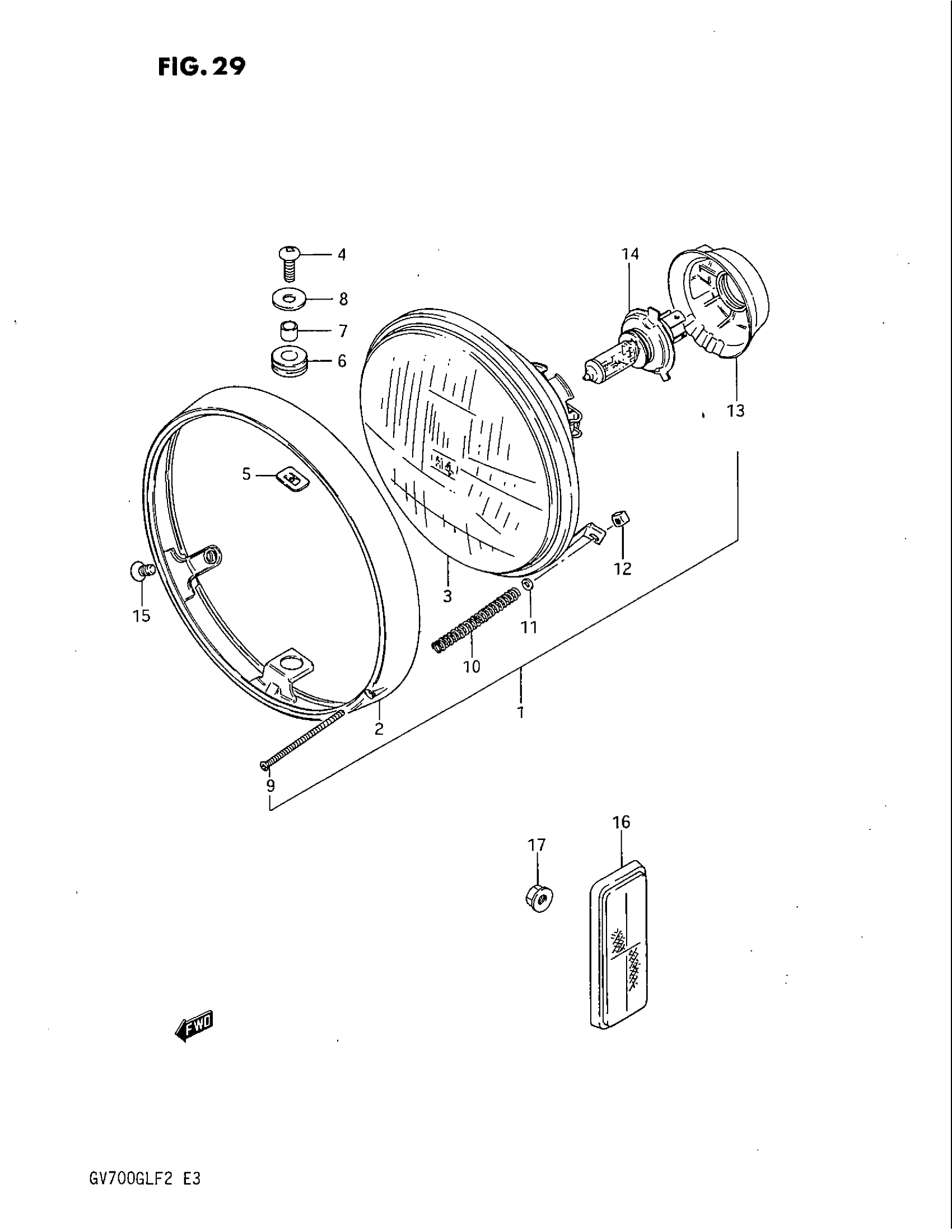

Suzuki GV700GL (1985) HEADLAMP Diagram

HEADLAMP ASSY | Includes Item(s) 2 - 13

RIM

UNIT

SCREW

NUT

CUSHION

SPACER

WASHER (5.5X18X1) This part replaces 35138-45230.

SCREW This part replaces 35151-15510.

SPRING

WASHER

NUT

COVER, SOCKET

BULB (12V,60/55W,H4) | EXECUTED LOCALLY

SCREW

REFLEX REFLCTOR, FRONT SIDE

NUT This part replaces 08316-16056.
