1985 Suzuki GV700GL Gear Shifting Diagram

← All diagrams

Find the part on the Gear Shifting diagram for your 1985 Suzuki GV700GL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

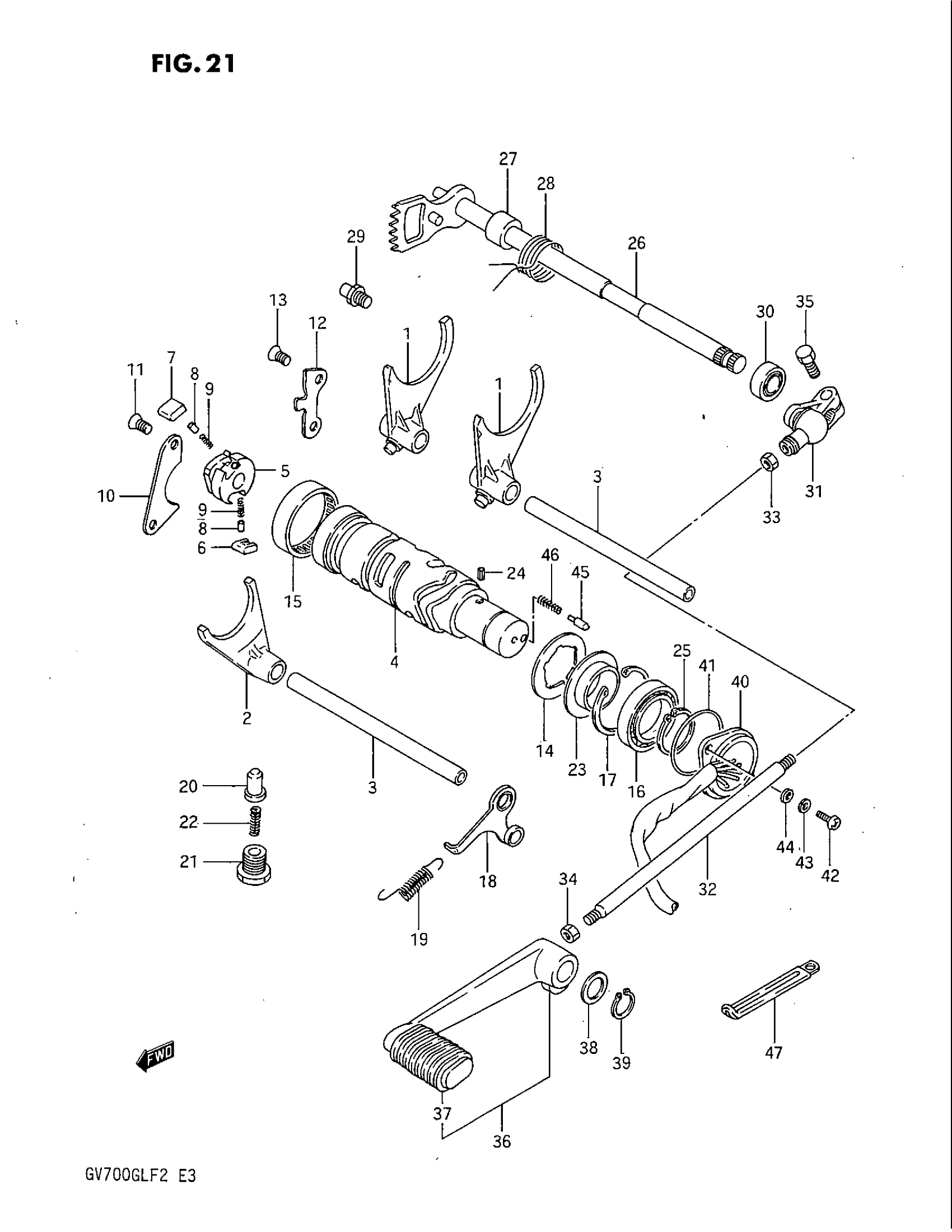

1985 Suzuki GV700GL Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK, DRIVEN GEAR SHIFTING

25211-05A01

2
Out of stock

2

FORK, DRIVE GEAR SHIFTING

25231-05A00

1
Out of stock

3

NO DESCRIPTION AVAILABLE This part replaces 25411-05A00.

25411-05A01

2
Out of stock

4

CAM, GEAR SHIFTING

25310-07A00

1
Out of stock

5

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-31301.

25322-31310

1
Out of stock

6

PAWL, GEAR SHIFT NO.1 This part replaces 25323-34200.

25323-34201

1
Out of stock

7

PAWL, GEAR SHIFT NO.2 This part replaces 25324-34200.

25324-34201

1
Out of stock

8

PIN

09261-05003

2
Out of stock

9

SPRING

09440-04003

2
Out of stock

10

LIFTER, PAWL

25331-05A00

1
Out of stock

11

SCREW This part replaces 02122-06128.

02122-06127

2
Out of stock

12

GUIDE, CAM

25341-05A00

1
Out of stock

13

SCREW This part replaces 02122-06128.

02122-06127

2
Out of stock

14

WASHER

09167-30007

1
Out of stock

15

BEARING, RH

09263-43001

1
Out of stock

16

BEARING This part replaces 08110-69050.

08113-69050

1
Out of stock

17

CIRCLIP This part replaces 08331-41428.

08331-41429

1
Out of stock

18

STOPPER, CAM

25350-05A00

1
Out of stock

19

SPRING

09443-09020

1
Out of stock

20

STOPPER, GEAR SHIFT CAM NO.2 This part replaces 25351-31302.

25351-30010

1
Out of stock

21

HOLDER, STOPPER

25354-30000

1
Out of stock

22

SPRING

09440-06027

1
Out of stock

23

PLATE, STOPPER

25381-38400

1
Out of stock

24

PIN This part replaces 06211-04063.

04221-04069

1
Out of stock

25

CIRCLIP, REAR FINAL DRIVE This part replaces 08331-31258.

08331-31256

1
Out of stock

26

NO DESCRIPTION AVAILABLE This part replaces 25510-05A01.

25510-05A02

1
Out of stock

27

SPACER

09180-12068

1
Out of stock

28

SPRING

09444-26020

1
Out of stock

29

STOPPER, ARM This part replaces 25671-01000.

25671-01011

1
Out of stock

30

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

1
Out of stock

31

ARM,GEAR SHIFT This part replaces 25520-09301.

25520-09302

1
Out of stock

32

ROD, GEAR SHIFT LINK This part replaces 25525-07A01.

25525-07A10

1
Out of stock

33

NUT

09140-06011

1
Out of stock

34

.NUT This part replaces 08310-11068.

08310-00067

1
Out of stock

35

BOLT This part replaces 01107-06208.

01500-06207

1
Out of stock

36

LEVER ASSY, GEAR SHIFTING | Includes Item(s) 37

25600-07A00

1
Out of stock

37

COVER This part replaces 25652-49000.

25652-20C00

1
Out of stock

38

WASHER

09160-12011

1
Out of stock

39

CIRCLIP This part replaces 08331-31128.

08331-3112A

1
Out of stock

40

BODY, GEAR SHIFTING SWITCH

37720-31301

1
Out of stock

41

O RING

09280-36001

1
Out of stock

42

SCREW

09125-05102

2
Out of stock

43

LOCK WASHER This part replaces 08321-21058.

08321-0105A

2
Out of stock

44

WASHER This part replaces 08322-21058.

08322-01057

2
Out of stock

45

CONTACT, SWITCH

09209-05011

1
Out of stock

46

SPRING

09440-04010

1
Out of stock

47

CLAMP(L:80) This part replaces 09404-06415.

09404-06036

2
Out of stock
