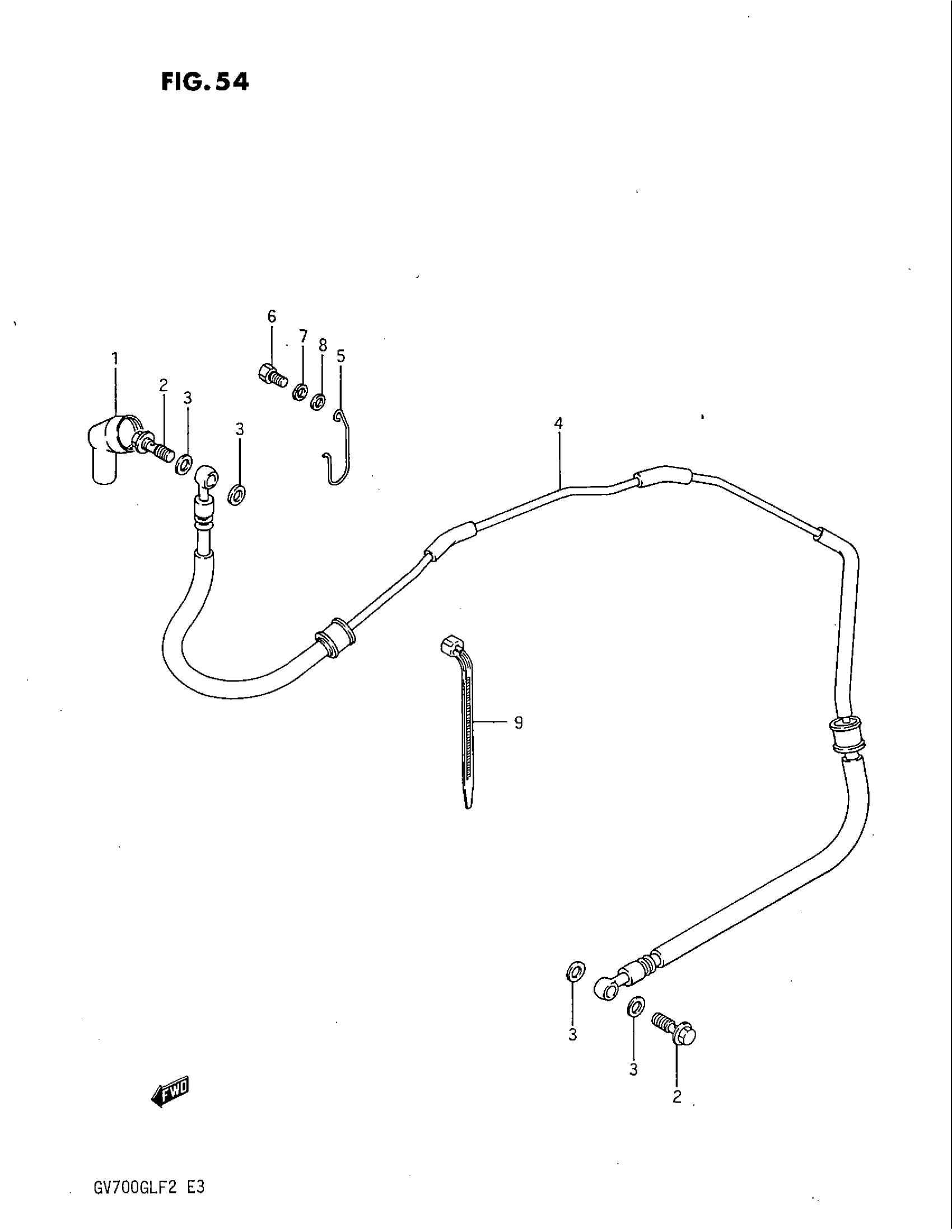

Suzuki GV700GL (1985) CLUTCH HOSE Diagram

#

Description

Price

1

BOOT, MASTER CYLINDER This part replaces 59711-18400.

59711-49001

$7.07

2

BOLT

09360-10017

$3.08

3

WASHER (10X15X1.5)

09161-10009

$1.83

4

HOSE, CLUTCH

59910-05A02

Unavailable

5

GUIDE

59541-05A00

Unavailable

6

BOLT This part replaces 01107-06128.

01500-06127

$1.97

7

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

8

WASHER This part replaces 08322-21068.

08322-01067

$1.86

9

CLAMP

09407-18402

$2.21
