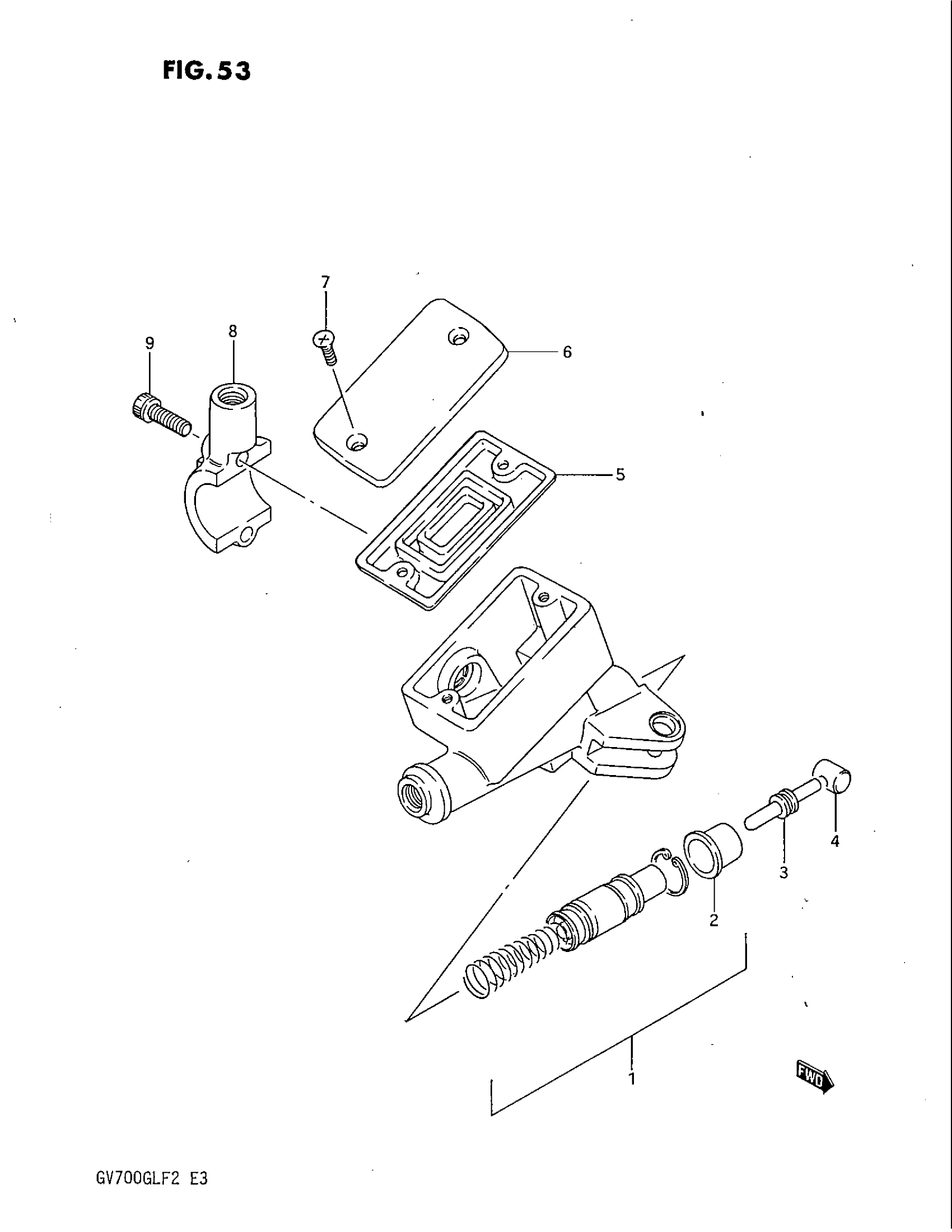

Suzuki GV700GL (1985) CLUTCH MASTER CYLINDER Diagram

#

Description
Price

MASTER CYLINDER ASSY, CLUTCH | Includes Item(s) 1 - 9

59800-05A00

Unavailable

1

PISTON & CUP SET

59800-08810

$36.14

2

BOOT

59666-44300

$5.30

3

PUSH ROD

59871-08A00

Unavailable

4

BUSH

59892-08A00

$4.63

5

DIAPHRAGM

59667-49460

$8.95

6

CAP This part replaces 69669-49350.

59669-41C00

$30.66

7

SCREW

69689-49300

$1.81

8

HOLDER

59671-05A00

$25.95

9

BOLT, FRONT BRG HOUSING This part replaces 07110-06205.

07130-0620B

$2.80
