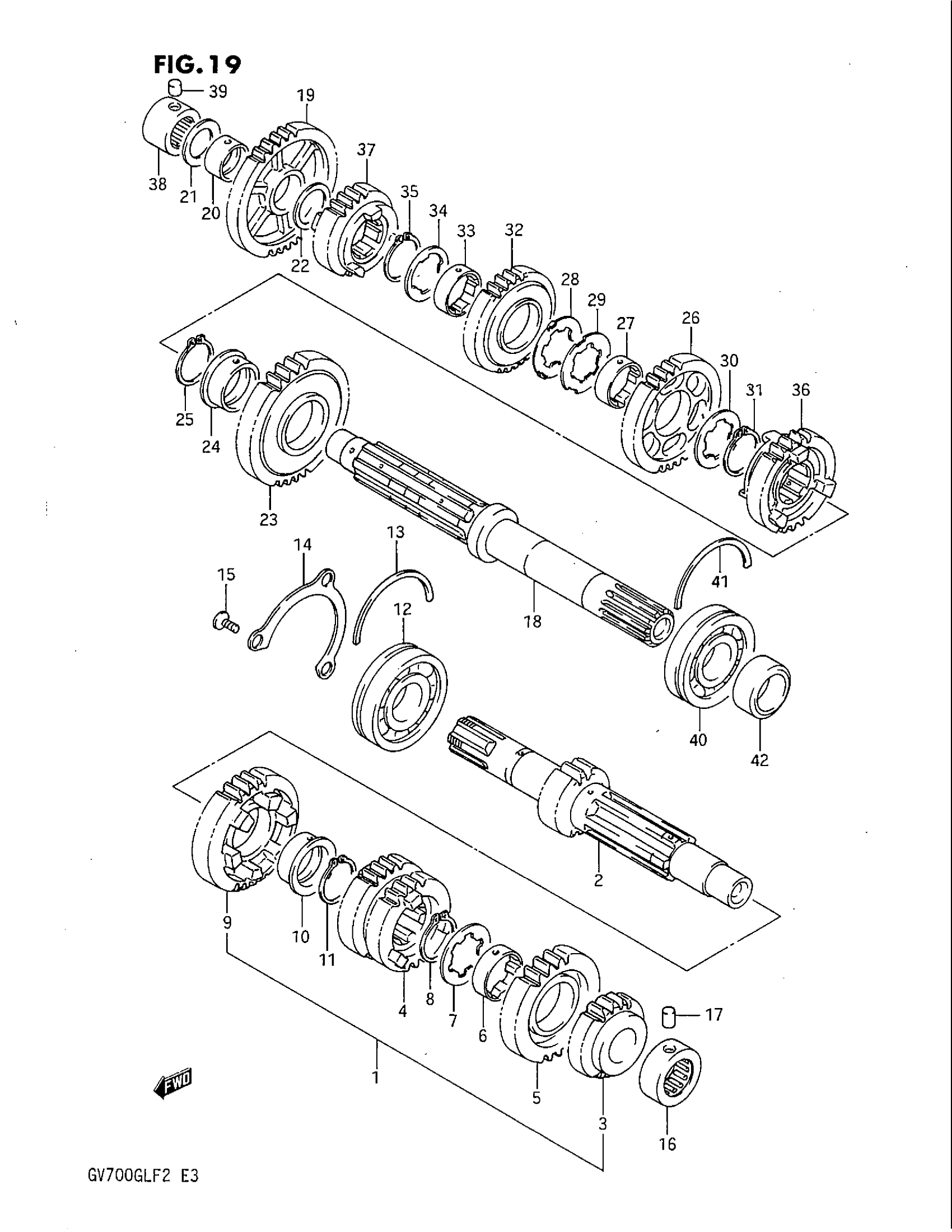

Suzuki GV700GL (1985) TRANSMISSION Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 11 This part replaces 24120-07A01.

24120-07A02

Unavailable

2

COUNTERSHAFT (NT:14)

24100-07851

Unavailable

3

GEAR, 2ND DRIVE (NT:18)

24221-07A01

Unavailable

4

GEAR, 3/4 DRIVE (NT:23/26)

24231-07A00

Unavailable

5

GEAR, 5TH DRIVE (NT:25)

24251-07A00

Unavailable

6

BUSH

24332-07A00

Unavailable

7

WASHER

09167-28001

$5.00

8

CIRCLIP This part replaces 08331-11289.

08331-31289

$2.28

9

GEAR, 6TH DRIVE (NT:31)

24261-07A00

Unavailable

10

BUSH

09301-28001

$21.67

11

CIRCLIP This part replaces 08331-11289.

08331-31289

$2.28

12

BEARING, LH This part replaces 09262-25051.

09262-25105

$53.00

13

C RING This part replaces 09390-62006.

09390-62012

$6.69

14

RETAINER

24741-05A00

Unavailable

15

SCREW This part replaces 02122-06168.

02122-06167

$1.45

16

BEARING, LH

09263-20054

Unavailable

17

PIN

04221-07209

$2.50

18

DRIVESHAFT

24131-07A03

Unavailable

19

GEAR, 1ST DRIVEN (NT:35)

24311-07A00

Unavailable

20

BUSH, 1ST DRIVEN This part replaces 09300-22005.

24312-02F00

$31.78

21

WASHER, RH

08211-20343

Unavailable

22

WASHER, LH

08211-22321

$4.18

23

GEAR, 2ND DRIVEN (NT:32)

24321-07A00

Unavailable

24

BUSH

09301-28001

$21.67

25

CIRCLIP This part replaces 08331-11289.

08331-31289

$2.28

26

GEAR, 3RD DRIVEN (NT:32)

24331-07A00

Unavailable

27

BUSH

24332-07A00

Unavailable

28

LOCK WASHER, RH

09169-28001

$4.18

29

LOCK WASHER, LH

09167-28002

$5.17

30

WASHER

09167-28001

$5.00

31

CIRCLIP This part replaces 08331-11289.

08331-31289

$2.28

32

GEAR, 4TH DRIVEN (NT:30)

24341-07A00

Unavailable

33

BUSH

24332-07A00

Unavailable

34

WASHER

09167-28001

$5.00

35

CIRCLIP This part replaces 08331-11289.

08331-31289

$2.28

36

GEAR, 5TH DRIVEN (NT:24)

24351-07A03

Unavailable

37

GEAR, 6TH DRIVEN (NT:25)

24361-07A03

Unavailable

38

BEARING, RH

09263-20040

$42.95

39

PIN

04221-07209

$2.50

40

BEARING, LH This part replaces 09262-25065.

09262-25105

$53.00

41

C RING This part replaces 09390-62006.

09390-62012

$6.69

42

SPACER

24136-45100

Unavailable
