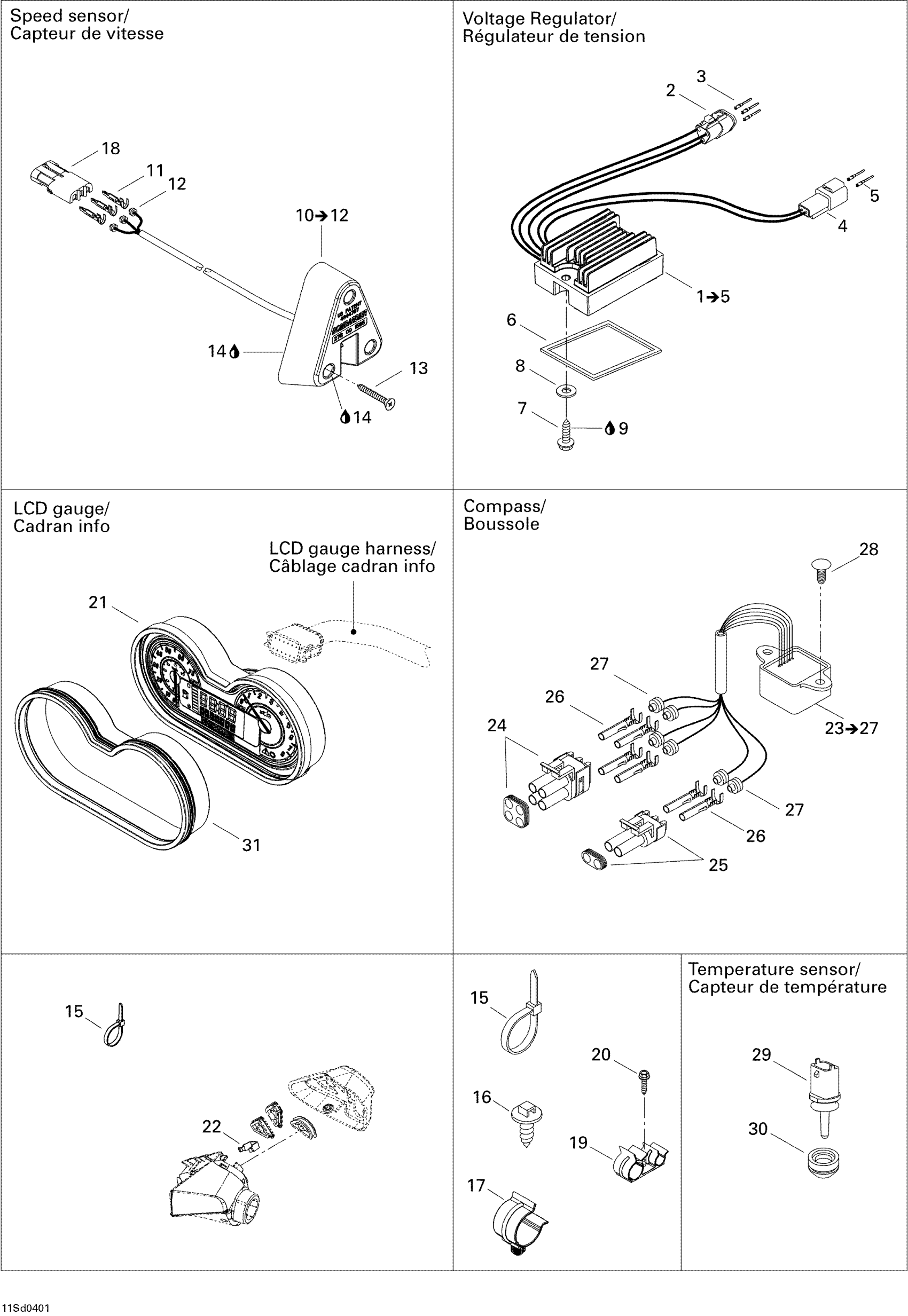

Sea-doo GTX 4-TEC, Special Supercharged, 2004 Electrical Accessories Diagram

#

Description
Price

1

REGULATOR - Call your local BRP dealership | Includes 11 to 15

278001969

Unavailable

2

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$27.58

3

Male Terminal

278000631

$4.00

4

Male Housing, 2 Circuits

409206900

$8.72

5

Male Terminal

515175568

$7.25

6

SEAL - Call your local BRP dealership

293250123

Unavailable

7

Hex. Screw 10-14 X 7/8”

211000023

$2.91

8

Stainless Flat Washer M6

234061600

$0.25

9

Loctite 271, 10 ml

293800005

$20.77

10

Speed Sensor

278001993

$143.62

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

14

Silicone Sealant 51388, 300 ml

296000309

$35.72

15

Tie-Rap 180 mm

414115200

$0.09

Tie Wrap 368 mm

293750008

$0.85

Tie-Rap 206 mm

293750027

$2.61

Tie Wrap 142 mm

293750002

$0.88

16

Mount Dart

293730040

$0.86

17

Cable Retainer

275500527

$2.68

18

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11
