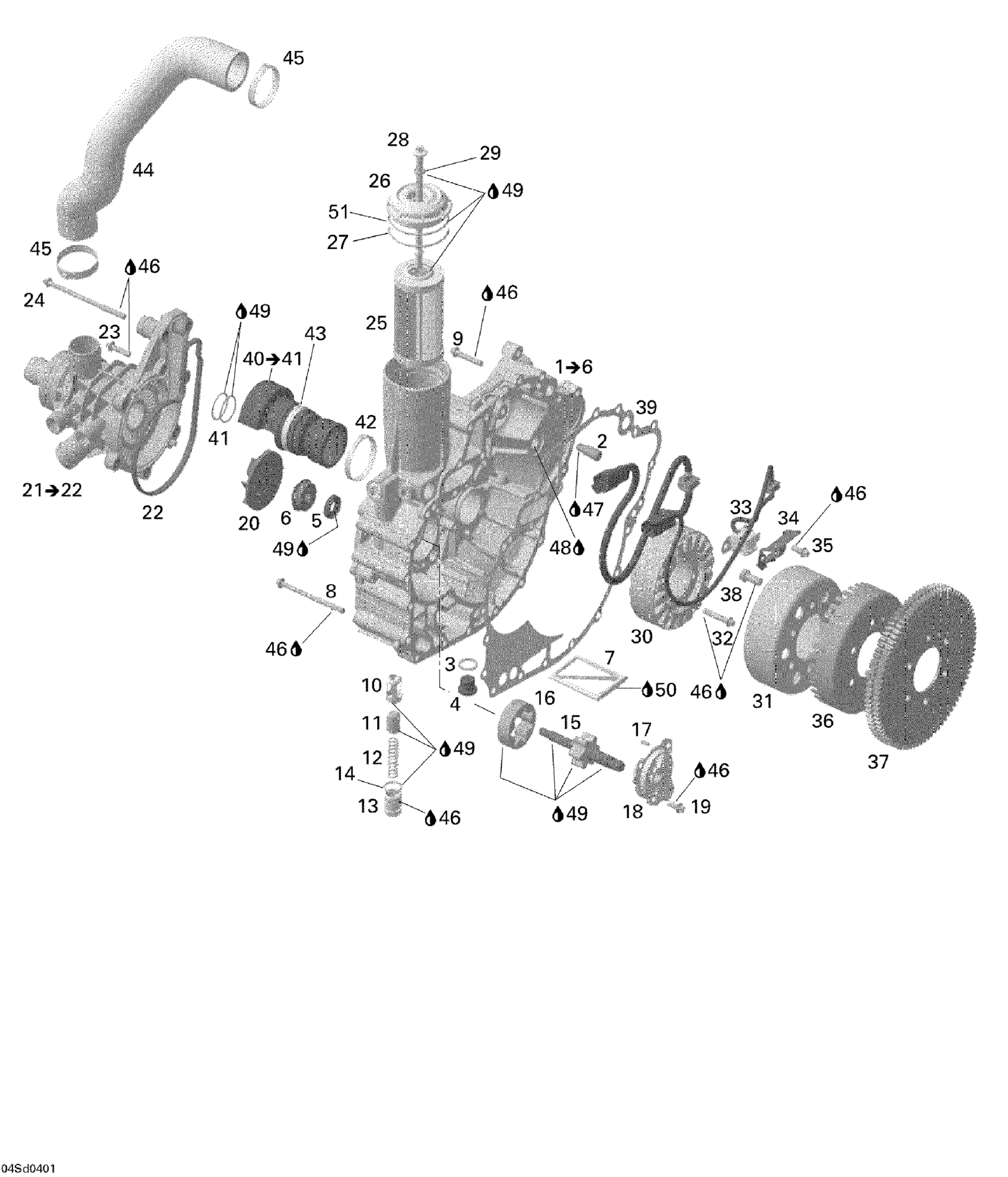

Sea-doo GTX 4-TEC, Special Supercharged, 2004 PTO Cover And Magneto Diagram

#

Description
Price

1

TIMING/DRIVE COVER ASS'Y - Call your local BRP dealership | Includes 1 to 6

420811579

Unavailable

2

Spray Nozzle

420856010

Unavailable

3

Gasket Ring

420430624

Unavailable

4

Plug Screw M16

420240233

Unavailable

5

Oil Seal

420650315

Unavailable

6

Rotary Seal

420650371

Unavailable

7

Oil Sieve

420956950

Unavailable

8

Torx Flange Screw M6 X 85

420641228

Unavailable

9

Torx Flange Screw M6 X 35

420641258

Unavailable

10

Valve Seat Sleeve

420256606

Unavailable

11

Piston Valve

420256638

Unavailable

12

Compression Spring

420939211

Unavailable

13

Plug Screw M20 X 1.5

420641052

Unavailable

14

O-Ring

420230890

Unavailable

15

Pump Shaft Ass'y

420837472

Unavailable

16

Oil Pump Rotor 16 mm

420956675

Unavailable

17

Needle Pin

420929070

Unavailable

18

Oil Pump Cover

420811591

Unavailable

19

Torx Flange Screw M6 X 16

420641048

Unavailable

20

Impeller

420922801

Unavailable

21

Water Pump Housing Ass'Y | Includes 26 to 27 This part replaces 420922686.

420922921

Unavailable

22

Water Pump Housing Gasket | Included in gasket kit

420950840

Unavailable

23

Torx Flange Screw M6 X 25

420641238

Unavailable

24

Torx Flange Screw M6 X 105

420641338

Unavailable

25

Oil Filter

420956741

Unavailable

26

Oil Filter Cover

420610329

Unavailable

27

O-Ring

420230923

Unavailable

28

Oil Filter Screw Kit

295501207

Unavailable

29

O-Ring

420950860

Unavailable

30

STATOR ASS'Y - Call your local BRP dealership

420889720

Unavailable

31

MAGNETO FLYWHEEL ASS'Y - Call your local BRP dealership

420889710

Unavailable

32

Torx Flange Screw M6 X 35

420641258

Unavailable

33

CRANKSHAFT SENSOR - Call your local BRP dealership

420664140

Unavailable

34

Retaining Plate

420926300

Unavailable

35

Torx Flange Screw M6 X 16

420641048

Unavailable

36

Trigger Wheel

420966851

Unavailable

37

Double Starter Gear 86/86 Teeth

420834485

Unavailable

38

Hex Screw

295501162

Unavailable

39

Timing Drive Cover Gasket (1603 NA) | Included in gasket kit

420931130

Unavailable

40

Ball Bearing With Bellows Ass'y | Includes 50 to 52

420832648

Unavailable

41

O-Ring

420631612

Unavailable

42

Gear Clamp

420851653

Unavailable

43

Gear Clamp 46.8-50.0MM

420853023

Unavailable

44

Formed Hose

420922822

Unavailable

45

Oetiker Clamp

420851687

Unavailable

46

Loctite 243, 10 ml

293800060

Unavailable

47

Loctite 648, 10 ml

420711400

Unavailable

48

Dow Corning 111, 150 g

413707000

Unavailable

49

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

50

Loctite 5910, 300 ml

293800081

Unavailable

51

O-Ring

420850500

Unavailable
