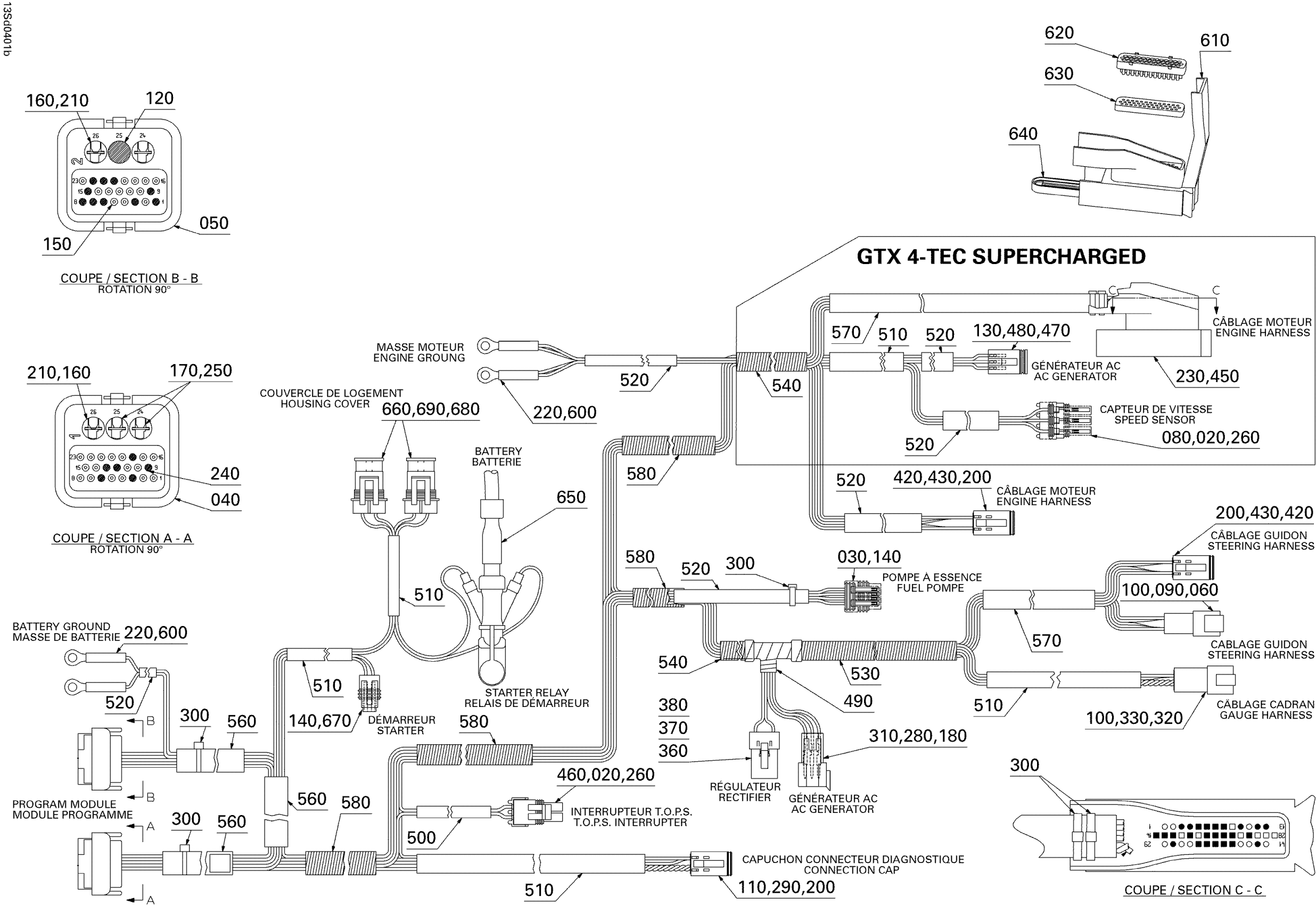

Sea-doo GTX 4-TEC, Special Supercharged, 2004 Wiring Harness Diagram

#

Description
Price

1-690

Main Wiring Harness | Includes 1 to 690

278001788

Unavailable

20

Female Terminal

278000223

Unavailable

30

MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership

278001308

Unavailable

40

Male Connector, 26 Circuits | Includes 16a - 17.

278000993

Unavailable

50

Male Terminal Housing, 26 Circuits

278001062

Unavailable

60

Male Terminal Housing, 6 Circuits

710001539

Unavailable

80

Male Housing, 3 Circuits

278000273

Unavailable

90

Female Lock, 6 Circuits

278000735

Unavailable

100

Male Terminal

278000631

Unavailable

110

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

Unavailable

120

SEAL - Call your local BRP dealership

409013900

Unavailable

130

FEMALE TERMINAL - Call your local BRP dealership

278001276

Unavailable

140

Female Terminal

278001114

Unavailable

150

Female terminal

278800995

Unavailable

160

Female terminal

278800994

Unavailable

170

FEMALE TERMINAL - Call your local BRP dealership

409011700

Unavailable

180

Male Terminal

515175823

Unavailable

200

Female Terminal

278000632

Unavailable

210

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

220

Open Barrel Terminal

278001392

Unavailable

230

MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership

278001751

Unavailable

240

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

250

Seal

278001223

Unavailable

260

Wire Seal

278000218

Unavailable

280

Male Lock, 3 Circuits

409207600

Unavailable

290

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

300

Tie Wrap 142 mm

293750002

Unavailable

310

Male Housing

278002378

Unavailable

320

Female Housing, 4 Circuits

278000635

Unavailable

330

Female Wedge, 4 Circuits

278000636

Unavailable

360

Female Terminal Housing, 2 Circuits

278001673

Unavailable

370

Female Lock, 2 Circuits

278001671

Unavailable

380

FEMALE TERMINAL - Call your local BRP dealership

515175260

Unavailable

420

Male Connector, 4 Circuits | CE

278000739

Unavailable

430

Male Lock, 4 Circuits | CE

278000738

Unavailable

450

FEMALE TERMINAL - Call your local BRP dealership

278001750

Unavailable

460

Male Connector, 2 Circuits

278000220

Unavailable

470

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

Unavailable

480

Female Lock

409207200

Unavailable

490

Not Available As Spare Part - Friction Washer

Unavailable

500

Not Available As Spare Part - Friction Washer

Unavailable

510

Not Available As Spare Part - Friction Washer

Unavailable

520

Not Available As Spare Part - Friction Washer

Unavailable

530

Not Available As Spare Part - Friction Washer

Unavailable

540

Not Available As Spare Part - Friction Washer

Unavailable

560

Not Available As Spare Part - Friction Washer

Unavailable

570

Not Available As Spare Part - Friction Washer

Unavailable

580

Not Available As Spare Part - Friction Washer

Unavailable

600

Not Available As Spare Part - Friction Washer

Unavailable

610

Not Available As Spare Part - Friction Washer

Unavailable

620

Not Available As Spare Part - Friction Washer

Unavailable

630

Not Available As Spare Part - Friction Washer

Unavailable

640

Not Available As Spare Part - Friction Washer

Unavailable

650

Battery Cable

278001861

Unavailable

660

Fuse, 30 Amperes

410917200

Unavailable

670

Male Connector, 2 Circuits

278001113

Unavailable

680

Fuse Holder

278001325

Unavailable

690

Female Terminal

710000357

Unavailable
