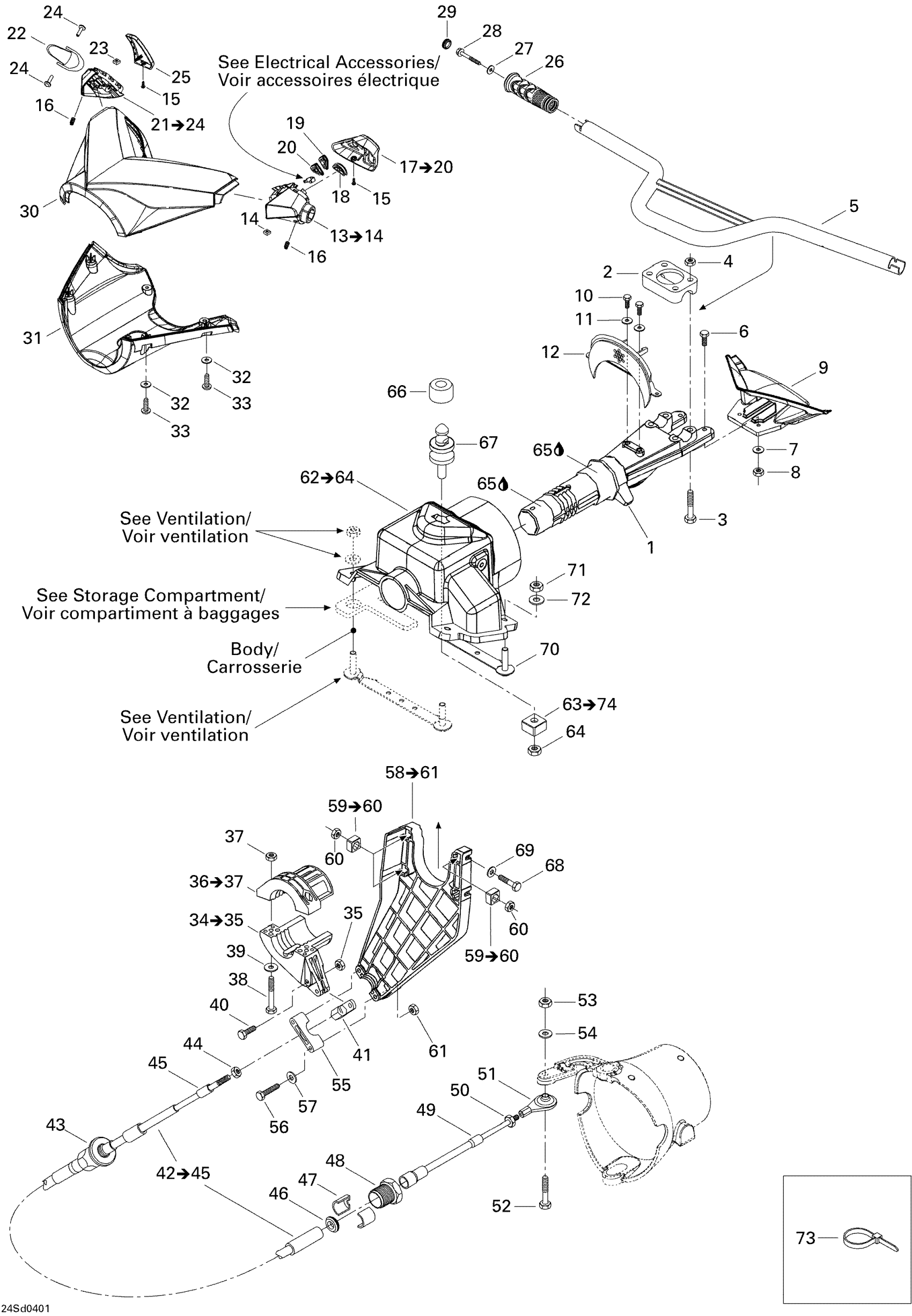

Sea-doo GTX 4-TEC, Special Supercharged, 2004 Steering System Diagram

#

Description
Price

1

Steering Stem

277000562400

Unavailable

2

STEERING CLAMP - Call your local BRP dealership

277000142

Unavailable

3

HEX. SCREW M8 X 50 - Call your local BRP dealership

207085060

Unavailable

4

Hex. Elastic Nut M8

232581600

Unavailable

5

Handlebar

277001012

Unavailable

6

Hex. Screw M6 X 30

207063060

Unavailable

7

Stainless Flat Washer M6

234061600

Unavailable

8

Hex. Elastic Stop Nut M6

232561600

Unavailable

9

Handle Pad Metalic Silver (M-519) | WAKE

277001100

Unavailable

10

HEX. FLANGED SCREW 1/4-20 X 1/2 - Call your local BRP dealership

211000036

Unavailable

11

Flat Washer M6, Stainless

234062600

Unavailable

12

PLATE - Call your local BRP dealership

277000549

Unavailable

13

HOUSING ASS'Y - Call your local BRP dealership | Includes 8 to 9

277001481

Unavailable

14

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

15

PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership

209630960

Unavailable

16

Socket Head Screw M6 X 16

250000036

Unavailable

17

Housing Cover Ass’Y | WAKE / Includes 17 to 21

277001103

Unavailable

18

Stop Knob

278001713

Unavailable

19

MODE KNOB - Call your local BRP dealership

278001714

Unavailable

20

SET KNOB - Call your local BRP dealership

278001715

Unavailable

21

THROTTLE HOUSING ASS'Y - Call your local BRP dealership | Includes 16 to 19

277001483

Unavailable

22

THROTTLE HANDLE - Call your local BRP dealership

277001485

Unavailable

23

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

24

PIN - Call your local BRP dealership

277000381

Unavailable

25

Throttle Housing Cover

277001102

Unavailable

26

Handle Grip Kit Yellow/Black This part replaces 277001162.

295500981

Unavailable

27

Flat Washer M6, Stainless

234062600

Unavailable

28

Hex. Screw M6 X 30, Scotch Grip

250000002

Unavailable

29

Black, Cap

277000203

Unavailable

30

UPPER STEERING COVER, BLACK - Call your local BRP dealership

277000952

Unavailable

31

LOWER STEERING COVER, BLACK - Call your local BRP dealership

277001145

Unavailable

32

Flat Washer M5, Stainless

234051600

Unavailable

33

Hex. Flange Screw K40 X 16

241141660

Unavailable

34

Steering Stem Arm | Includes 41 to 42

277000518

Unavailable

35

Hex. Elastic Stop Nut M6

232561600

Unavailable

36

Arm Thrust | Includes 43 to 44

277000519

Unavailable

37

Hex. Elastic Stop Nut M6

232561600

Unavailable

38

Hex. Screw M6 X 25

207162560

Unavailable

39

Flat Washer M6, Stainless

234062600

Unavailable

40

Hex. Screw M6 X 30

211000081

Unavailable

41

Ball Joint

277001180

Unavailable

42

Steering Cable Ass’Y | Includes 44 to 47

277000949

Unavailable

43

Ajustment Knob

277000782

Unavailable

44

Hex. Nut 1/4"-28

211100056

Unavailable

45

Terminal Wiper

277000441

Unavailable

46

Rubber Washer

293830063

Unavailable

47

Half Ring

277001527

Unavailable

48

Steering Cable Lock This part replaces 277000784.

277001729

Unavailable

49

Terminal Wiper

277000441

Unavailable

50

Hex. Nut 1/4"-28

211100056

Unavailable

51

Ball Joint

277000775

Unavailable

52

Hex. Screw M6 X 35

207063560

Unavailable

53

Hex. Elastic Stop Nut M6

232561600

Unavailable

54

Stainless Flat Washer M6

234061600

Unavailable

55

SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.

277001528

Unavailable

56

Hex. Screw M6 X 50

207065060

Unavailable

57

Stainless Flat Washer M6

234061600

Unavailable

58

CABLE SUPPORT - Call your local BRP dealership | Includes 56 to 58

277001522

Unavailable

59

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

Unavailable

60

Hex. Nut M6

232061600

Unavailable

61

Hex. Elastic Stop Nut M6

232561600

Unavailable

62

STEERING SUPPORT - Call your local BRP dealership | Includes 59 to 61

277001471

Unavailable

63

Nut Housing Ass’Y | Includes 64 to 65

271001115

Unavailable

64

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

65

Synthetic Grease, 400 G

293550010

Unavailable

66

RUBBER PAD - Call your local BRP dealership

293830078

Unavailable

67

Latch Stud

291001420

Unavailable

68

Hex. Forming Screw M6 X 20

207162060

Unavailable

69

Stainless Flat Washer M6

234061600

Unavailable

70

STEERING SUPPORT - Call your local BRP dealership

277001072

Unavailable

71

Hex. Elastic Nut M8

232581600

Unavailable

72

Stainless, Flat Washer 8 mm

234081600

Unavailable

73

Tie Wrap 368 mm

293750008

Unavailable
