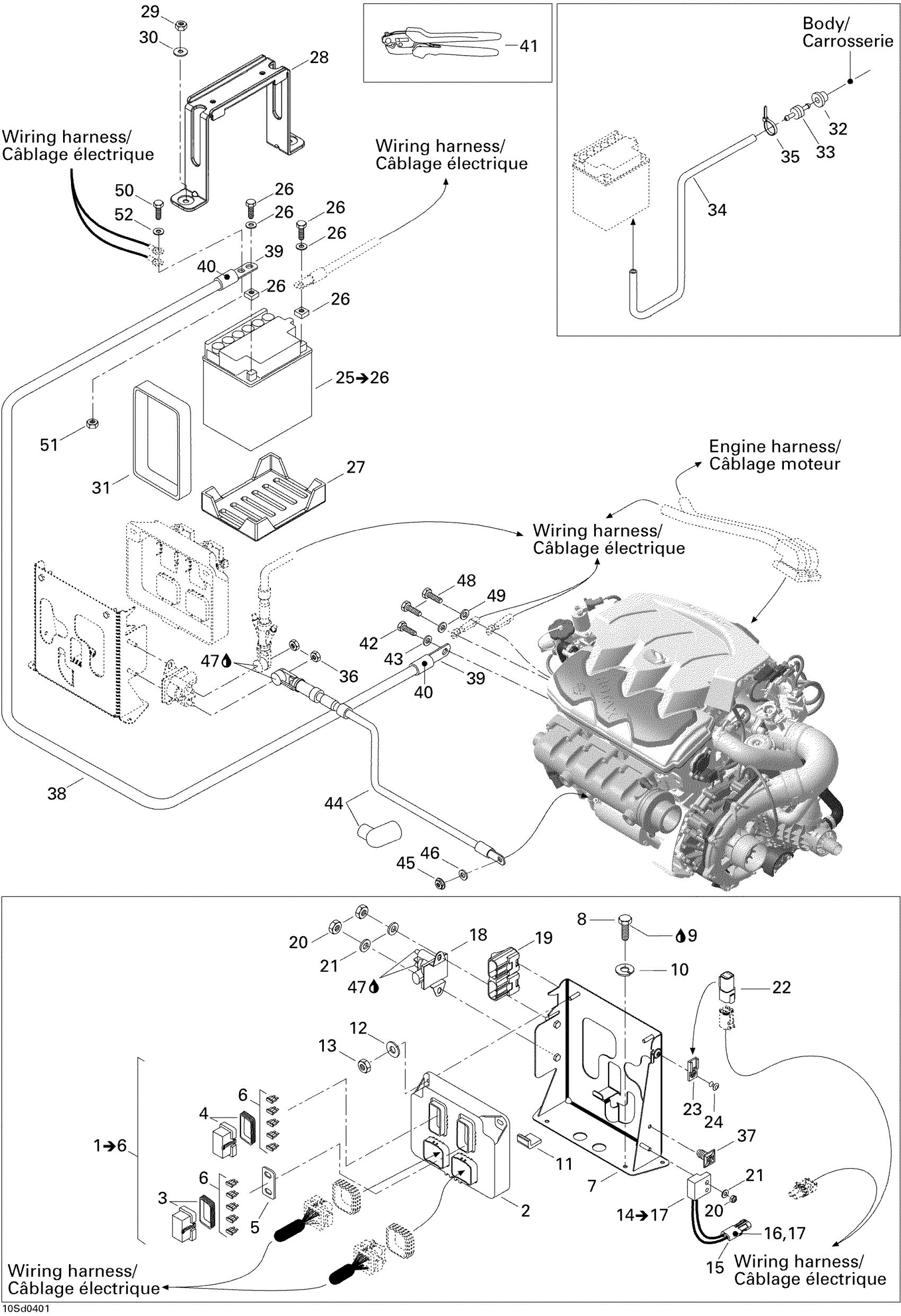

Sea-doo GTX 4-TEC, Special Supercharged, 2004 Electrical System Diagram

#

Description
Price

1

Program Module | Includes 1 to 6

278001908

Unavailable

2

Program Module

278001905

Unavailable

3

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

Unavailable

4

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

Unavailable

5

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

6

FUSE, 1 AMPERE - Call your local BRP dealership

409012800

Unavailable

FUSE, 2 AMPERES - Call your local BRP dealership

278001442

Unavailable

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

Fuse, 5 Amperes | CE

278000344

$3.12

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

Fuse, 10 Amperes | North America

278001197

$1.79

7

Module Support

278001870

Unavailable

8

Hex. Screw 10-14 X 7/8”

211000023

$2.91

9

Loctite 271, 10 ml

293800005

$20.77

10

WASHER-LOCK IMPERIAL - Call your local BRP dealership

211200043

Unavailable

11

MODULE PROTECTOR - Call your local BRP dealership

278001166

Unavailable

12

Flat Washer M6, Stainless

234062600

$0.64

13

Hex. Elastic Stop Nut M6

232561600

$0.92

14

T.O.P.S. SWITCH - Call your local BRP dealership | Includes 13 to 16

278001547

Unavailable

15

Female Housing, 2 Circuits

278000217

$7.59

16

Male Terminal | XT Models

278000222

$2.55

17

Wire Seal

278000218

$3.48

18

Starter Relay

278003012

$35.07

19

HOUSING COVER - Call your local BRP dealership

710000342

Unavailable

20

Hex. Elastic Stop Nut M6

232561600

$0.92

21

Stainless Flat Washer M6

234061600

$0.25

22

Diagnostic Connector

278002704

$15.57

23

Clip

270000141

$8.33

24

Pop Rivet 3/16"

204000081

$1.31

25

Battery, 30 Amperes

278001882

$152.72

26

Battery Bolt Kit

250000282

$2.95

27

LOWER BATTERY PAD - Call your local BRP dealership

278001582

Unavailable

28

BATTERY SUPPORT - Call your local BRP dealership

278001677

Unavailable

29

Hex. Elastic Nut M8

232581600

$1.25

30

Flat Washer 8 mm, Stainless

234082600

$1.98

31

BATTERY STRAP 337 MM - Call your local BRP dealership

278001764

Unavailable

32

Grommet

293720029

$1.13

33

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

34

HOSE 6 MM - Call your local BRP dealership

275500446

Unavailable

35

Tie Wrap 94 mm | 4X4

293750001

$0.83

36

Hex. Elastic Stop Nut M6

232561600

$0.92

37

Self-Locking Clip

278001775

Unavailable

38

Battery Ground Cable Ass'y

278001611

Unavailable

39

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

40

Not Available As Spare Part - Friction Washer

Unavailable

41

Not Available As Spare Part - Friction Washer

Unavailable

42

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

43

Stainless Flat Washer M6

234061600

$0.25

44

STARTER CABLE - Call your local BRP dealership

278002265

Unavailable

45

Hex. Elastic Stop Nut M6

232561600

$0.92

46

Stainless Flat Washer M6

234061600

$0.25

47

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

48

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

49

Stainless Flat Washer M6

234061600

$0.25

50

Hex. Cap Screw M6 X 12

207161260

$1.21

51

Hex. Elastic Stop Nut M6

232561600

$0.92

52

Stainless Flat Washer M6

234061600

$0.25
