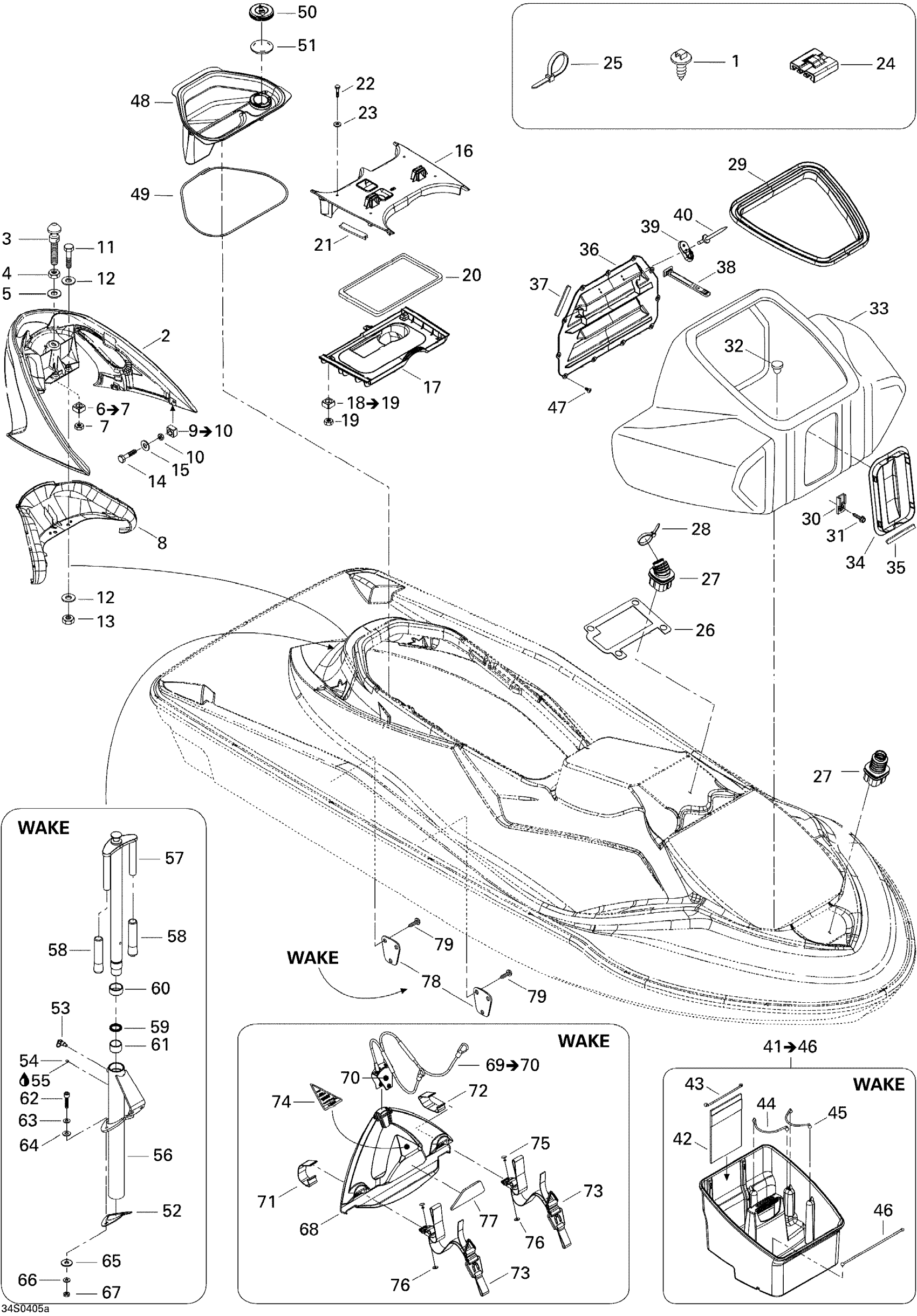

Sea-doo GTX 4-TEC, 2004 Body (Font View) Diagram

#

Description
Price

1

Mount Dart

293730040

Unavailable

2

GRAB HANDLE, BLACK - Call your local BRP dealership

269000722

Unavailable

3

SEAT STUD - Call your local BRP dealership

291000945

Unavailable

4

Hex. Jam Nut M10

232100600

Unavailable

5

Flat Washer 10 mm, Stainless

234002600

Unavailable

6

NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61

271000598

Unavailable

7

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

8

HANDLE COVER, BLACK - Call your local BRP dealership

269000749

Unavailable

9

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

Unavailable

10

Hex. Nut M6

232061600

Unavailable

11

Hex. Screw M8 X 45

207084560

Unavailable

12

Stainless, Flat Washer 8 mm

234081600

Unavailable

13

Hex. Elastic Nut M8

232581600

Unavailable

14

Hex. Screw M6 X 25

207162560

Unavailable

15

Flat Washer M6, Stainless

234062600

Unavailable

16

Upper Bridge, Black

291001602

Unavailable

17

Lower Bridge, Black

291001599

Unavailable

18

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

Unavailable

19

Hex. Nut M6

232061600

Unavailable

20

GASKET - Call your local BRP dealership

293200090

Unavailable

21

GASKET PAC = 1.0m - Call your local BRP dealership

293250008

Unavailable

22

Hex. Screw M6 X 75

207167560

Unavailable

23

Flat Washer M6, Stainless

234062600

Unavailable

24

Tie-Rap Mount

293750025

Unavailable

25

Tie-Rap 180 mm

414115200

Unavailable

Tie Wrap 368 mm

293750008

Unavailable

26

GASKET - Call your local BRP dealership

293250171

Unavailable

27

GROMMET - Call your local BRP dealership

293720042

Unavailable

28

Tie-Rap 180 mm

414115200

Unavailable

29

Cover Trim

269501234

Unavailable

30

Clip

270000141

Unavailable

31

Flange Screw K40 X 20

241642060

Unavailable

32

Black Plug

291000279

Unavailable

33

Front Tray

269500955

Unavailable

34

Front Door

291001744

Unavailable

35

Gasket, Neoprene 2000Mm Long

219704476

Unavailable

36

Rear Door

291001743

Unavailable

37

Gasket, Neoprene 2000Mm Long

219704476

Unavailable

38

Strap

269502417

Unavailable

39

Hook

269500521

Unavailable

40

Avdel Rivet

293150027

Unavailable

41

Removable Tray | Includes 40 to 45

269501478

Unavailable

42

Pocket | WAKE

269501161

Unavailable

43

STRAP - Call your local BRP dealership

269501175

Unavailable

44

STRAP - Call your local BRP dealership

269501174

Unavailable

45

STRAP - Call your local BRP dealership

269501175

Unavailable

46

STRAP - Call your local BRP dealership

269501176

Unavailable

47

Tuflok Plastic Rivet

293150230

Unavailable

48

Rear Tray

269501036

Unavailable

49

GASKET PAC = 1.0m - Call your local BRP dealership

293250008

Unavailable

50

COVER - Call your local BRP dealership

269000788

Unavailable

51

COVER SEAL - Call your local BRP dealership

269000810

Unavailable

52

Seal

293250151

Unavailable

53

Retractable Spring Pin

204070412

Unavailable

54

SOCKET SET SCREW M6 X 8 - Call your local BRP dealership | WAKE

206560860

Unavailable

55

Loctite 243, 10 ml

293800060

Unavailable

56

Support | WAKE

291001921

Unavailable

57

Ski Pole | WAKE

291001903

Unavailable

58

Grip | WAKE This part replaces M5340464.

506152483

Unavailable

59

X-ring | WAKE

293300106

Unavailable

60

Upper Sleeve | WAKE

291001940

Unavailable

61

Lower Sleeve | WAKE

291001941

Unavailable

62

Socket Head Screw M8 X 40

205484060

Unavailable

63

Stainless, Flat Washer 8 mm

234081600

Unavailable

64

Flat Washer 8 mm, Nylon

234081100

Unavailable

65

Rubber Washer

293830037

Unavailable

66

Flat Washer 8 mm, Stainless

250200175

Unavailable

67

Hex. Elastic Nut M8

232581600

Unavailable

68

Board Support | WAKE

291002024

Unavailable

69

ELASTIC ROPE ASS'Y - Call your local BRP dealership | Includes 59 to 60

291002026

Unavailable

70

ROPE CAP - Call your local BRP dealership

291002025

Unavailable

71

LH Bracket Support

291002027

Unavailable

72

RH BRACKET SUPPORT - Call your local BRP dealership

291002028

Unavailable

73

STRAP ASS'Y - Call your local BRP dealership

291002029

Unavailable

74

Warning Decal, English, Secure Board

219902347

Unavailable

75

Pop Rivet 3/16" | DS 650 X

293150104

Unavailable

76

Washer

517124300

Unavailable

77

GASKET - Call your local BRP dealership

293250149

Unavailable

78

BOARD RACK - Call your local BRP dealership

291002050

Unavailable

79

PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership

204100049

Unavailable
