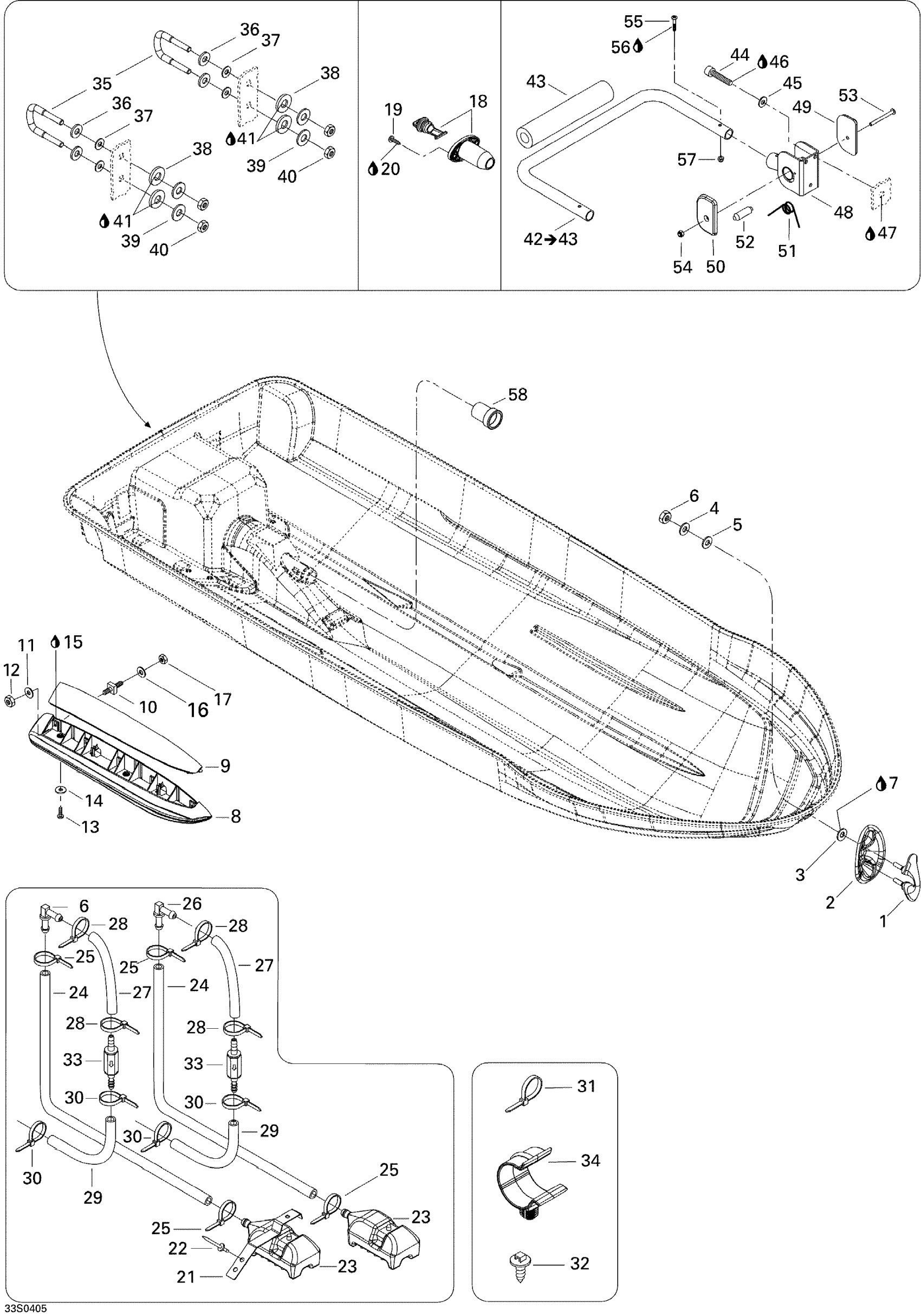

Sea-doo GTX 4-TEC, 2004 Hull Diagram
#
1
Eye-Bow (Black) This part replaces 292000708.
292000452
Unavailable
2
Black Shell
292001837
Unavailable
3
Stainless, Flat Washer 8 mm
234081600
Unavailable
4
Flat Washer 8 mm, Stainless
250200175
Unavailable
5
Rubber Washer
293830037
Unavailable
6
Hex. Elastic Nut M8
232581600
Unavailable
7
Silicone Sealant 51388, 300 ml
296000309
Unavailable
8
RH SPONSON - Call your local BRP dealership
292000818
Unavailable
LH SPONSON - Call your local BRP dealership
292000816
Unavailable
9
RH SPONSON COVER - Call your local BRP dealership
292000815
Unavailable
LH SPONSON COVER - Call your local BRP dealership
292000817
Unavailable
10
THREADED INSERT - Call your local BRP dealership
293450227
Unavailable
11
Flat Washer M6, Stainless
234062600
Unavailable
12
Hex. Elastic Stop Nut M6
232561600
Unavailable
13
Phillips Screw 10-14 X 7/8”
211000037
Unavailable
14
Flat Washer M5, Stainless
234051600
Unavailable
15
Silicone Sealant 51388, 300 ml
296000309
Unavailable
16
Flat Washer M6
250200046
Unavailable
17
Hex. Elastic Stop Nut M6
232561600
Unavailable
18
Drain Plug
292001252
Unavailable
19
Hex. Screw 10-14 X 7/8”
211000023
Unavailable
20
Silicone Sealant 51388, 300 ml
296000309
Unavailable
21
LH SPRING CLIP - Call your local BRP dealership
292000398
Unavailable
22
Avdel Rivet 3/16"
293150037
Unavailable
23
Bailer Screen
292000688
Unavailable
24
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
Unavailable
25
Tie Wrap 94 mm | 4X4
293750001
Unavailable
26
ELBOW FITTING 90 - Call your local BRP dealership
293710057
Unavailable
27
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
Unavailable
28
Tie Wrap 94 mm | 4X4
293750001
Unavailable
29
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
Unavailable
30
Tie Wrap 94 mm | 4X4
293750001
Unavailable
31
Tie-Rap 180 mm
414115200
Unavailable
Tie-Rap 180 mm
414115200
Unavailable
32
Mount Dart
293730040
Unavailable
Mount Dart
293730040
Unavailable
33
Check Valve
276000093
Unavailable
34
Hose Retainer
275500528
Unavailable
Cable Retainer
275500527
Unavailable
Retainer
275500526
Unavailable
35
U-Clamp
292000933
Unavailable
36
Flat Washer M8.5 x 18
293050001
Unavailable
37
Flat Washer 8 mm, Nylon
234081100
Unavailable
38
RUBBER WASHER - Call your local BRP dealership This part replaces 293830107.
293830161
Unavailable
39
Flat Washer 8 mm, Stainless
250200175
Unavailable
40
Hex. Elastic Nut M8
232581600
Unavailable
41
Silicone Sealant 51388, 300 ml
296000309
Unavailable
42
Stair Tube Ass’Y | Includes items 42 to 43
292000778
Unavailable
43
PROTECTIVE SLEEVE - Call your local BRP dealership
292000781
Unavailable
44
Socket Head Screw M6 X 25, Scotch Grip
250000076
Unavailable
45
Stainless Flat Washer M6
234061600
Unavailable
46
Silicone Sealant 51388, 300 ml
296000309
Unavailable
47
Was 293800066 Sealant Loctite 5900, 300 ml
219704460
Unavailable
48
Support Ass’Y
292000539
Unavailable
49
RH Support Cap
292000540
Unavailable
50
LH Support Cap
292000548
Unavailable
51
RECALL SPRING - Call your local BRP dealership
292000541
Unavailable
52
Not Available As Spare Part - Friction Washer
Unavailable
53
Phillips Screw
211000186
Unavailable
54
Hex. Elastic Nut 1/4-20
250000201
Unavailable
55
Socket Head Screw M6 X 35
205063560
Unavailable
56
Loctite 243, 10 ml
293800060
Unavailable
57
Nut M6 | Model-Australie, Brezil, Europe
232361600
Unavailable
58
HULL INSERT, 41 MM - Call your local BRP dealership
292000975
Unavailable
