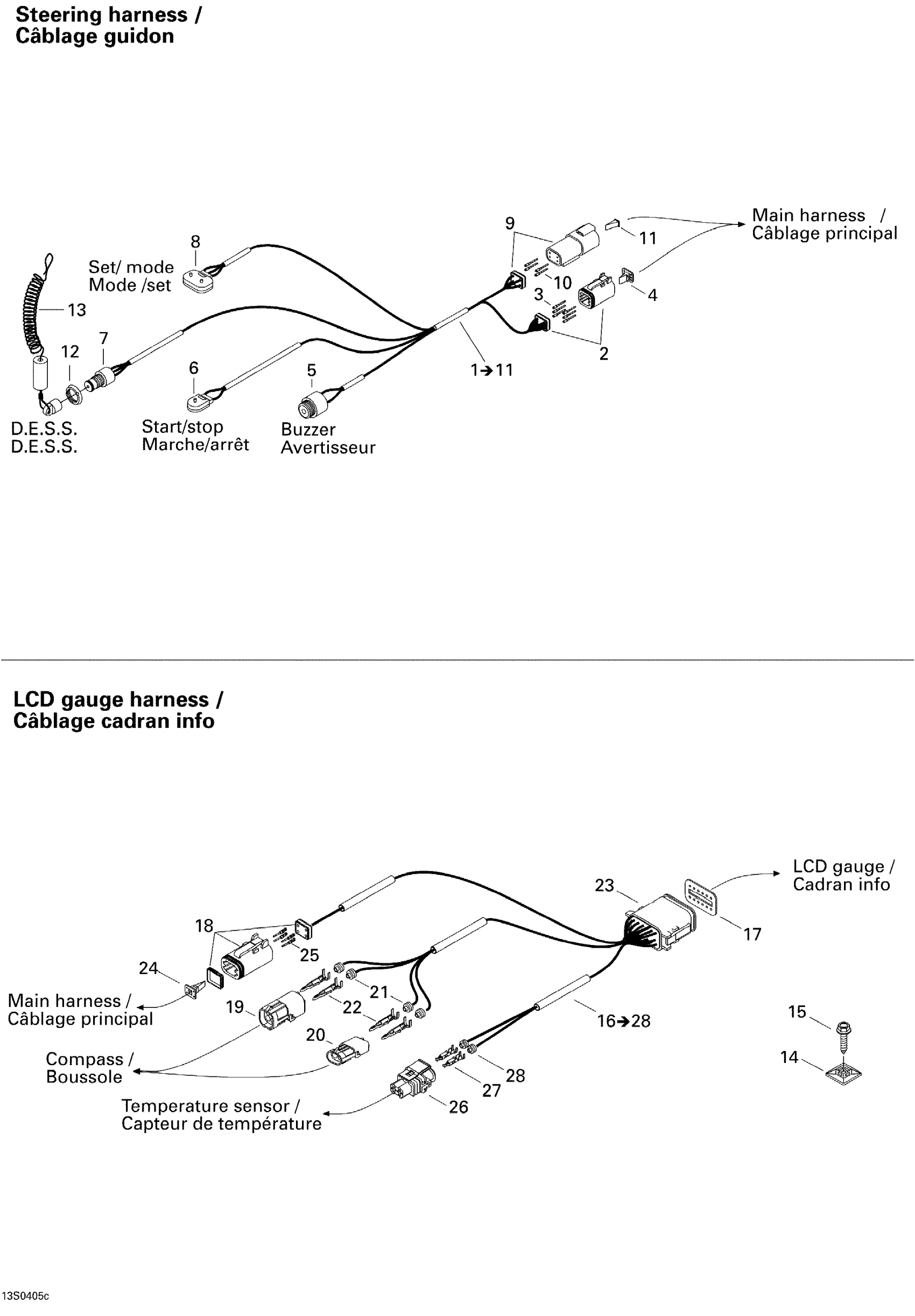

Sea-doo GTX 4-TEC, 2004 Steering Harness Diagram

#

Description
Price

1

STEERING HARNESS ASSY - Call your local BRP dealership | Includes 1 to 11

278001732

Unavailable

2

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

Unavailable

3

Female Terminal

278000632

Unavailable

4

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

5

BUZZER - Call your local BRP dealership

278001586

Unavailable

6

START/STOP SWITCH - Call your local BRP dealership

278001733

Unavailable

7

Safety Switch This part replaces 278002325.

278002773

Unavailable

8

SET/MODE SWITCH - Call your local BRP dealership

278001755

Unavailable

9

Female Housing, 4 Circuits

278000635

Unavailable

10

Male Terminal

278000631

Unavailable

11

Female Wedge, 4 Circuits

278000636

Unavailable

12

Safety Nut (DESS Switch)

278002963

Unavailable

13

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

Unavailable

14

Tie Rap Mount

293750026

Unavailable

15

Hex. Flange Screw K40 X 13

241141360

Unavailable

16

Cluster Harness Ass’Y | Includes 15 to 27

278001702

Unavailable

17

Female Lock, 12 Circuits

409015700

Unavailable

18

Male Connector, 4 Circuits | CE

278000739

Unavailable

19

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

20

Female Housing, 2 Circuits

278000217

Unavailable

21

Wire Seal

278000218

Unavailable

22

Male Terminal | XT Models

278000222

Unavailable

23

Female Terminal Housing, 12 Circuits

278002377

Unavailable

24

Male Lock, 4 Circuits | CE

278000738

Unavailable

25

Female Terminal

278000632

Unavailable

26

Male Housing, 2 Circuits

278001005

Unavailable

27

Female Terminal

278000998

Unavailable

28

Wire Seal

278000999

Unavailable
