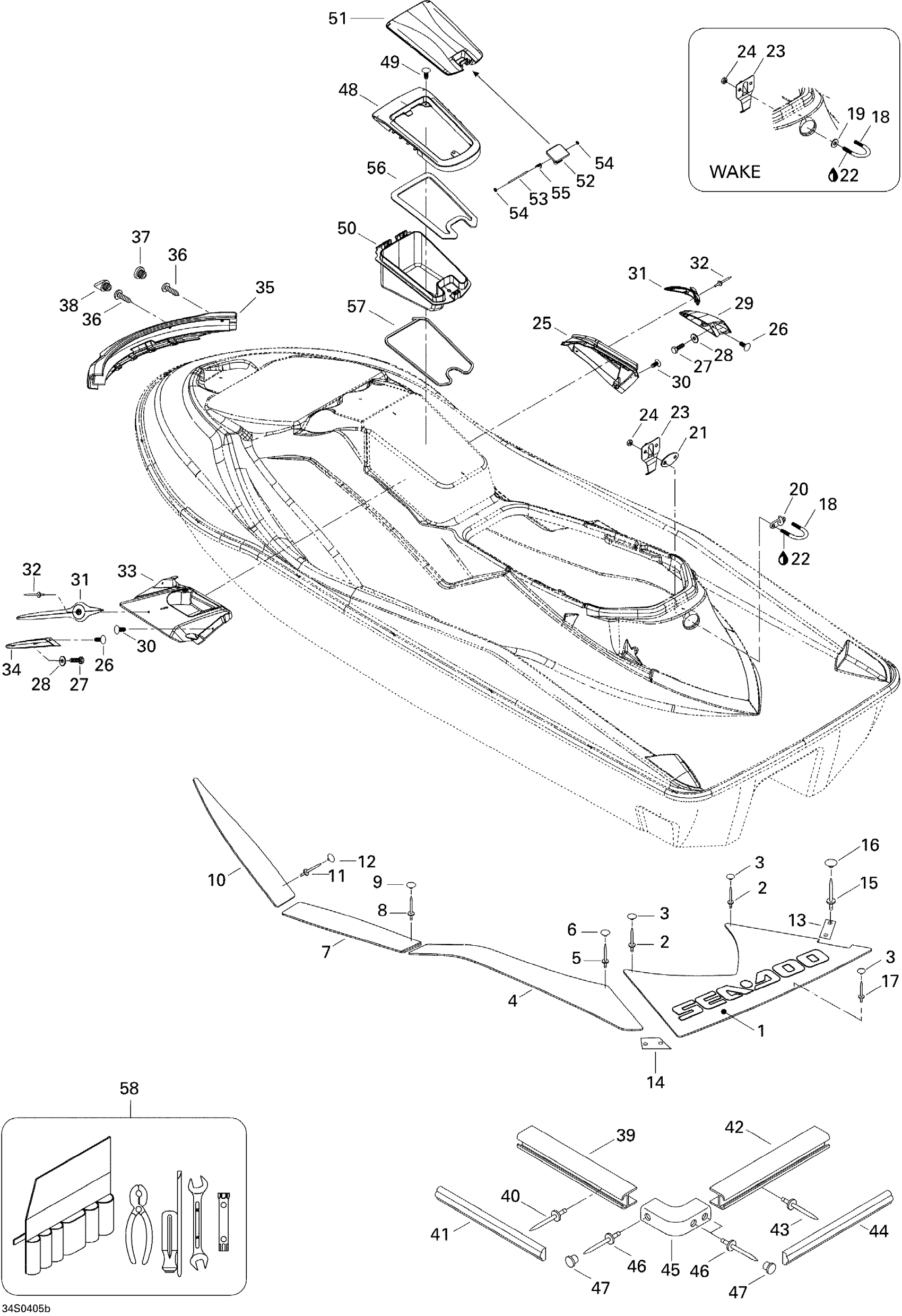

Sea-doo GTX 4-TEC, 2004 Body (Rear View) Diagram

#

Description
Price

1

Rear Carpet, Black | STD

291001905

Unavailable

Rear Carpet, Black & Red | WAKE

291001986

Unavailable

2

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

3

Black, Snap Cap

293000014

Unavailable

4

RH Center Rear Carpet, Black

291001906

Unavailable

LH Center Rear Carpet, Black

291001907

Unavailable

5

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

6

Black, Snap Cap

293000014

Unavailable

7

RH Center Front Carpet, Black

291001908

Unavailable

LH Center Front Carpet, Black

291001909

Unavailable

8

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

9

Black, Snap Cap

293000014

Unavailable

10

RH Front Carpet, Black

291001910

Unavailable

LH Front Carpet, Black

291001911

Unavailable

11

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

12

Black, Snap Cap

293000014

Unavailable

13

RH ANTI-SKID - Call your local BRP dealership

291001758

Unavailable

14

LH Anti-Skid

291001759

Unavailable

15

Rivet 1/8"

293150016

Unavailable

16

Black, Snap Cap

293000014

Unavailable

17

Pop Rivet 1/8”

293150015

Unavailable

18

U-CLAMP - Call your local BRP dealership

292000011

Unavailable

U-Clamp

292000933

Unavailable

19

Flat Washer M8.5 x 18

293050001

Unavailable

20

Hook | Package LTD

291002351

Unavailable

21

Black, Finition Plate

291001386

Unavailable

22

Silicone Sealant 51388, 300 ml

296000309

Unavailable

23

Retainer Plate

291001747

Unavailable

24

Hex. Elastic Nut M8

232581600

Unavailable

25

RH GRILL, BLACK - Call your local BRP dealership | WAKE

269500931

Unavailable

26

Black Dart

293730010

Unavailable

27

Hex. Flange Screw K40 X 16

241141660

Unavailable

28

Flat Washer 5 mm, Stainless

234052600

Unavailable

29

RH INSERT - Call your local BRP dealership | WAKE

293450223

Unavailable

30

Black, Dart

293730006

Unavailable

31

FINITION PLATE - Call your local BRP dealership

269500716

Unavailable

32

Pop Rivet 3/16"

293150008

Unavailable

33

LH GRILL, BLACK - Call your local BRP dealership | WAKE

269500932

Unavailable

34

LH INSERT - Call your local BRP dealership | WAKE

293450224

Unavailable

35

BUMPER NOSE, BLACK - Call your local BRP dealership

291001942

Unavailable

36

Plastite Torx Screw #10 X 7/8"

250000207

Unavailable

37

Bumper Plug, Black

291001519

Unavailable

38

Bumper Plug, Black

291001040

Unavailable

39

Black, Side Bumper

204050270

Unavailable

40

Pop Rivet 3/16"

293150005

Unavailable

41

SIDE TRIM SEASHORE METALLIC, B-207 - Call your local BRP dealership | STD

291001820

Unavailable

SIDE BUMPER TRIM, VIPER RED - Call your local BRP dealership

291001897

Unavailable

42

REAR BUMPER, BLACK - Call your local BRP dealership

291002242

Unavailable

43

Pop Rivet 3/16"

293150005

Unavailable

44

Rear Bumper Trim, Viper Red

291001484

Unavailable

Black, Rear Bumper Trim - Call your local BRP dealership

204050279

Unavailable

45

Bumper Corner

291002244

Unavailable

46

Pop Rivet 3/16"

293150013

Unavailable

47

Bumper Plug, Black

291000339

Unavailable

48

Cover Trim, Black

269501031

Unavailable

49

Black, Dart

293730006

Unavailable

50

GLOVE BOX - Call your local BRP dealership

269500968

Unavailable

51

Box Door, Black | WAKE

269501202

Unavailable

Box Door, Seashore Metallic, B-207 | STD

269501271

Unavailable

52

Latch, Black

269500553

Unavailable

53

Pin

211400008

Unavailable

54

Push Nut | Not shown

211100002

Unavailable

55

Latch Spring

291000922

Unavailable

56

GASKET - Call your local BRP dealership

293250126

Unavailable

57

GASKET - Call your local BRP dealership

293250127

Unavailable

58

Tool Kit | Includes 52 to 57

294000682

Unavailable
