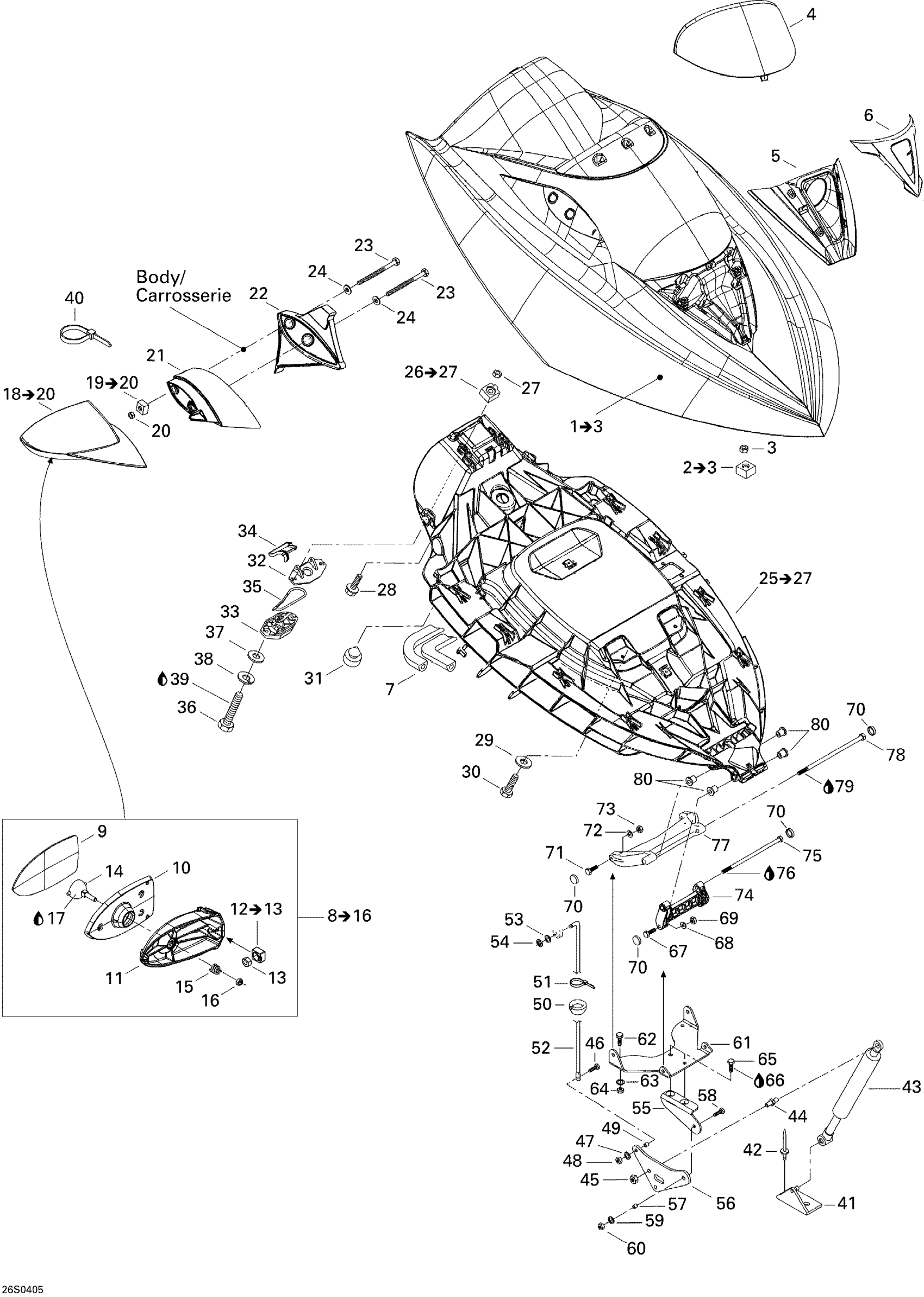

Sea-doo GTX 4-TEC, 2004 Front Storage Compartment Diagram

#

Description
Price

1

Upper Storage Cover | STD / Includes 1 to 3

269501188

Unavailable

1

Upper Storage Cover, Silver | WAKE, Includes 1 to 3

269501196

Unavailable

2

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

Unavailable

3

Hex. Nut M6

232061600

Unavailable

4

Deflector

269501189

Unavailable

5

Lower Grille

269500994

Unavailable

6

Upper Grille

269500942

Unavailable

7

Was 293200017 Neoprene Seal

219704365

Unavailable

8

RH Mirror Ass’Y | Includes Items 19 to 28 / LE

269500685

Unavailable

8

LH Mirror Ass'y | Includes Items 19 to 28 / LE

269500688

Unavailable

8

RH Mirror Ass'y | WAKE / Includes 8 to16

269501291

Unavailable

8

LH Mirror Ass'y | WAKE / Includes 8 to16

269501293

Unavailable

9

RH Mirror

269500687

Unavailable

9

LH MIRROR - Call your local BRP dealership

269500788

Unavailable

9

RH MIRROR - Call your local BRP dealership

269501292

Unavailable

9

LH MIRROR - Call your local BRP dealership

269501294

Unavailable

10

Frame Mirror

269500697

Unavailable

11

Housing Support | WAKE

269500807

Unavailable

12

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

Unavailable

13

Hex. Elastic Nut M8

232581600

Unavailable

14

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

15

Mirror Spring

269500453

Unavailable

16

Hex. Elastic Stop Nut M6

232561600

Unavailable

17

Synthetic Grease, 400 G

293550010

Unavailable

18

Mirror Shell | STD / Includes 18 to 20

269501190

Unavailable

18

Mirror Shell | WAKE / Includes 18 to 20

269501197

Unavailable

19

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

Unavailable

20

Hex. Elastic Nut M8

232581600

Unavailable

21

RH MIRROIR SUPPORT - Call your local BRP dealership | STD

269501191

Unavailable

21

LH Mirror Support | STD

269501192

Unavailable

21

RH Mirror Support | WAKE

269501198

Unavailable

21

LH Mirror Support | WAKE

269501199

Unavailable

22

RH Spacer

269500950

Unavailable

22

LH Spacer

269500951

Unavailable

23

HEX. SCREW M8 X 120 - Call your local BRP dealership

230082060

Unavailable

24

Flat Washer 8 mm, Stainless

234082600

Unavailable

25

Lower Storage Cover Ass'y | Includes 25 to 27

269500952

Unavailable

26

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

Unavailable

27

Hex. Nut M6

232061600

Unavailable

28

Hex. Flange Screw K40 X 13

241141360

Unavailable

29

Flat Washer M6, Stainless

234062600

Unavailable

30

Hex. Screw M6 X 25, Scotch Grip | With Catalyst

207362560

Unavailable

31

Rubber Bumper

293830005

Unavailable

32

Latch Ass'y

269700109

Unavailable

33

Latch Ass'y

269700109

Unavailable

34

Latch Ass'y

269700109

Unavailable

35

Latch Spring

269700017

Unavailable

36

Hex. Screw M6 X 30

207063060

Unavailable

37

Stainless Flat Washer M6

234061600

Unavailable

38

Lock Washer Helical M6

234161601

Unavailable

39

Loctite 243, 10 ml

293800060

Unavailable

40

Tie Wrap 368 mm

293750008

Unavailable

41

SHOCK SUPPORT - Call your local BRP dealership

291002124

Unavailable

42

Avdel Rivet 3/16"

293150037

Unavailable

43

Gas Shock Ass'y

269501625

Unavailable

44

Ball Head Stud

250300016

Unavailable

45

Hex. Elastic Nut M8

232581600

Unavailable

46

Hex. Screw M4 X 16 | Europe

207141660

Unavailable

47

Flat Washer 4 mm, Stainless

234041600

Unavailable

48

Elastic Stop Nut M4

232541600

Unavailable

49

SPACER - Call your local BRP dealership

269501130

Unavailable

50

CABLE GROMMET - Call your local BRP dealership | North America

293720070

Unavailable

51

Tie-Rap 180 mm

414115200

Unavailable

52

ROD - Call your local BRP dealership

269500842

Unavailable

53

Stainless Flat Washer M6

234061600

Unavailable

54

CIRCLIP 6 MM - Call your local BRP dealership | North America

293370005

Unavailable

55

SUPPORT LEVER - Call your local BRP dealership

269501742

Unavailable

56

LEVER - Call your local BRP dealership

269501576

Unavailable

57

SPACER - Call your local BRP dealership

269501172

Unavailable

58

Hex. Forming Screw M6 X 20

207162060

Unavailable

59

Flat Washer M6, Stainless

234062600

Unavailable

60

Hex. Elastic Stop Nut M6

232561600

Unavailable

61

Pivot Support

269500934

Unavailable

62

Hex. Forming Screw M6 X 20

207162060

Unavailable

63

Flat Washer M6, Stainless

234062600

Unavailable

64

Hex. Elastic Stop Nut M6

232561600

Unavailable

65

Hex. Forming Screw M6 X 20

207162060

Unavailable

66

Loctite 243, 10 ml

293800060

Unavailable

67

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

68

Stainless Flat Washer M6

234061600

Unavailable

69

Hex. Elastic Stop Nut M6

232561600

Unavailable

70

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

71

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

72

Stainless Flat Washer M6

234061600

Unavailable

73

Hex. Elastic Stop Nut M6

232561600

Unavailable

74

FRONT ARM - Call your local BRP dealership

269501482

Unavailable

75

Hex. Screw M6 X 100

230060060

Unavailable

76

Loctite 243, 10 ml

293800060

Unavailable

77

REAR ARM - Call your local BRP dealership

269501481

Unavailable

78

Hex. Screw M6 X 150

230065060

Unavailable

79

Loctite 271, 10 ml

293800005

Unavailable

80

Sleeve

269500706

Unavailable
