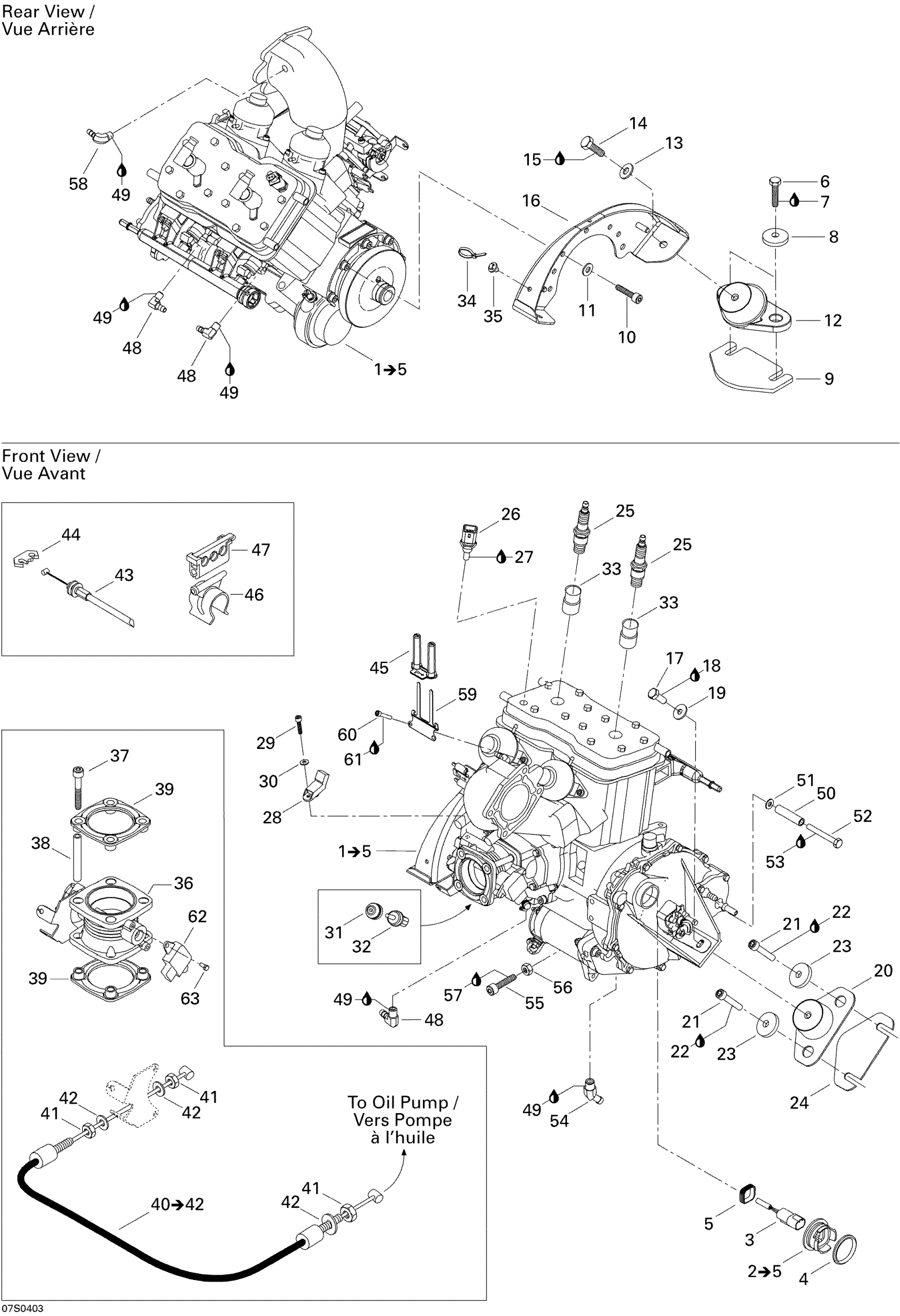

Sea-doo GTI LE RFI, 2004 Engine Diagram

#

Description
Price

1

Rotax Engine 787 Sdi | Includes 1 to 5

270000599

Unavailable

2

Adaptor Ass'y | Includes 2 to 5

270000243

Unavailable

3

Female Housing, 4 Circuits

278000635

Unavailable

4

Gasket

293300033

Unavailable

5

GASKET - Call your local BRP dealership

293200042

Unavailable

6

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

7

Loctite 243, 10 ml

293800060

Unavailable

8

Cone Washer

250200018

Unavailable

9

SHIM 0.3 MM - Call your local BRP dealership

270000445

Unavailable

9

Shim 1.3 mm

270000762

Unavailable

10

Socket Head Screw M8 X 25, Scotch Grip

205582560

Unavailable

11

Stainless, Flat Washer 8 mm

234081600

Unavailable

12

Engine Support Ass'y

270001081

Unavailable

13

Flat Washer 8 mm, Stainless

234082600

Unavailable

14

Hex. Screw M8 X 16

207181660

Unavailable

15

Loctite 243, 10 ml

293800060

Unavailable

16

Engine Support

270000584

Unavailable

17

HEX. SCREW M8 X 20 - Call your local BRP dealership

207182060

Unavailable

18

Loctite 243, 10 ml

293800060

Unavailable

19

Flat Washer 8 mm, Stainless

234082600

Unavailable

20

RUBBER MOUNT - Call your local BRP dealership

270000588

Unavailable

21

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

22

Loctite 243, 10 ml

293800060

Unavailable

23

Cone Washer

250200018

Unavailable

24

SHIM 0.3 MM - Call your local BRP dealership

270000445

Unavailable

24

Shim 1.3 mm

270000762

Unavailable

25

NGK Spark Plug BR8ES This part replaces 278000609.

219703119

Unavailable

26

Temperature Sensor

278002895

Unavailable

27

Était/Was 293800038 Loctite 518, 50 ml

219704456

Unavailable

28

Pressure Sensor

270600040

Unavailable

29

Socket Head Screw M6 X 12, Scotch Grip

205561260

Unavailable

30

Stainless Flat Washer M6

234061600

Unavailable

31

INSULATOR - Call your local BRP dealership

278001054

Unavailable

32

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

Unavailable

33

PROTECTOR CAP - Call your local BRP dealership

278001380

Unavailable

34

Tie-Rap 180 mm

414115200

Unavailable

35

Mount Dart

293730040

Unavailable

36

THROTTLE BODY ASS'Y - Call your local BRP dealership | Includes 37 to 38

270600092

Unavailable

37

SOCKET HEAD SCREW M6 X 90, SCOTCH GRIP - Call your local BRP dealership

205569060

Unavailable

38

SPACER TUBE - Call your local BRP dealership

275500352

Unavailable

39

GASKET - Call your local BRP dealership

293250071

Unavailable

40

INJECTION CABLE ASS'Y - Call your local BRP dealership | Includes 42 to 45

270000437

Unavailable

41

Hex. Nut M6

232160600

Unavailable

42

Stainless Flat Washer M6

234061600

Unavailable

43

THROTTLE CABLE - Call your local BRP dealership

277000847

Unavailable

44

TAB LOCK - Call your local BRP dealership

277000279

Unavailable

45

INSULATOR - Call your local BRP dealership

278001512

Unavailable

46

Wire Support

278001597

Unavailable

47

COLLAR SUPPORT - Call your local BRP dealership

278000559

Unavailable

48

Elbow Fitting

293700016

Unavailable

49

Was 293800013 Loctite 56765

219704454

Unavailable

50

Spacer Tube

275500640

Unavailable

51

Stainless Flat Washer M6

234061600

Unavailable

52

HEX. SCREW M6 X 60 - Call your local BRP dealership

207066060

Unavailable

53

Loctite 243, 10 ml

293800060

Unavailable

54

ELBOW FITTING 90 - Call your local BRP dealership | With Catalyst

204130218

Unavailable

55

Socket Screw M10 X 30

205003060

Unavailable

56

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

57

Loctite 271, 10 ml

293800005

Unavailable

58

Elbow Fitting 90°

293710018

Unavailable

59

GROUND PLATE - Call your local BRP dealership

278001662

Unavailable

60

Socket Head Screw M6 X 25

205062560

Unavailable

61

Loctite 243, 10 ml

293800060

Unavailable

62

Position Sensor

420866120

Unavailable

63

Not Available As Spare Part - Friction Washer

Unavailable
