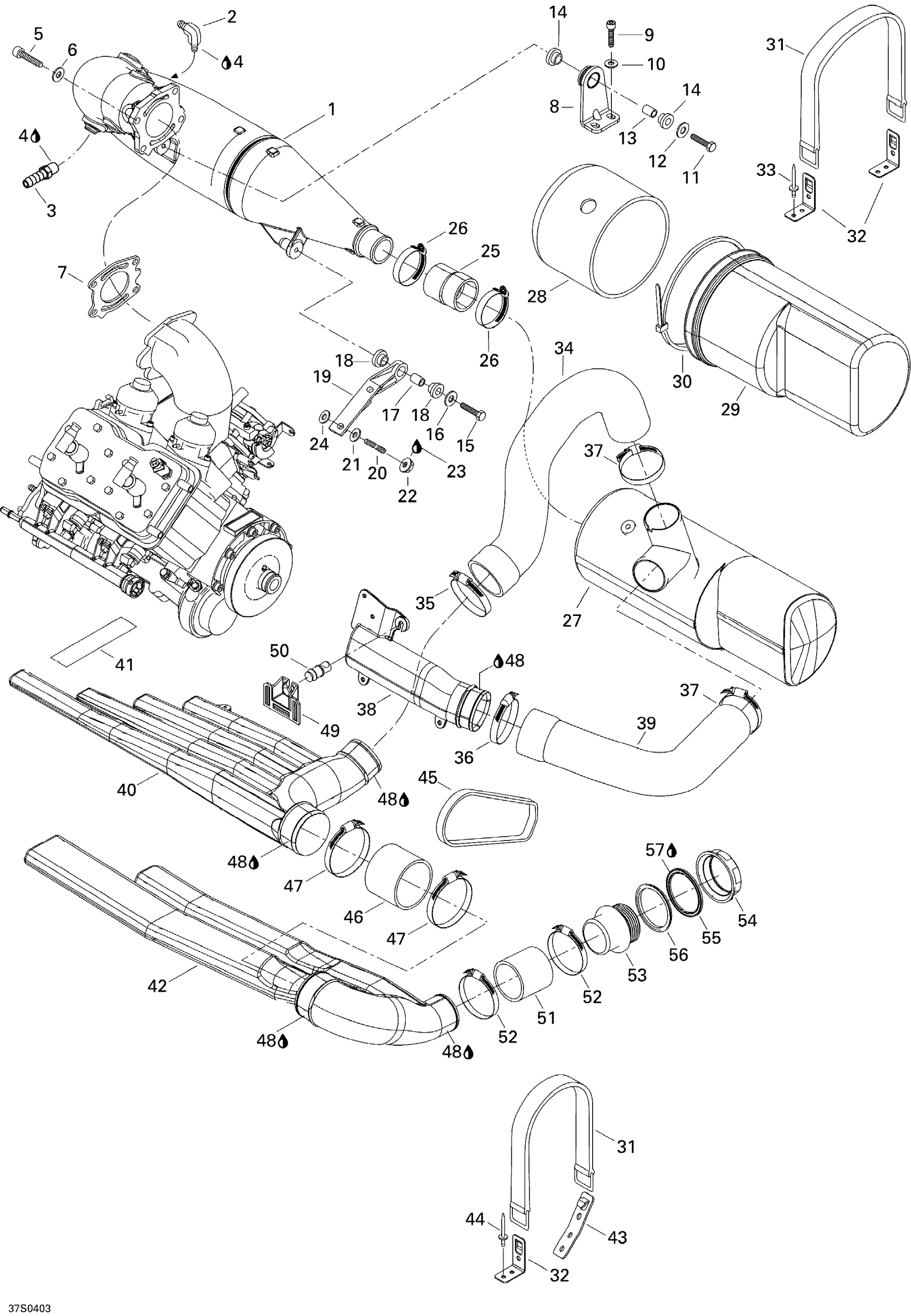

Sea-doo GTI LE RFI, 2004 Exhaust Diagram
#
1
Head Pipe
274001098
Unavailable
2
Elbow Fitting 90°
293710018
Unavailable
3
Male Connector | With Catalyst
293710021
Unavailable
4
Was 293800018 Loctite 592, 50 ml | Package T
219704455
Unavailable
5
SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership
244003560
Unavailable
6
Flat Washer 10 mm, Stainless
234001600
Unavailable
7
EXHAUST GASKET - Call your local BRP dealership
420931503
Unavailable
8
Pipe Support
274001104
Unavailable
9
Socket Head Screw M8 X 25, Scotch Grip
205582560
Unavailable
10
Flat Washer M8.5 x 18
293050001
Unavailable
11
Hex. Screw M8 X 40, Scotch Grip
207284060
Unavailable
12
Flat Washer 8 mm, Stainless
234082600
Unavailable
13
Bushing
274000254
Unavailable
14
RUBBER BUSHING - Call your local BRP dealership
293830036
Unavailable
15
Hex. Screw M8 X 40, Scotch Grip
207284060
Unavailable
16
Flat Washer 8 mm, Stainless
234082600
Unavailable
17
Bushing
274000254
Unavailable
18
RUBBER BUSHING - Call your local BRP dealership
293830036
Unavailable
19
SUPPORT PIPE - Call your local BRP dealership
274000759
Unavailable
20
Stud M10 X 60
250300007
Unavailable
21
Flat Washer 10 mm, Stainless
234001600
Unavailable
22
Hex. Flange Nut M10
233101600
Unavailable
23
Loctite 243, 10 ml
293800060
Unavailable
24
Flat Washer 10 mm, Stainless
234002600
Unavailable
25
Exhaust Hose
274000170
Unavailable
26
Tridon Clamp
293650023
Unavailable
27
Muffler
274001022
Unavailable
28
Front MÙffler Cover
274000790
Unavailable
29
Rear Muffler Cover
274000793
Unavailable
30
WRAP_TIE 828 X 9 - Call your local BRP dealership
293750020
Unavailable
31
Fuel Tank Strap
293850036
Unavailable
32
STRAP CLIP 90 - Call your local BRP dealership
293850076
Unavailable
33
Avdel Rivet 3/16"
293150037
Unavailable
34
EXHAUST HOSE - Call your local BRP dealership
274001028
Unavailable
35
Tridon Clamp
293650179
Unavailable
36
TRIDON GEAR CLAMP - Call your local BRP dealership
293650006
Unavailable
37
Tridon Clamp
293650064
Unavailable
38
Resonator
274001018
Unavailable
39
EXHAUST HOSE - Call your local BRP dealership
274001019
Unavailable
40
LH UPPER RESONATOR - Call your local BRP dealership
274000700
Unavailable
41
RUBBER PAD - Call your local BRP dealership
274000752
Unavailable
42
RESONATOR EXTENSION - Call your local BRP dealership
274000701
Unavailable
43
Strap Clip
293850030
Unavailable
44
Avdel Rivet 3/16"
293150037
Unavailable
45
Rubber Strip
293830034
Unavailable
46
EXHAUST HOSE - Call your local BRP dealership
274000726
Unavailable
47
Tridon Clamp
204000079
Unavailable
48
Sealant, Loctite, 80 ml | DS 650
293800090
Unavailable
49
Pad Support
291001352
Unavailable
50
RUBBER PAD - Call your local BRP dealership
293830062
Unavailable
51
Exhaust Hose
274000616
Unavailable
52
Tridon Clamp
293650064
Unavailable
53
Exhaust Hose, Outlet
274001391
Unavailable
54
Nut 72 mm
274000224
Unavailable
55
STABILIZING WASHER - Call your local BRP dealership
274000225
Unavailable
56
GASKET - Call your local BRP dealership
293250041
Unavailable
57
Silicone Sealant 51388, 300 ml
296000309
Unavailable
