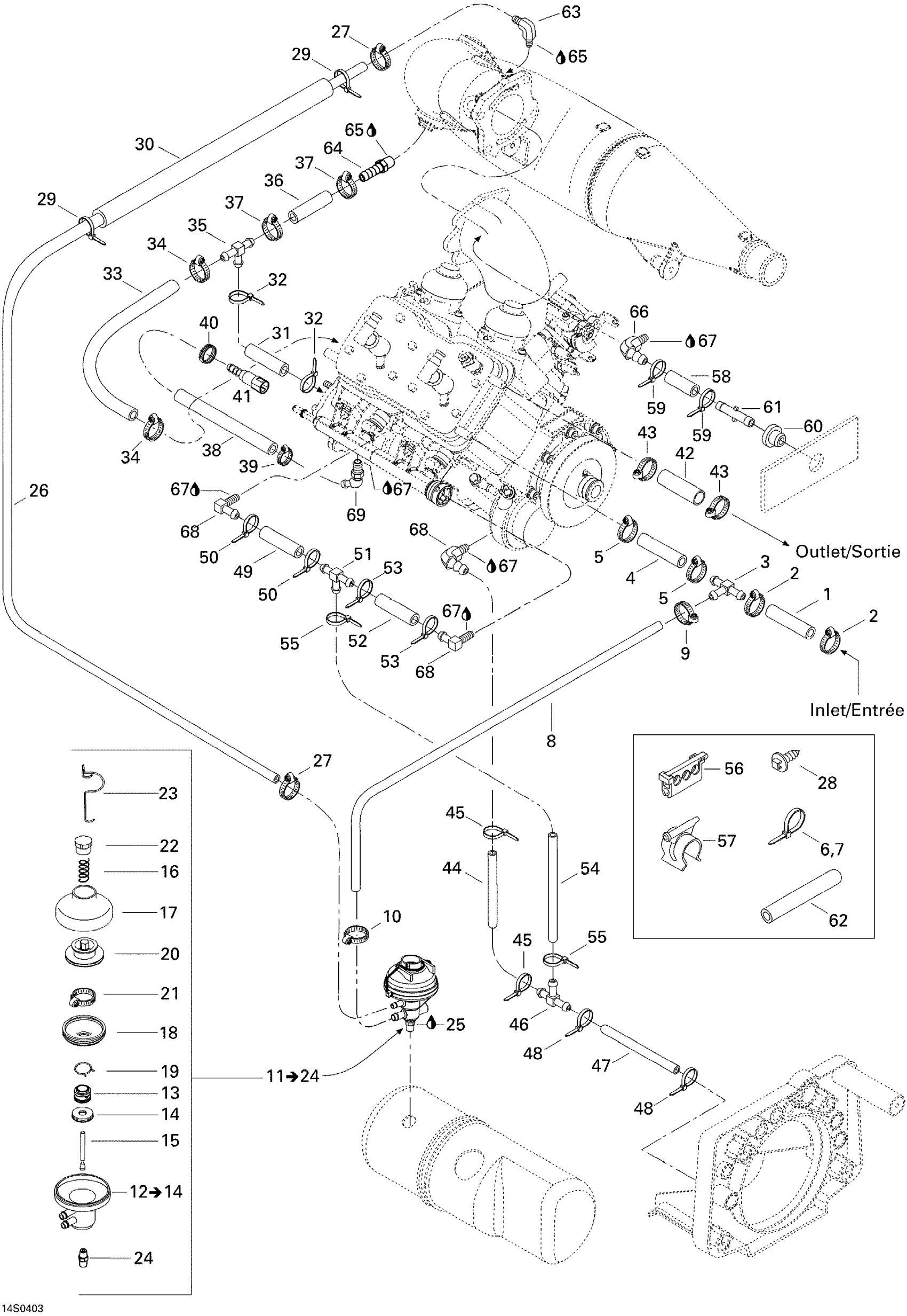

Sea-doo GTI LE RFI, 2004 Cooling System Diagram

#

Description
Price

1

Was 276000001 Hose 12.5 mm

219704394

Unavailable

2

Tridon Gear Clamp

293650172

Unavailable

3

T-Fitting

293710116

Unavailable

4

Was 276000001 Hose 12.5 mm

219704394

Unavailable

5

Tridon Gear Clamp

293650172

Unavailable

6

Tie-Rap 173 mm

293750009

Unavailable

7

Tie-Rap 180 mm

414115200

Unavailable

8

HOSE 5/16 - Call your local BRP dealership

275500548

Unavailable

9

Tridon Gear Clamp

293650170

Unavailable

10

Tridon Gear Clamp

293650171

Unavailable

11

REGULATOR ASSY - Call your local BRP dealership | Includes 11 to 24

276000134

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Spring 50 mm

274000612

Unavailable

17

Valve Cover

420911552

Unavailable

18

Bellow

420260721

Unavailable

19

SPRING CLAMP - Call your local BRP dealership

420838190

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Rivalair Clamp

293650065

Unavailable

22

Adjuster Screw

420241221

Unavailable

23

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

24

Male Fitting

293700042

Unavailable

25

Was 293800018 Loctite 592, 50 ml | Package T

219704455

Unavailable

26

Was 275500549 Hose 1/4"

219704357

Unavailable

27

Tridon Gear Clamp

293650170

Unavailable

28

Mount Dart

293730040

Unavailable

29

Tie Wrap 142 mm

293750002

Unavailable

30

Was 409901800 Tubing (13 mm)

219704400

Unavailable

31

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

Unavailable

32

Tie Wrap 94 mm | 4X4

293750001

Unavailable

33

Was 276000001 Hose 12.5 mm

219704394

Unavailable

34

Tridon Gear Clamp

293650172

Unavailable

35

T-Fitting

293710116

Unavailable

36

Was 276000001 Hose 12.5 mm

219704394

Unavailable

37

Tridon Gear Clamp

293650172

Unavailable

38

HOSE 5/16 - Call your local BRP dealership

275500548

Unavailable

39

Tridon Gear Clamp

293650170

Unavailable

40

Crimp Clamp, 15.3-706R

293650047

Unavailable

41

Quick Fitting 90° Ass'y

415128965

Unavailable

42

Was 276000001 Hose 12.5 mm

219704394

Unavailable

43

Tridon Gear Clamp

293650172

Unavailable

44

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

Unavailable

45

Tie Wrap 94 mm | 4X4

293750001

Unavailable

46

T-FITTING - Call your local BRP dealership

293710061

Unavailable

47

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

Unavailable

48

Tie Wrap 94 mm | 4X4

293750001

Unavailable

49

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

Unavailable

50

Tie Wrap 94 mm | 4X4

293750001

Unavailable

51

T-FITTING - Call your local BRP dealership

293710061

Unavailable

52

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

Unavailable

53

Tie Wrap 94 mm | 4X4

293750001

Unavailable

54

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

Unavailable

55

Tie Wrap 94 mm | 4X4

293750001

Unavailable

56

Wire Support

278001597

Unavailable

57

COLLAR SUPPORT - Call your local BRP dealership

278000559

Unavailable

58

Hose 6 Mm 15000Mm Long

219704360

Unavailable

59

Tie Wrap 94 mm | 4X4

293750001

Unavailable

60

Grommet

293720029

Unavailable

61

Straight Fitting

293710039

Unavailable

62

Shrink Tubing

276000132

Unavailable

63

Elbow Fitting 90°

293710018

Unavailable

64

Male Connector | With Catalyst

293710021

Unavailable

65

Was 293800018 Loctite 592, 50 ml | Package T

219704455

Unavailable

66

Elbow Fitting 90°

293710018

Unavailable

67

Was 293800013 Loctite 56765

219704454

Unavailable

68

Elbow Fitting

293700016

Unavailable

69

ELBOW FITTING 90 - Call your local BRP dealership | With Catalyst

204130218

Unavailable
