Find the part on the Speedometer - Tachometer diagram for your 1977 Suzuki GT185, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

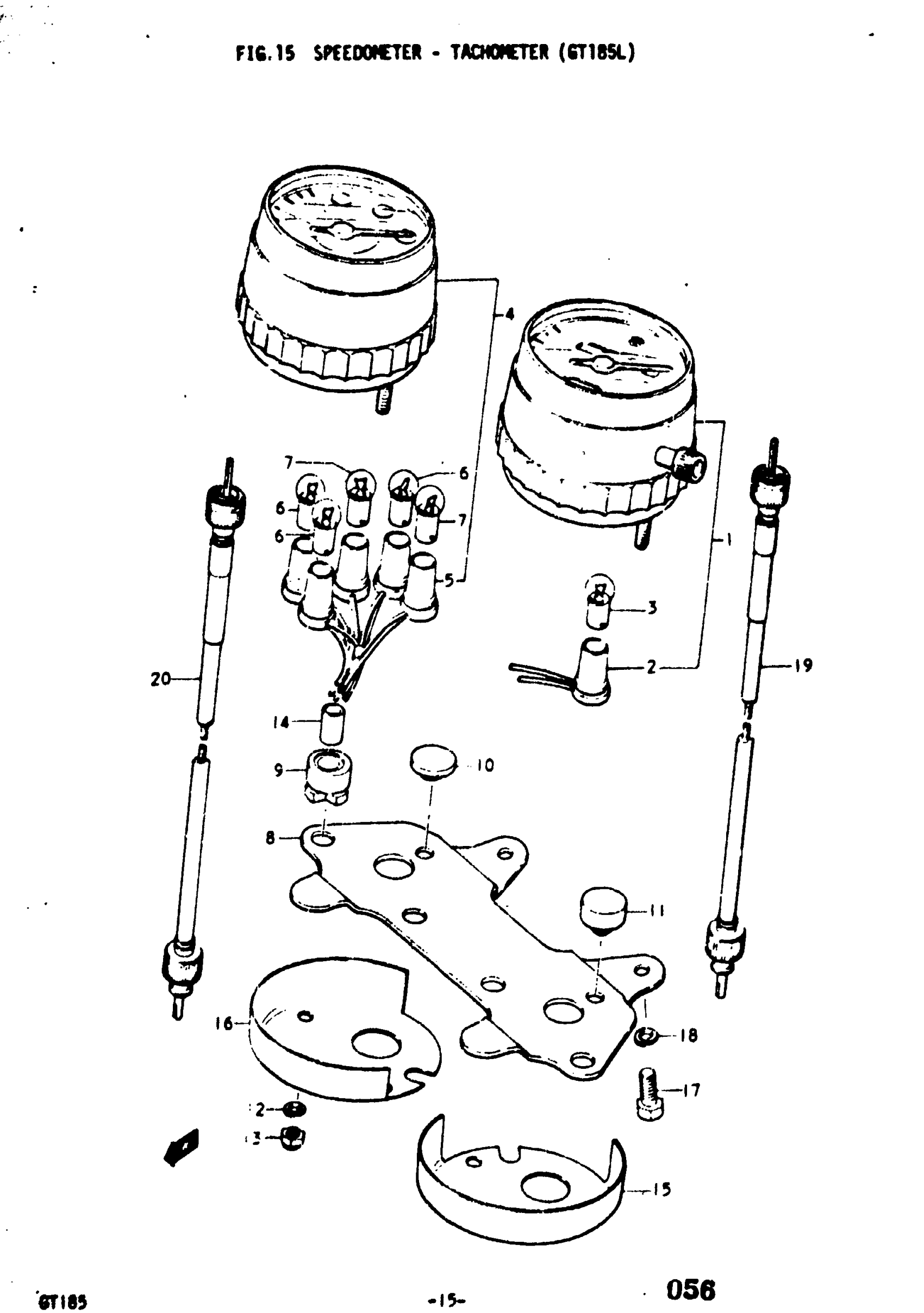

1977 Suzuki GT185 Speedometer - Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

SPEEDOMETER & TACHOMETER ASSY | TO 34100-36632 ~F.NO. 28579.; Includes Item(s) 1 - 16

34100-36631

—
Out of stock

1

SPEEDOMETER ASSY

34101-36631

—
Out of stock

2

NO DESCRIPTION AVAILABLE This part replaces 34170-36320.

34173-36300

1
Out of stock

3

BULB | 12V, 3.4W

09471-12001

1

$2.08

In stock

4

TACHOMETER ASSY | FROM 34201-36631

34201-36621

1
Out of stock

5

NO DESCRIPTION AVAILABLE This part replaces 34270-36631.

34273-36300

1
Out of stock

6

BULB | 12V, 3.4W

09471-12001

3

$2.08

In stock

7

BULB | 12V, 1.7W

09471-12004

2
Out of stock

8

BRACKET

34950-36631

—
Out of stock

9

CUSHION, A

34955-16420

4
Out of stock

10

CUSHION, B

34956-16420

1
Out of stock

11

CUSHION, C

34957-16420

1
Out of stock

12

4

$2.28

In stock

13

NUT, LICENSE HOLDER This part replaces 08313-11067.

08313-10067

4
Out of stock

14

SPACER

34972-32020

4
Out of stock

15

UNDER PLATE

34961-36320

—
Out of stock

16

UNDER PLATE

34962-36320

—
Out of stock

17

2

$2.10

In stock

18

2

$2.28

In stock

19

CABLE,SPEEDOMET This part replaces 34910-36030.

34910-18991

1
Out of stock

20

CABLE ASSY,TACH This part replaces 34940-36030.

34940-36032

1
Out of stock
