1977 Suzuki GT185 Speedometer - Tachometer Diagram

← All diagrams

Find the part on the Speedometer - Tachometer diagram for your 1977 Suzuki GT185, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

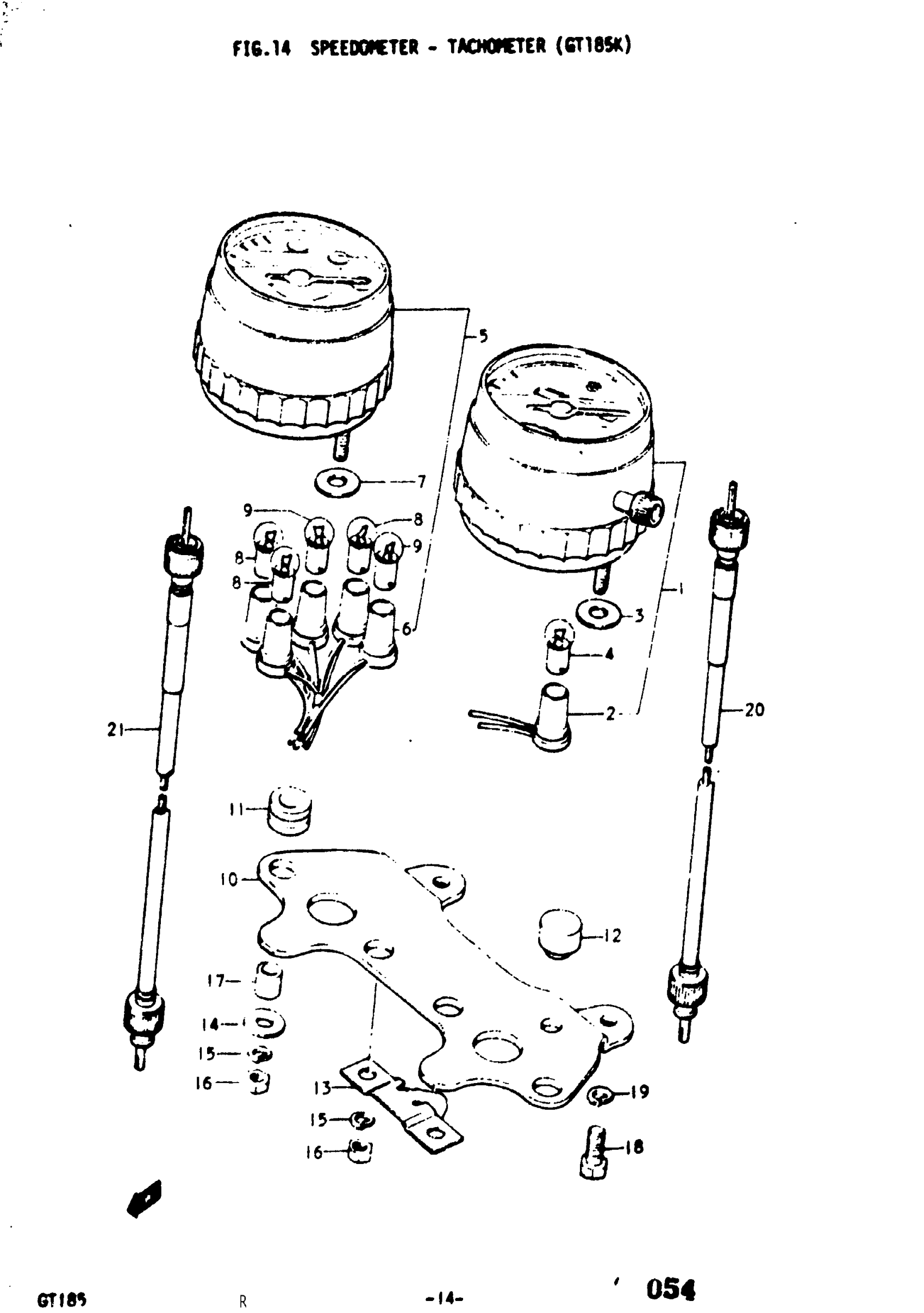

1977 Suzuki GT185 Speedometer - Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSY | Includes Item(s) 2 - 4

34101-36610

1
Out of stock

2

SOCKET

34173-36010

1
Out of stock

3

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

2
Out of stock

4

BULB | 12V, 3.4W

09471-12001

1

$2.08

In stock

5

TACHOMETER ASSY | Includes Item(s) 6 - 9

34200-36600

1
Out of stock

6

SOCKET

34270-36601

—
Out of stock

7

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

2
Out of stock

8

BULB | 12V, 3.4W

09471-12001

3

$2.08

In stock

9

BULB | 12V, 1.7W

09471-12004

2
Out of stock

10

BRACKET

34950-36010

1
Out of stock

11

CUSHION, A

34955-28010

4
Out of stock

12

CUSHION, B

34956-28011

1
Out of stock

13

CLIP, CORD

34961-28011

—
Out of stock

14

WASHER (5.5X16X1.2) | 5.5X16X1.2 This part replaces 09160-05017.

09160-05043

2
Out of stock

15

LOCK WASHER This part replaces 08321-21058.

08321-0105A

4
Out of stock

16

NUT This part replaces 08311-31058.

08310-00057

4
Out of stock

17

SPACER

34972-28010

4
Out of stock

18

2

$2.10

In stock

19

2

$2.28

In stock

20

CABLE,SPEEDOMET This part replaces 34910-36030.

34910-18991

1
Out of stock

21

CABLE ASSY,TACH This part replaces 34940-36030.

34940-36032

1
Out of stock
