1977 Suzuki GT185 Speedometer - Tachometer (GT185M Diagram

← All diagrams

Find the part on the Speedometer - Tachometer (GT185M diagram for your 1977 Suzuki GT185, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

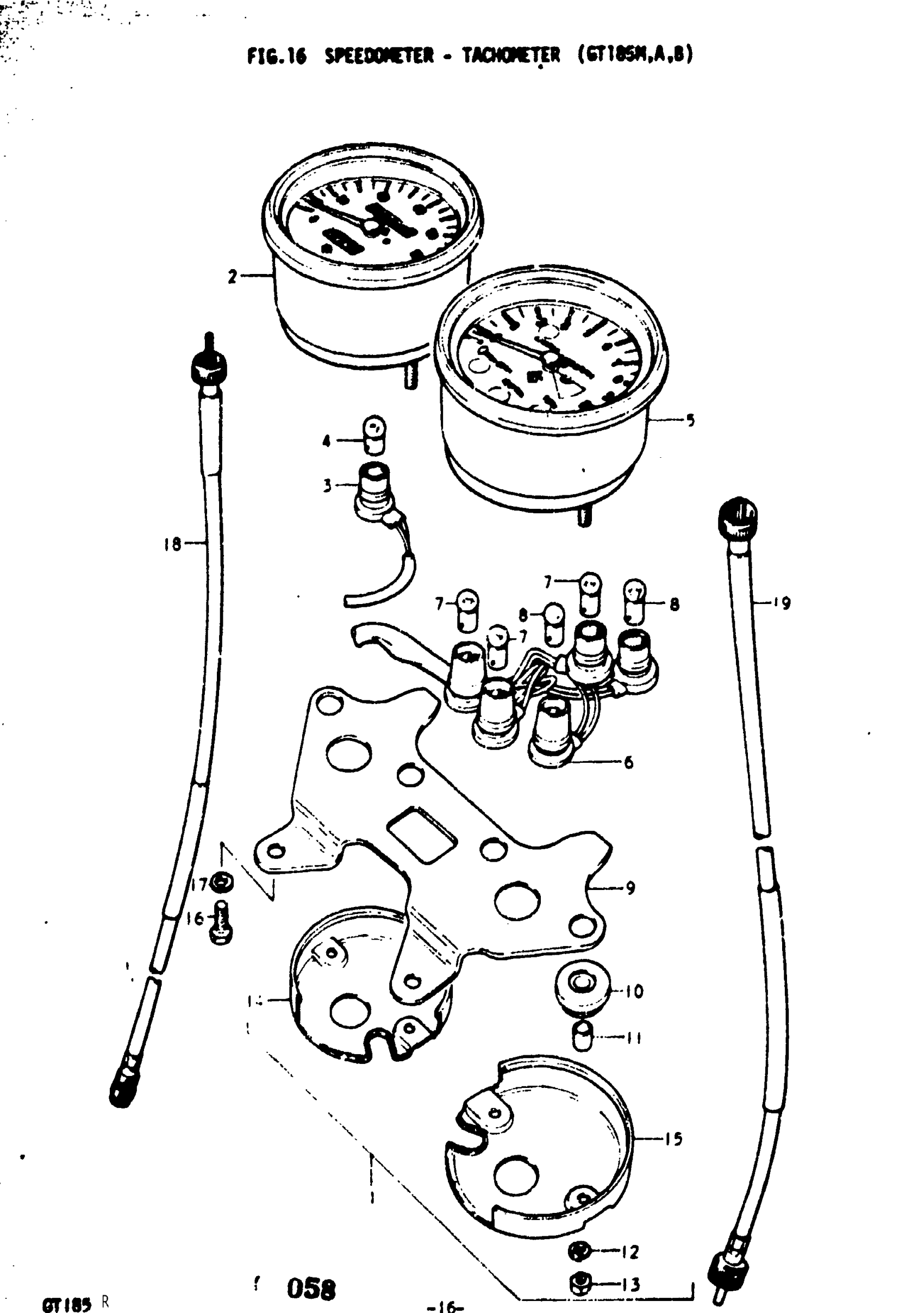

1977 Suzuki GT185 Speedometer - Tachometer (GT185M Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER & TACHOMETER ASSY | M; TO 34100-36633

34100-36632

—
Out of stock

1

SPEEDOMETER & TACHOMETER ASSY | A; TO 34100-36634

34100-36633

—
Out of stock

1

NO DESCRIPTION AVAILABLE | B; Includes Item(s) 2 - 15 This part replaces 34100-36636.

34100-36654

1
Out of stock

2

SPEEDOMETER ASSY | M; TO 34101-36633

34101-36632

—
Out of stock

2

SPEEDOMETER ASSY | A

34101-36633

1
Out of stock

2

SPEEDOMETER ASSY | B

34101-36345

—
Out of stock

3

NO DESCRIPTION AVAILABLE | M,A,B This part replaces 34170-36320.

34173-36300

1
Out of stock

4

1

$2.08

In stock

5

TACHOMETER ASSY | M; TO 34201-36622 This part replaces 34201-36620.

34201-36624

1
Out of stock

5

TACHOMETER ASSY | A; FROM 34201-36622

34201-36624

1
Out of stock

5

TACHOMETER ASSY | B

34201-36625

1
Out of stock

6

NO DESCRIPTION AVAILABLE | M,A,B This part replaces 34270-36631.

34273-36300

1
Out of stock

7

3

$2.08

In stock

8

BULB | M,A,B; 12V, 1.7W

09471-12004

2
Out of stock

9

BRACKET | M,A,B

34950-36632

1
Out of stock

10

CUSHION | M,A,B

34955-36321

4
Out of stock

11

SPACER | M,A,B

34970-36321

4
Out of stock

12

LOCK WASHER | M,A This part replaces 08321-21058.

08321-0105A

4
Out of stock

13

NUT | M,A This part replaces 08313-11057.

08313-1005A

4
Out of stock

13

NUT | B This part replaces 08311-11058.

08310-00057

4
Out of stock

14

UNDER COVER, SPEEDOMETER | M,A,B This part replaces 34961-36321.

34961-36322

1
Out of stock

15

UNDER COVER, TACHOMETER | M,A,B This part replaces 34962-36321.

34962-36322

1
Out of stock

17

2

$2.28

In stock

18

CABLE,SPEEDOMET | M,A,B This part replaces 34910-36030.

34910-18991

1
Out of stock

19

CABLE ASSY,TACH | M,A,B This part replaces 34940-36030.

34940-36032

1
Out of stock
